Anvil 0310070800 2 in Malleable Iron Cross Class 150 Trap

Plumbing cross for four-way connections

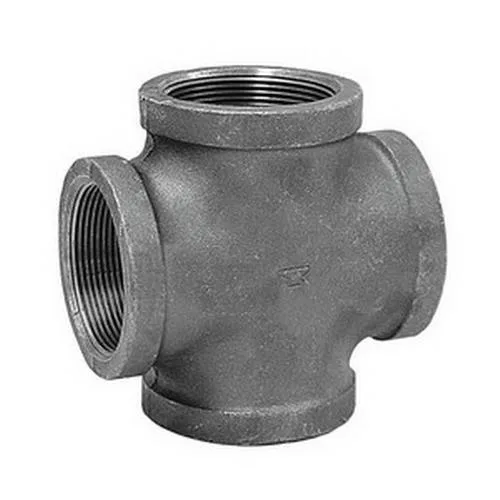

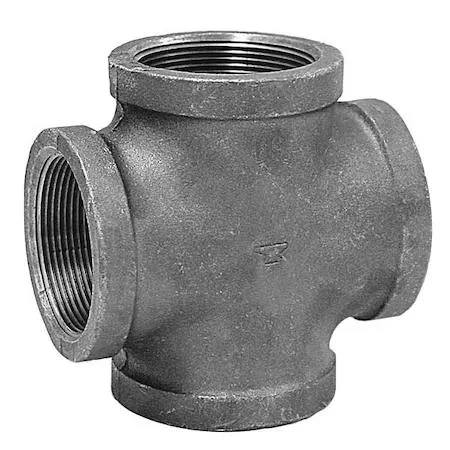

The Anvil 0310070800 is a malleable iron cross fitting designed to join four sections of 2-inch Schedule 40 pipe in a plumbing system. Its female NPT threads on all four ports accept standard male-threaded pipe or nipples without adapters. The Class 150 pressure rating supports residential and light-commercial drainage or low-pressure fluid lines. Installers who need a single junction to split or combine flow in four directions will use this component.

Fits Schedule 40 pipe with NPT threads

Each of the four ports is a 2-inch female NPT connection, so the cross threads directly onto male-ended Schedule 40 pipe or standard nipples. No soldering, gluing or special tools are required beyond pipe wrenches and thread sealant. The fitting occupies the space of a single junction, eliminating the need for multiple tees and extra pipe lengths when a four-way branch is required. It does not suit press-fit, compression or push-to-connect systems.

Class 150 iron handles 300 psi at 150 °F

Malleable iron construction resists cracking under mechanical stress and thermal cycling better than cast iron. The Class 150 rating means the cross withstands up to 300 psi at a maximum operating temperature of 150 °F, covering typical hot-water return lines and pumped drainage. Threaded joints may weep if sealant degrades, so periodic inspection is normal practice. The black finish is the standard mill coating; no additional corrosion protection is included.
