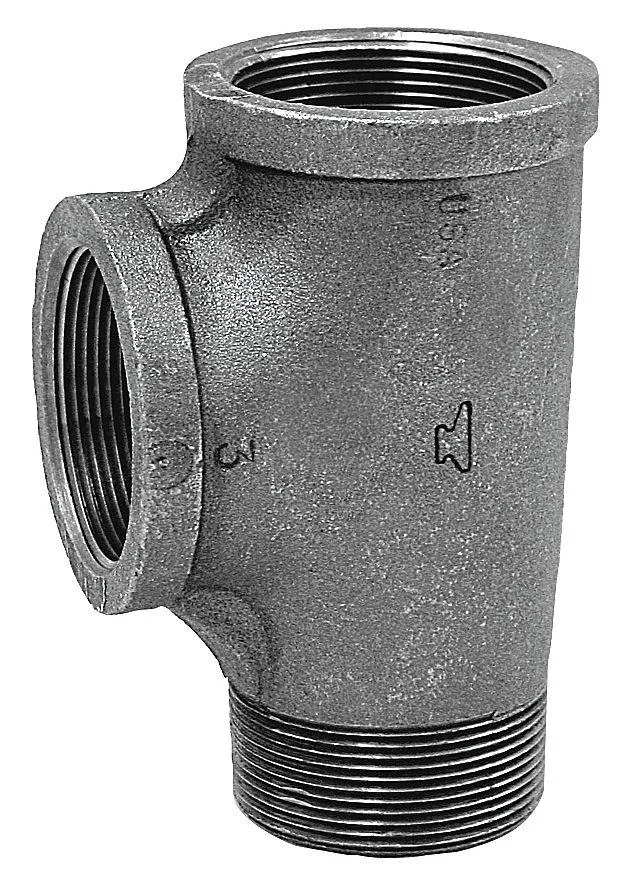

Malleable iron street tee fitting with threaded connections

Anvil

Anvil 0310061809 Street Tee Trap Class 150

SKU CH-0VCK-PJ956 MPN 0310061809

Malleable iron street tee rated for 300 psi at 150 °F and 150 psi saturated steam

  • TypeDrain Components
  • Malleable iron construction rated for 300 psi maximum pressure
  • Class 150 street tee handles saturated steam up to 150 psi
  • Operates reliably from -20 to 350 degrees Fahrenheit
  • FNPT x MNPT x FNPT connections simplify threaded pipe assembly
  • Meets ASME B16.3 and UL/FM approval standards

Anvil Malleable Iron Street Tee Class 150

This Anvil 0310061809 street tee is a malleable iron pipe fitting built for Class 150 service. It suits installers and maintenance crews joining 3/8 in piping in steam, water, oil or gas systems. The FNPT x MNPT x FNPT connection layout lets you branch a line while changing direction in a single fitting.

Class 150 rating with 300 psi cold working pressure

The fitting carries a 300 psi rating at 150 Degrees F and a saturated steam pressure rating of 150 psi. It meets ASME B 16.3 and holds UL and FM approvals. These markings confirm the tee is tested for the pressure and temperature demands of standard Class 150 piping jobs.

Check 3/8 in NPT threads

Verify that your existing pipe and mating fittings use 3/8 in NPT threads to match the FNPT and MNPT ends. Confirm the system operating temperature stays within the -20 Degrees to 350 Degrees F range and that pressure does not exceed the 300 psi cold or 150 psi steam limits. This tee is not for buyers who need a different pipe size, a different pressure class or a fitting without male-threaded outlets.

Highlights

  • Malleable iron construction rated for 300 psi maximum pressure
  • Class 150 street tee handles saturated steam up to 150 psi
  • Operates reliably from -20 to 350 degrees Fahrenheit
  • FNPT x MNPT x FNPT connections simplify threaded pipe assembly
  • Meets ASME B16.3 and UL/FM approval standards

Specifications

TypeDrain Components
BrandAnvil
Model0310061809

Questions about this item

Will the malleable iron fitting need periodic replacement due to corrosion?

Malleable iron resists corrosion in typical plumbing service, so the 0310061809 street tee does not require scheduled replacement under normal conditions.

What pressure limit is reached first during continuous operation at elevated temperature?

The Class 150 rating allows 300 psi at 150 °F and 150 psi for saturated steam; the lower steam pressure becomes the limiting factor when steam is present.

How much heat does the fitting radiate when hot water circulates all day?

The fitting itself generates no heat; it simply conducts the fluid temperature, staying within the -20 °F to 350 °F service range.
