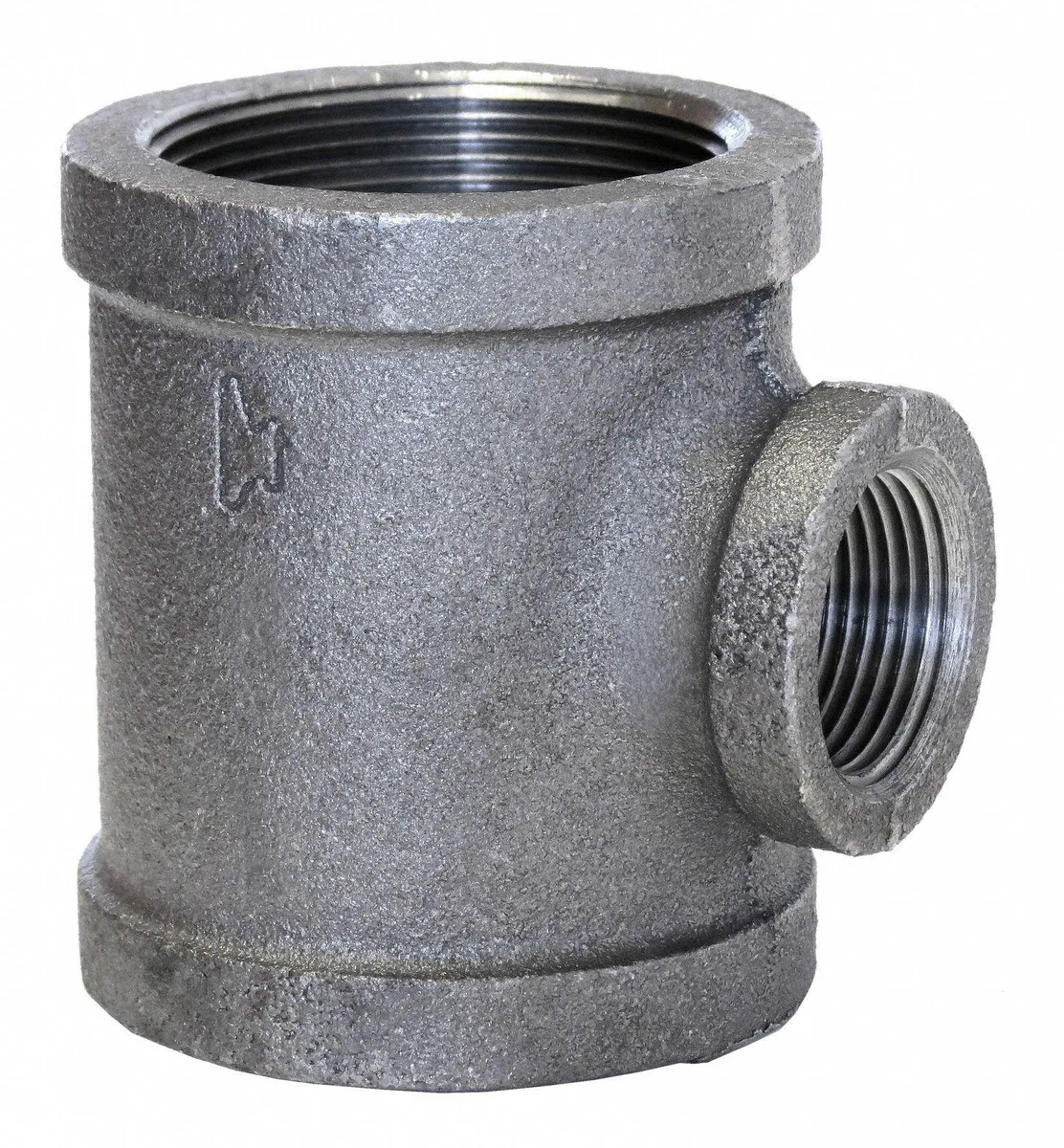

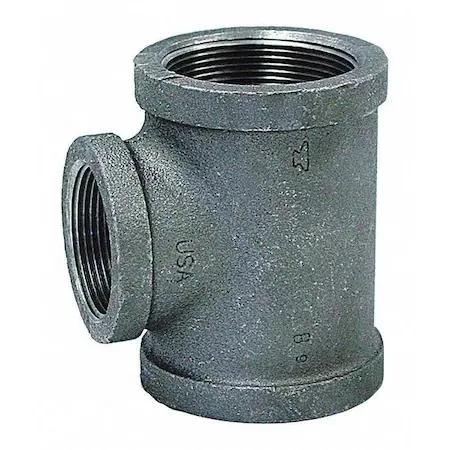

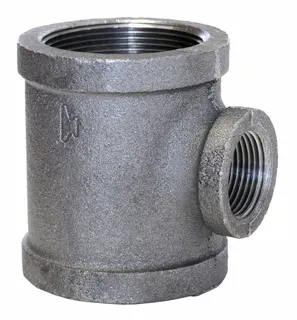

Anvil 0310049408 Reducing Tee 2" x 2" x 3/4" FNPT

Reducing Tee 2" x 2" x 3/4" FNPT

The Anvil 0310049408 is a malleable iron reducing tee designed for plumbing drain and trap installations. It connects two 2-inch pipes to a 3/4-inch branch using FNPT threads on all three ports. This component suits contractors and maintenance teams assembling or modifying Class 150 piping systems. It is not for buyers who need a straight coupling or a different branch size than 3/4-inch.

Capacity and headroom

The fitting handles a maximum pressure of 300 psi at 150 degrees F and a saturated steam pressure of 150 psi. Its temperature range spans -20 degrees to 150 degrees F, covering typical hot and cold water distribution. The Class 150 rating defines the pressure envelope; beyond 300 psi the component reaches its design limit and should not be used. It meets ASME B 16.3 dimensional and material requirements for this service class.

UL Listed and FM Approved standards

This tee carries UL Listed and FM Approved markings, confirming compliance with recognised safety and performance benchmarks for plumbing components. These certifications support specification in commercial and industrial projects where code acceptance is required. The malleable iron body and FNPT connections follow the ASME B 16.3 standard for threaded fittings. Installers should verify local code acceptance for the intended application.
