Anvil
Anvil 0310040407 reducing tee trap

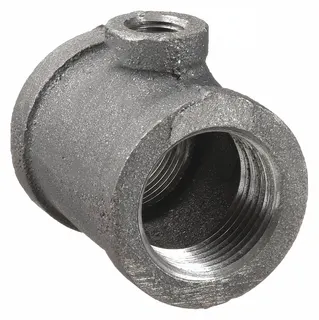

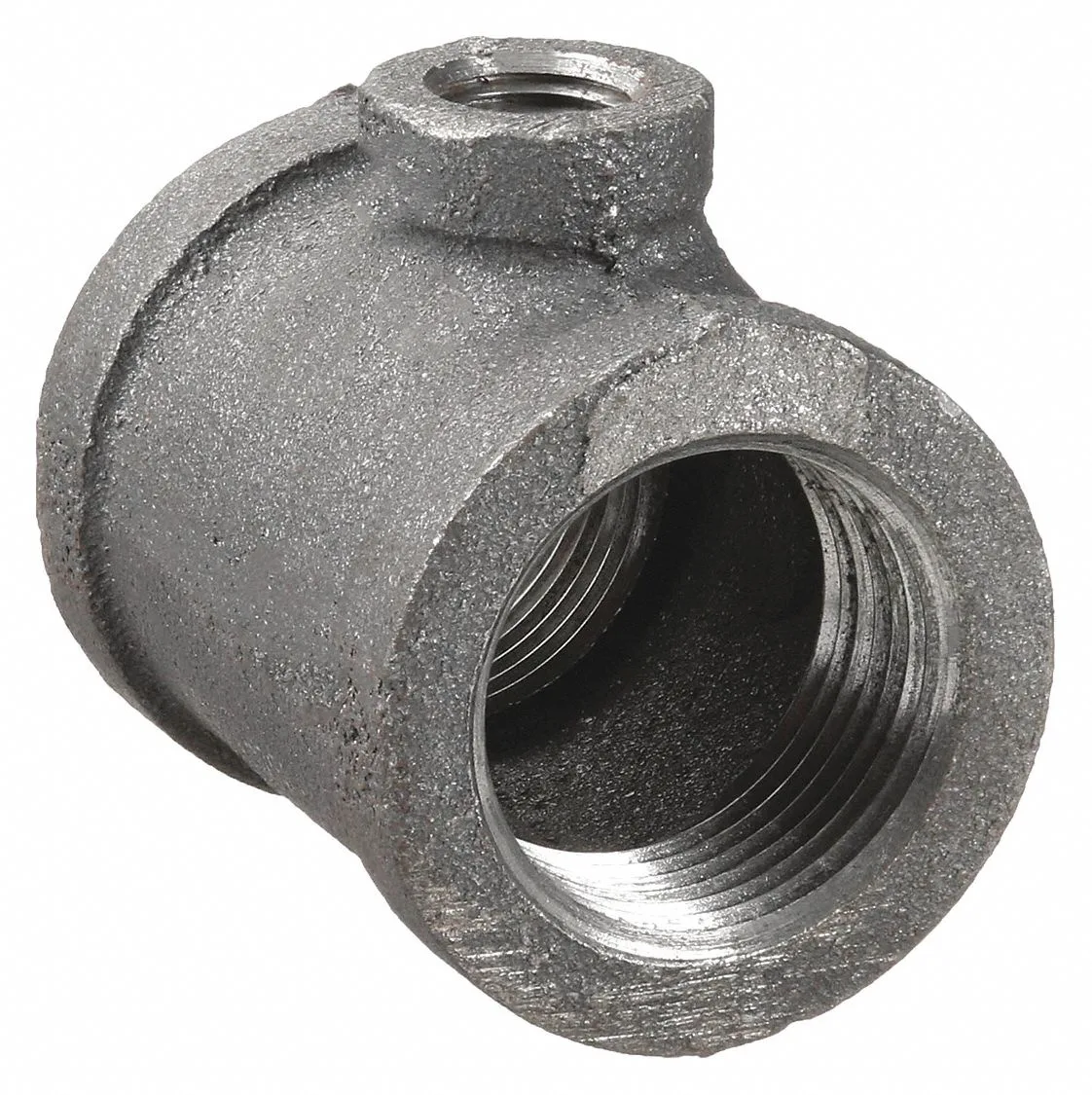

Malleable iron reducing tee 0310040407 with three female NPT ports rated for 300 psi at 150 °F
- TypeDrain Components
- Malleable iron construction resists corrosion and mechanical stress
- Class 150 rating handles 300 psi at 150 °F for reliable service
- Reducing tee design joins 1 in and 1/4 in NPT lines in one fitting
- Female NPT threads on all three ports simplify pipe assembly
- Schedule 40 compatibility suits standard residential and commercial plumbing systems
Reducing Tee for Schedule 40 Pipe
The Anvil 0310040407 is a malleable iron reducing tee rated Class 150 for Schedule 40 piping systems. It connects a 1-inch female NPT run with a 1/4-inch female NPT branch. Plumbers and maintenance engineers use it to create a reduced outlet in water, oil or gas lines.
Flow Capacity and Pressure Limit
The fitting handles a maximum operating pressure of 300 psi at 150 degrees Fahrenheit. It provides full bore flow on the 1-inch run while the 1/4-inch branch restricts volume for instrumentation or drain points. The Class 150 rating defines the pressure ceiling; exceeding it risks joint failure.
Thermal and Installation Behaviour
Malleable iron absorbs system heat without deforming at the rated temperature. The black finish resists corrosion in typical indoor environments. Threaded NPT joints seal with standard pipe compound or tape, requiring no specialised tools or power during assembly.
Highlights
- Malleable iron construction resists corrosion and mechanical stress
- Class 150 rating handles 300 psi at 150 °F for reliable service
- Reducing tee design joins 1 in and 1/4 in NPT lines in one fitting
- Female NPT threads on all three ports simplify pipe assembly
- Schedule 40 compatibility suits standard residential and commercial plumbing systems
Specifications
| Type | Drain Components |
|---|---|
| Brand | Anvil |
| Model | 0310040407 |
Questions about this item
Will the 150 class malleable iron tee mate cleanly with my existing Schedule 40 piping?
The tee is built for Schedule 40 pipe and uses 1 in and 1/4 in female NPT threads that match standard iron pipe dimensions.
How can I verify the joint holds pressure after assembly?
Apply thread sealant, tighten to the recommended torque, then pressurise the system up to 300 psi at 150 °F and check for leaks at each port.
Does the box include any gaskets or sealant, or must I supply them?
Only the black malleable iron reducing tee is supplied; thread sealant or tape and any required gaskets are purchased separately.
