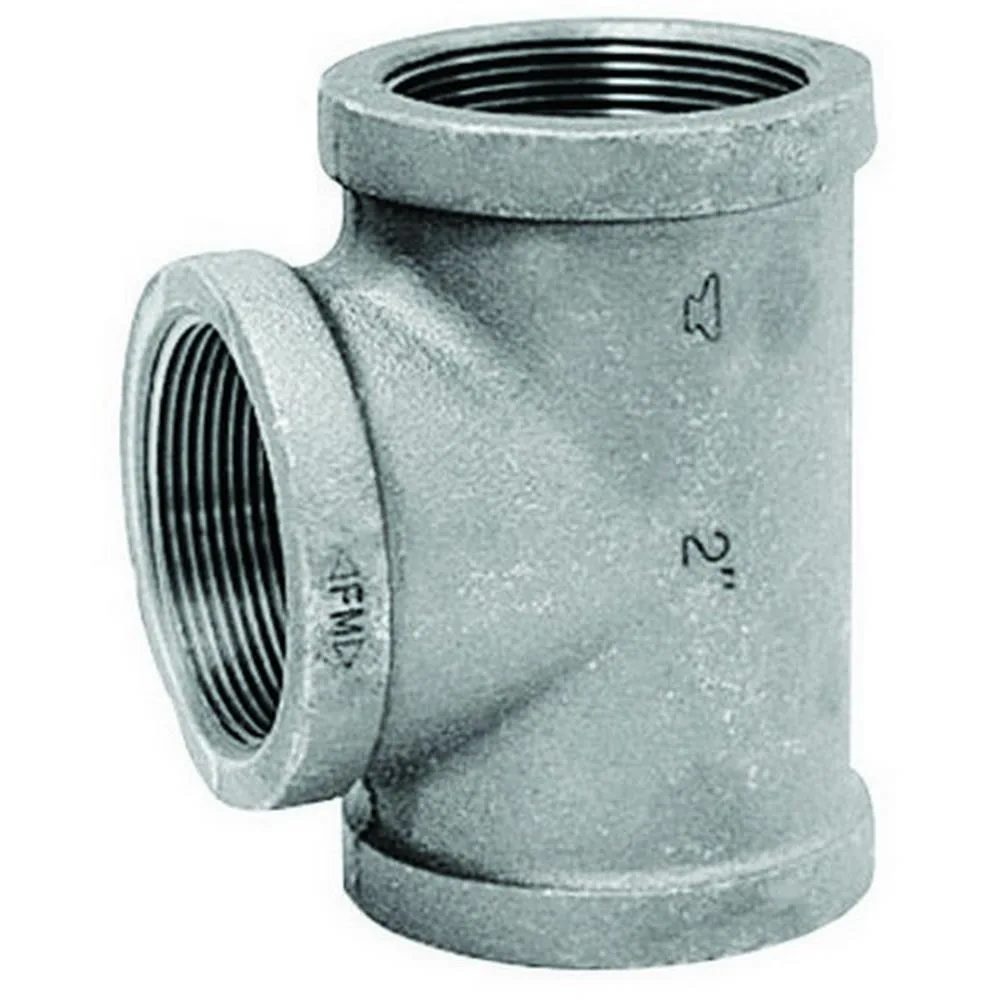

Anvil malleable iron tee trap, class 150, 300 psi rating

Anvil

Anvil 0310030002 malleable iron tee trap class 150 300 psi

SKU CH-YHXE-6XYE7 MPN 0310030002

A malleable-iron tee drain fitting rated to 300 psi at 150 °F and 150 psi saturated steam at 350 °F, meeting ASME B 16.3

  • TypeDrain Components
  • Malleable iron construction resists corrosion and mechanical stress
  • Class 150 rating handles 300 psi at 150 °F for reliable service
  • ASME B 16.3 compliance confirms dimensional and material quality
  • UL and FM listings verify safety for fire-protection systems
  • Operates from -20 °F to 350 °F covering steam and chilled-water lines

Malleable Iron Tee Trap Class 150

The Anvil 0310030002 is a malleable iron tee trap built to Class 150 specifications for plumbing drainage systems. It provides a 3/4 inch FNPT connection for joining pipe runs in commercial or residential installations. The fitting handles saturated steam pressure of 150 psi at 350 degrees Fahrenheit.

Sustained pressure and temperature performance

Rated for a maximum pressure of 300 psi at 150 degrees Fahrenheit, the fitting maintains integrity under continuous operating loads. Its service temperature range spans from -20 degrees to 350 degrees Fahrenheit, covering cold-water and steam applications. Compliance with ASME B 16.3 and UL/FM approvals confirms suitability for code-regulated piping systems.

3/4 inch FNPT connection size

The single specification that determines fit is the 3/4 inch FNPT pipe size; verify that your piping matches this thread standard before purchase. Buyers who need a different nominal pipe diameter or a male-threaded outlet cannot use this fitting. No other dimensions or thread types are offered for this model.

Highlights

  • Malleable iron construction resists corrosion and mechanical stress
  • Class 150 rating handles 300 psi at 150 °F for reliable service
  • ASME B 16.3 compliance confirms dimensional and material quality
  • UL and FM listings verify safety for fire-protection systems
  • Operates from -20 °F to 350 °F covering steam and chilled-water lines

Specifications

TypeDrain Components
BrandAnvil
Model0310030002

Questions about this item

Does the malleable iron tee trap generate noise, heat or draw power when installed in a steam line running continuously?

The tee trap is a passive pipe fitting with no moving parts, so it produces no operational noise, consumes no power and adds no heat beyond the fluid temperature inside the line.

What piping components must already be in place for the 3/4 in FNPT tee to connect and function?

You need 3/4 in male NPT threads on the adjoining pipes or fittings, plus suitable thread sealant or tape rated for 300 psi at 150 °F and 150 psi saturated steam at 350 °F.

Will the Class 150 malleable iron tee mate reliably with older ASME B16.3 fittings already in the system?

Yes, the tee meets ASME B16.3, so it threads directly onto existing Class 150 malleable iron fittings with matching 3/4 in NPT connections.
