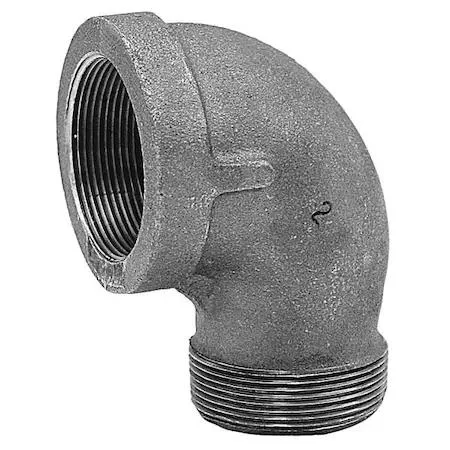

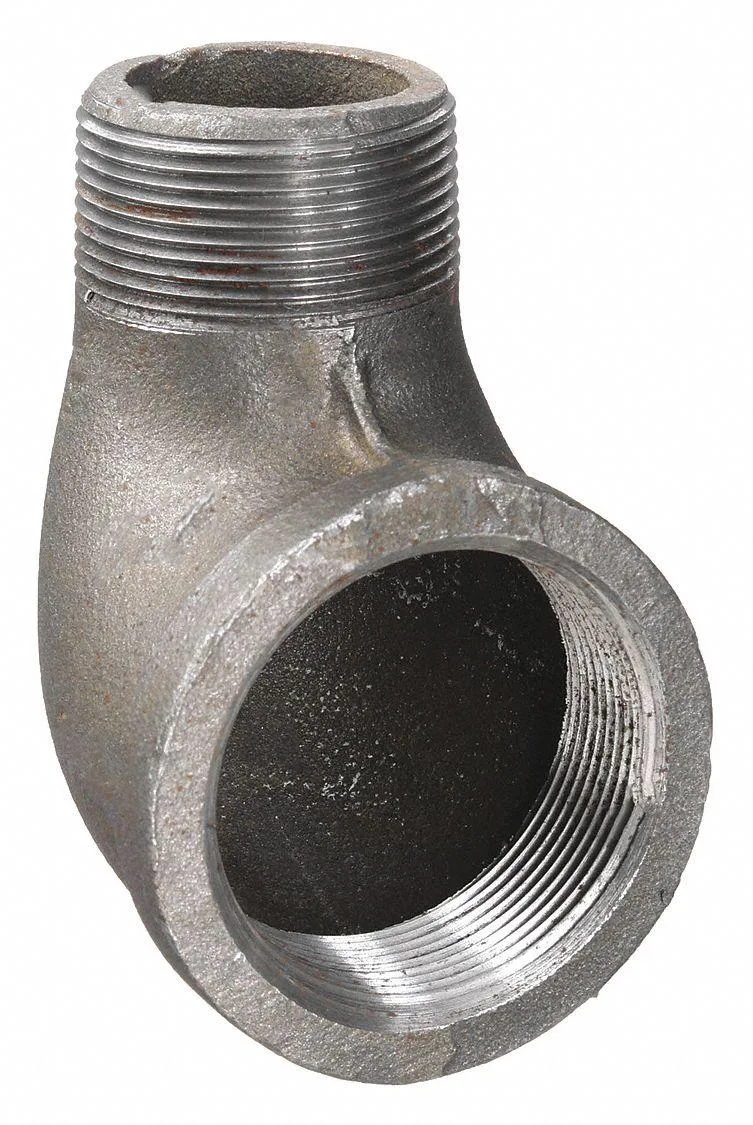

Malleable iron 90-degree reducing street elbow, threaded ends, dark metal finish

Anvil

Anvil 0310019609 90 Degree Reducing Street Elbow trap

SKU CH-E2YV-ABCG1 MPN 0310019609

Malleable iron 90-degree reducing street elbow connects 1 1/4 inch FNPT to 3/4 inch MNPT at Class 150 for drainage systems

  • TypeDrain Components
  • 90° reducing elbow redirects flow in tight spaces
  • Malleable iron construction resists cracking under stress
  • Class 150 rating handles 300 psi at 150 °F
  • Saturated steam rated to 150 psi at 350 °F
  • FNPT × MNPT threads connect dissimilar pipe sizes

Plumbing fitting for directional change

The Anvil 0310019609 is a malleable iron reducing street elbow designed for drainage systems. It connects a 1 1/4 inch female NPT thread to a 3/4 inch male NPT thread at a 90 degree angle. This Class 150 fitting suits residential and commercial plumbing installations requiring a reduction in pipe size.

Threaded ends simplify assembly

Installation uses standard FNPT and MNPT threads that tighten with common pipe wrenches. Malleable iron construction allows the threads to seat firmly without cracking under normal torque. The main risk is cross-threading the dissimilar diameters if the joint is forced before the threads engage fully.

Handles 300 psi at 150 degrees F

Rated for a maximum pressure of 300 psi at 150 degrees Fahrenheit and 150 psi saturated steam at 350 degrees Fahrenheit. The temperature range spans -20 to 350 degrees Fahrenheit. It is not suited for pressures exceeding the Class 150 rating or for fluids outside the approved temperature limits.

Highlights

  • 90° reducing elbow redirects flow in tight spaces
  • Malleable iron construction resists cracking under stress
  • Class 150 rating handles 300 psi at 150 °F
  • Saturated steam rated to 150 psi at 350 °F
  • FNPT × MNPT threads connect dissimilar pipe sizes

Specifications

TypeDrain Components
BrandAnvil
Model0310019609

Questions about this item

How can I verify the Anvil 0310019609 elbow is sealing correctly after installation?

Pressurise the line up to 300 psi at 150 °F or 150 psi saturated steam at 350 °F; no leaks at the FNPT x MNPT joints confirm the Class 150 malleable iron fitting is working as intended.

What comes with the Anvil 0310019609 reducing street elbow and what must I supply?

The box contains the single 90-degree 1 1/4 in x 3/4 in malleable iron elbow; you must provide compatible NPT pipe nipples, thread sealant or tape, and any required hangers or supports.

Which version of the Anvil 0310019609 should I choose for a 300 psi water line at 150 °F?

This model is rated Class 150 for 300 psi at 150 °F and meets ASME B16.3, so it suits that service; select a different size if your pipe diameters differ from 1 1/4 in x 3/4 in.
