Malleable iron 90-degree reducing street elbow 3/4 by 1/2 FNPT x MNPT

Anvil

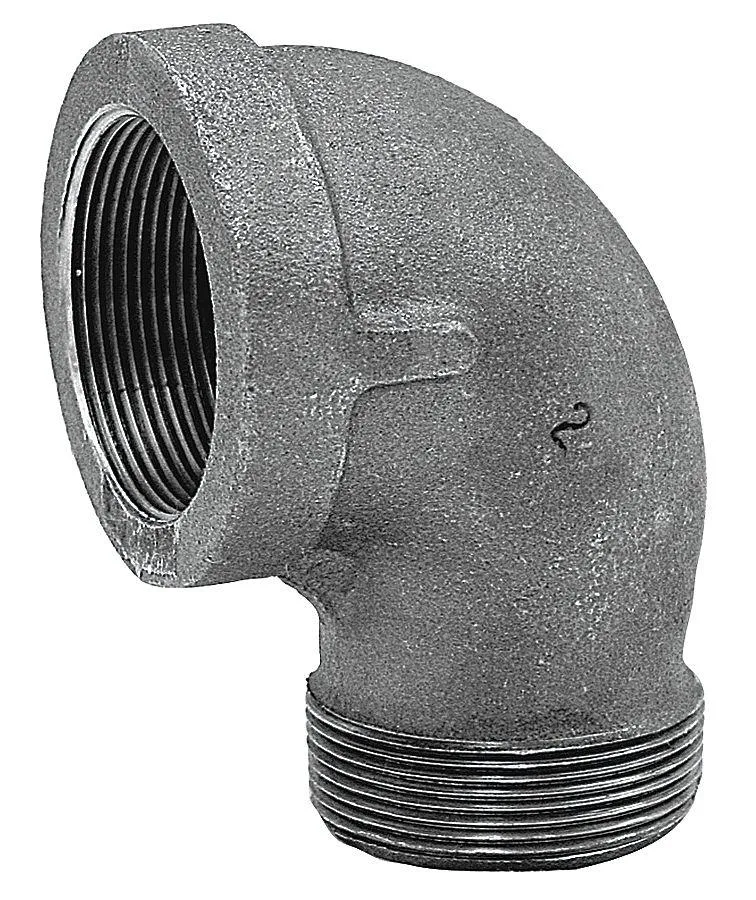

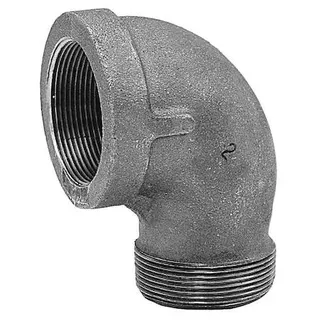

Anvil 0310019005 Malleable Iron 90° Reducing Street Elbow Class 150 3/4 x 1/2 FNPT x MNPT

SKU CH-CY3M-TBXYM MPN 0310019005

Malleable iron 90° reducing street elbow connects 3/4 in FNPT to 1/2 in MNPT for Class 150 drain systems rated to 300 psi at 150°F and 150 psi saturated steam at 350°F

  • TypeDrain Components
  • Reduces pipe size from 3/4 in to 1/2 in for compact installations
  • Malleable iron construction withstands 300 psi at 150 °F for reliable service
  • 90° street elbow connects FNPT to MNPT without extra fittings
  • Class 150 rating supports 150 psi saturated steam at 350 °F
  • Meets ASME B16.3 and UL/FM standards for code compliance

Plumbing fitting for drain systems

The Anvil 0310019005 is a malleable iron reducing street elbow designed for drain components. It connects a 3/4 in female NPT thread to a 1/2 in male NPT thread at a 90 degree angle. The fitting meets ASME B 16.3 standards and carries UL and FM approvals for use in plumbing installations.

Class 150 iron construction

Malleable iron provides structural rigidity for the Class 150 rating. The FNPT x MNPT connection allows direct joining of different pipe sizes without a separate coupling. Threaded ends enable installation with standard pipe wrenches and thread sealant in drain and trap assemblies.

Rated for 300 psi at 150 Degrees F

The fitting withstands a maximum pressure of 300 psi at 150 Degrees F and saturated steam pressure of 150 psi at 350 Degrees F. Operating temperature range spans from -20 Degrees to 350 Degrees F. No moving parts or power requirements mean silent operation with no energy draw.

Highlights

  • Reduces pipe size from 3/4 in to 1/2 in for compact installations
  • Malleable iron construction withstands 300 psi at 150 °F for reliable service
  • 90° street elbow connects FNPT to MNPT without extra fittings
  • Class 150 rating supports 150 psi saturated steam at 350 °F
  • Meets ASME B16.3 and UL/FM standards for code compliance

Specifications

TypeDrain Components
BrandAnvil
Model0310019005

Questions about this item

What does the Class 150 and ASME B 16.3 rating mean for pressure limits?

The fitting handles 300 psi at 150 °F and 150 psi saturated steam at 350 °F per ASME B 16.3.

What pipe threads are needed to install this elbow?

One end takes 3/4 in FNPT, the other 1/2 in MNPT; match those thread sizes exactly.

How do you seal the threads without cracking the malleable iron?

Apply PTFE tape or pipe dope on male threads only, hand-tighten, then turn one to two full turns with a wrench — no more.
