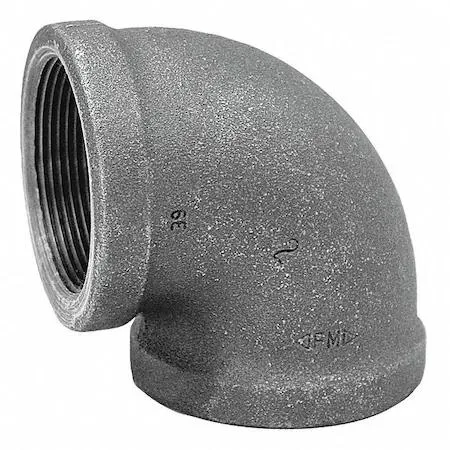

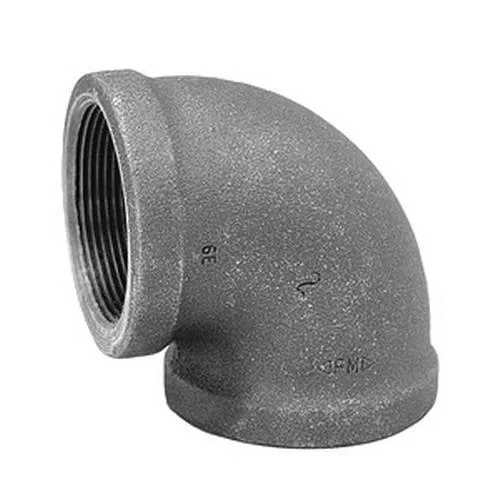

Black malleable iron 90 degree elbow Class 150 trap

Anvil

Anvil 0310002001 Malleable Iron 90 Degree Elbow Class 150 Trap

SKU CH-06CZ-REVAN MPN 0310002001

Malleable iron 90-degree elbow rated Class 150 with female NPT connections for Schedule 40 pipe systems

  • TypeDrain Components
  • Malleable iron construction withstands 300 psi working pressure
  • 90 degree elbow redirects flow in tight piping layouts
  • Class 150 rating matches Schedule 40 system requirements
  • Female NPT threads on both ends simplify installation
  • Suitable for service up to 150 degrees Fahrenheit

2-1/2 Inch Malleable Iron Elbow

This 90 degree elbow connects two 2-1/2 inch female NPT pipes in plumbing and hydronic systems. It is made from malleable iron with a black finish and rated for Class 150 service. The fitting suits residential and light commercial installations that require a standard directional change.

Class 150 Pressure Rating Under Load

The elbow withstands a maximum operating pressure of 300 psi at 150 degrees Fahrenheit during continuous service. Malleable iron construction resists cracking when the system cycles between pressure and temperature extremes. It maintains seal integrity on Schedule 40 pipe without deformation over long heating seasons.

Female NPT Threads For Direct Assembly

Both ends feature 2-1/2 inch female NPT threads so the elbow threads directly onto male pipe ends without adapters. The black coating provides baseline corrosion resistance in dry or insulated runs. Installers should apply appropriate thread sealant to ensure leak-free joints on the first make-up.

Highlights

  • Malleable iron construction withstands 300 psi working pressure
  • 90 degree elbow redirects flow in tight piping layouts
  • Class 150 rating matches Schedule 40 system requirements
  • Female NPT threads on both ends simplify installation
  • Suitable for service up to 150 degrees Fahrenheit

Specifications

TypeDrain Components
BrandAnvil
Model0310002001

Questions about this item

How much heat can the 300 psi Class 150 malleable iron elbow handle during continuous service?

The fitting is rated for a maximum operating temperature of 150 degrees F at its 300 psi pressure rating, suitable for standard hot water or steam lines.

What pipe schedule and thread type must I already have to install this 2-1/2 inch NPT elbow?

It requires Schedule 40 pipe with 2-1/2 inch male NPT threads on both ends for a proper seal.

Will this 90-degree elbow connect to older galvanised or black iron pipe already in the system?

Yes, the female NPT threads mate with any standard 2-1/2 inch male NPT pipe, including existing galvanised or black iron installations.
