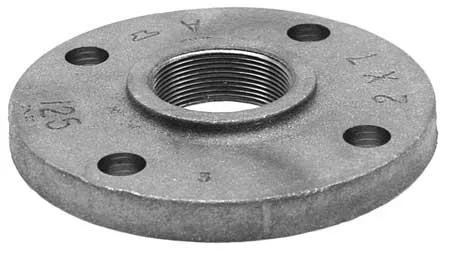

Cast iron reducing companion flange, 2 inch threaded connection, Class 125

Anvil

Anvil 0308008002 Cast Iron Reducing Companion Flange Trap 2 in Class 125

SKU CH-67J6-QX0YQ MPN 0308008002

Cast iron reducing companion flange with threaded FNPT connection, rated Class 125 for 175 psi at 150 °F and UL/FM approved to ASME B16.4

  • TypeDrain Components
  • Cast iron construction resists corrosion for long service life
  • Threaded flange connection enables secure pipe joining
  • Class 125 rating supports 175 psi working pressure
  • Meets ASME B16.4 and UL/FM standards for code compliance
  • Operates reliably from -20 to 150 degrees Fahrenheit

Product Identity

The Anvil 0308008002 is a cast iron reducing companion flange designed for threaded pipe connections. It serves plumbers and facility engineers who need a Class 125 rated transition fitting for two-inch nominal pipe size in drainage or low-pressure steam systems.

Build Integration

The flange mates a flanged joint to a female NPT thread, allowing direct attachment to threaded pipe without welding. Its four-hole bolt pattern aligns with standard Class 125 flanges, while the cast iron body handles saturated steam at 125 psi and water pressure up to 175 psi between minus 20 and 150 degrees Fahrenheit.

Included Benefits

The fitting arrives ready for installation with no additional gaskets or hardware supplied. Compliance with ASME B16.4 and UL/FM approvals means inspectors recognise the component for fire-protection and general plumbing service, reducing the need for field verification on regulated jobs.

Highlights

  • Cast iron construction resists corrosion for long service life
  • Threaded flange connection enables secure pipe joining
  • Class 125 rating supports 175 psi working pressure
  • Meets ASME B16.4 and UL/FM standards for code compliance
  • Operates reliably from -20 to 150 degrees Fahrenheit

Specifications

TypeDrain Components
BrandAnvil
Model0308008002

Questions about this item

What is the maximum pressure the Anvil 0308008002 flange can handle at its 150 °F temperature limit?

The cast iron reducing companion flange is rated for 175 psi at -20 °F to 150 °F, with a saturated steam pressure rating of 125 psi.

How hot does the flange get during continuous steam service at 125 psi?

The temperature range is -20 °F to 150 °F; at the 125 psi saturated steam rating the flange will operate at the corresponding steam temperature within that range.

Which mating flange standard and bolt pattern must the existing pipework match for the 2 in Class 125 connection?

The flange conforms to ASME B16.4 Class 125 with a 7 1/2 in outside diameter and four bolt holes for the flanged end, while the other end is a 2 in FNPT threaded connection.
