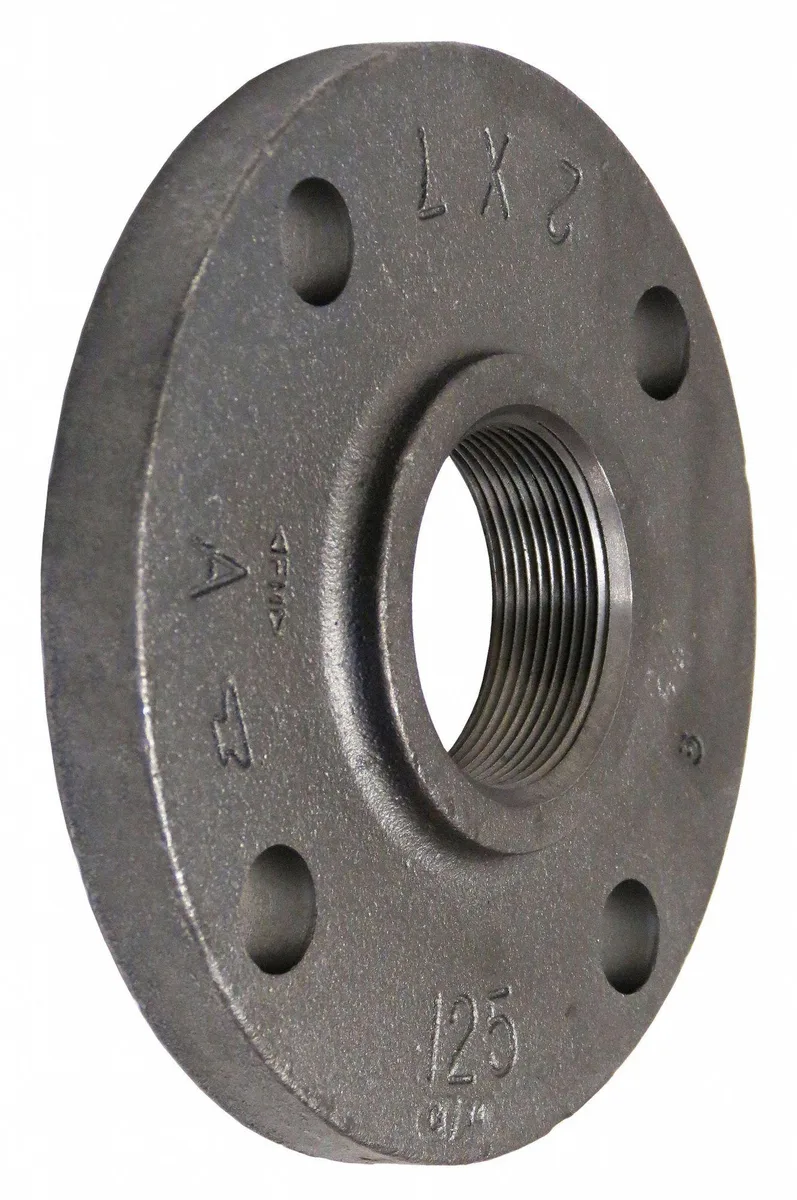

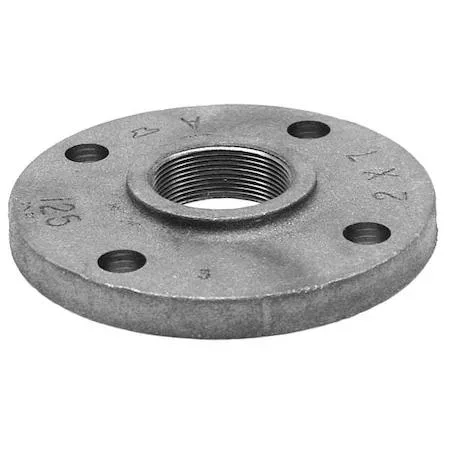

Cast iron reducing companion flange, flanged by FNPT, four bolt holes

Anvil

Anvil 0308007202 1-1/2" Flanged x FNPT Cast Iron Trap

SKU CH-51CX-CR5S3 MPN 0308007202

A 1-1/2 inch flanged by FNPT cast iron trap rated for 175 psi maximum operating pressure and Class 125 service

  • TypeDrain Components
  • MaterialHAWA
  • Cast iron construction resists corrosion for long service life
  • Flanged by FNPT connection simplifies pipe installation
  • Class 125 rating handles 175 psi maximum operating pressure
  • Operates reliably from -20 to 150 degrees Fahrenheit
  • Four bolt holes provide secure flange mounting

Anvil 1-1/2" Cast Iron Flanged Trap

This Anvil reducing companion flange connects a 1-1/2 inch nominal pipe using a flanged by FNPT configuration. The cast iron body carries a Class 125 rating with a 175 psi maximum operating pressure. It spans a 6 inch flange outside diameter and 6 inch overall length with four bolt holes for secure mounting.

Suits Class 125 piping to 175 psi

Installers needing higher pressure ratings or different flange drilling patterns should select another component. Systems requiring non-cast-iron materials or alternate end connections will not match this fitting. The temperature range covers minus 20 to 150 degrees Fahrenheit for standard service.

Highlights

  • Cast iron construction resists corrosion for long service life
  • Flanged by FNPT connection simplifies pipe installation
  • Class 125 rating handles 175 psi maximum operating pressure
  • Operates reliably from -20 to 150 degrees Fahrenheit
  • Four bolt holes provide secure flange mounting

Specifications

TypeDrain Components
MaterialHAWA
BrandAnvil
Model0308007202

Questions about this item

Will the 1-1/2 inch flanged connection mate with my existing Class 125 cast iron piping?

Yes, the flange is drilled with four bolt holes to the Class 125 pattern and rated for 175 psi at 150 degrees F, matching standard cast iron piping dimensions.

How can I verify the joint is leak-free after installation?

Pressurise the system up to the 175 psi rating and inspect the four bolt holes and the FNPT threads for any seepage; no leakage confirms a proper seal.

Does the package include the four bolts and gasket needed for the flanged end?

The reducing companion flange is supplied as a single cast iron component; bolts, nuts and a full-face gasket must be purchased separately.
