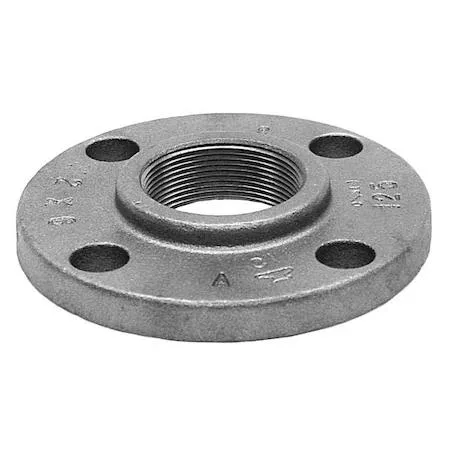

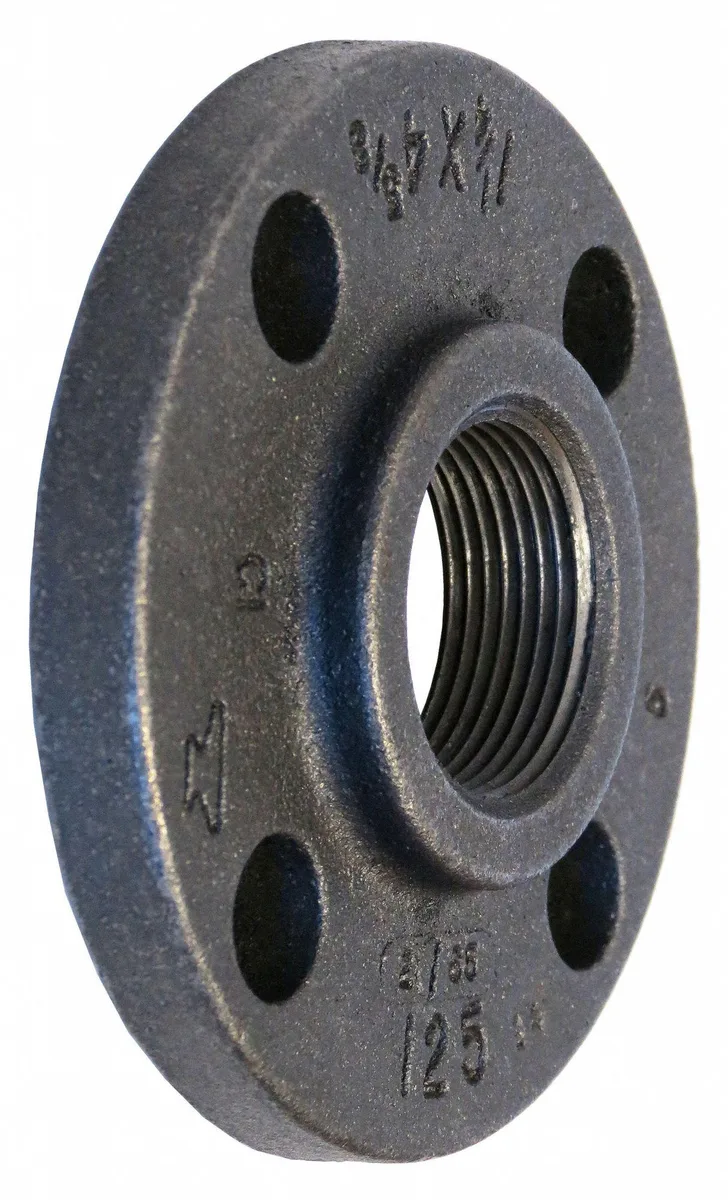

3/4 inch cast iron threaded flange trap, faced and drilled, dark metal finish

Anvil

Anvil 0308002005 3/4" Cast Iron Threaded Flange Trap

SKU CH-CZTZ-ZPJW0 MPN 0308002005

A 3/4-inch cast iron threaded flange trap rated for 175 psi and temperatures from -20 to 150 degrees F

  • TypeDrain Components
  • MaterialHAWA
  • Cast iron construction resists corrosion for long service life
  • Class 125 rating handles 175 psi maximum operating pressure
  • Faced and drilled flange with four bolt holes simplifies installation
  • Threaded FNPT connection fits 3/4 in nominal pipe size
  • Operates reliably from -20 to 150 degrees Fahrenheit

3/4" Cast Iron Flanged Trap

The Anvil 0308002005 is a faced and drilled flange trap designed for plumbing drainage systems. It connects a flanged joint to a 3/4 inch FNPT threaded pipe using cast iron construction. This component suits installers joining flanged equipment to threaded pipework in commercial or residential waste lines.

Sustained pressure and temperature rating

The trap carries a Class 125 rating with a maximum operating pressure of 175 psi. It remains functional across a continuous temperature range from -20 degrees to 150 degrees F. The cast iron body resists deformation and leakage during long-term exposure to these combined thermal and hydraulic loads.

Four-bolt installation pattern

Four bolt holes align the flange for straightforward mating with a companion flange and gasket. The faced surface ensures a flat sealing face, reducing the chance of weep paths. Misaligned bolt holes or an uneven mating surface are the typical causes of joint failure during assembly.

Highlights

  • Cast iron construction resists corrosion for long service life
  • Class 125 rating handles 175 psi maximum operating pressure
  • Faced and drilled flange with four bolt holes simplifies installation
  • Threaded FNPT connection fits 3/4 in nominal pipe size
  • Operates reliably from -20 to 150 degrees Fahrenheit

Specifications

TypeDrain Components
MaterialHAWA
BrandAnvil
Model0308002005

Questions about this item

How much heat can the cast iron body withstand during continuous operation?

The flange is rated for temperatures from -20 °F up to 150 °F, so it handles typical hot-water and steam lines without degrading.

Which mating parts must I already have to install this 3/4-inch flange?

You need a 3/4-inch FNPT pipe or nipple, four bolts for the 3-7/8-inch bolt circle, and a matching gasket for the faced surface.

Will the Class 125 drilling pattern line up with older cast-iron piping in my building?

Yes, the four-hole Class 125 pattern matches standard 3/4-inch flanges, so it bolts directly to existing Class 125 equipment.
