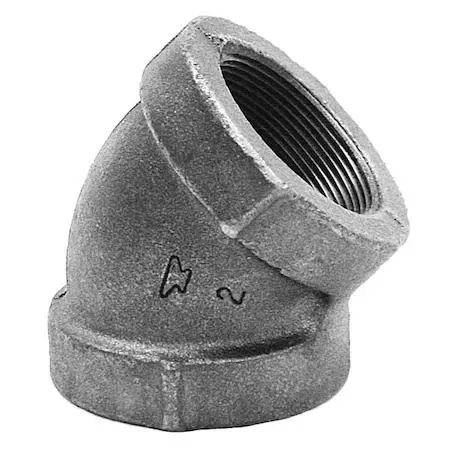

Cast iron 45 degree elbow fitting with threaded ends

Anvil

Anvil 0300029105 Cast Iron 45 Degree Elbow Class 125 Trap

SKU CH-1X9J-9GHMT MPN 0300029105

Cast iron 45-degree elbow connects 3-inch FNPT drain piping at Class 125 pressure rating

  • TypeDrain Components
  • 45-degree cast iron elbow directs flow smoothly
  • Class 125 rating handles 175 psi at 150 °F
  • ASME B16.4 compliance ensures code-accepted installation
  • FNPT threads seal without welding or adhesives
  • Cast iron construction resists corrosion in drain systems

Cast Iron 45 Degree Elbow

The Anvil 0300029105 is a cast iron pipe fitting designed for drainage systems. It provides a 45 degree change in direction within a plumbing layout. The fitting uses a Class 125 pressure rating for standard applications. It is intended for installers working with threaded pipe connections.

FNPT Connection and Build Integration

This elbow features an FNPT connection type for joining to male threaded pipe ends. The cast iron material suits existing iron piping networks. Its 3 inch pipe size matches corresponding schedule components. The fitting integrates into gravity-fed drain or vent lines without additional adapters.

Class 125 Pressure and Temperature Range

The component handles a maximum pressure of 175 psi at temperatures from -20 to 150 degrees F. Saturated steam pressure is rated at 125 psi within the same temperature range. It meets ASME B 16.4 standards for dimensional consistency. Systems exceeding these pressure or temperature limits require a different fitting class.

Highlights

  • 45-degree cast iron elbow directs flow smoothly
  • Class 125 rating handles 175 psi at 150 °F
  • ASME B16.4 compliance ensures code-accepted installation
  • FNPT threads seal without welding or adhesives
  • Cast iron construction resists corrosion in drain systems

Specifications

TypeDrain Components
BrandAnvil
Model0300029105

Questions about this item

What is the maximum pressure the Anvil 0300029105 can handle at its rated temperature range?

The fitting is rated for a maximum pressure of 175 psi from -20 to 150 degrees Fahrenheit.

How hot does the cast iron body get when carrying saturated steam at 125 psi?

At the saturated steam rating of 125 psi, the operating temperature reaches 150 degrees Fahrenheit, so the body runs hot.

What pipe size and thread type must the existing piping have to connect this elbow?

You need 3-inch piping with female NPT threads to match the FNPT connections on this 45-degree elbow.
