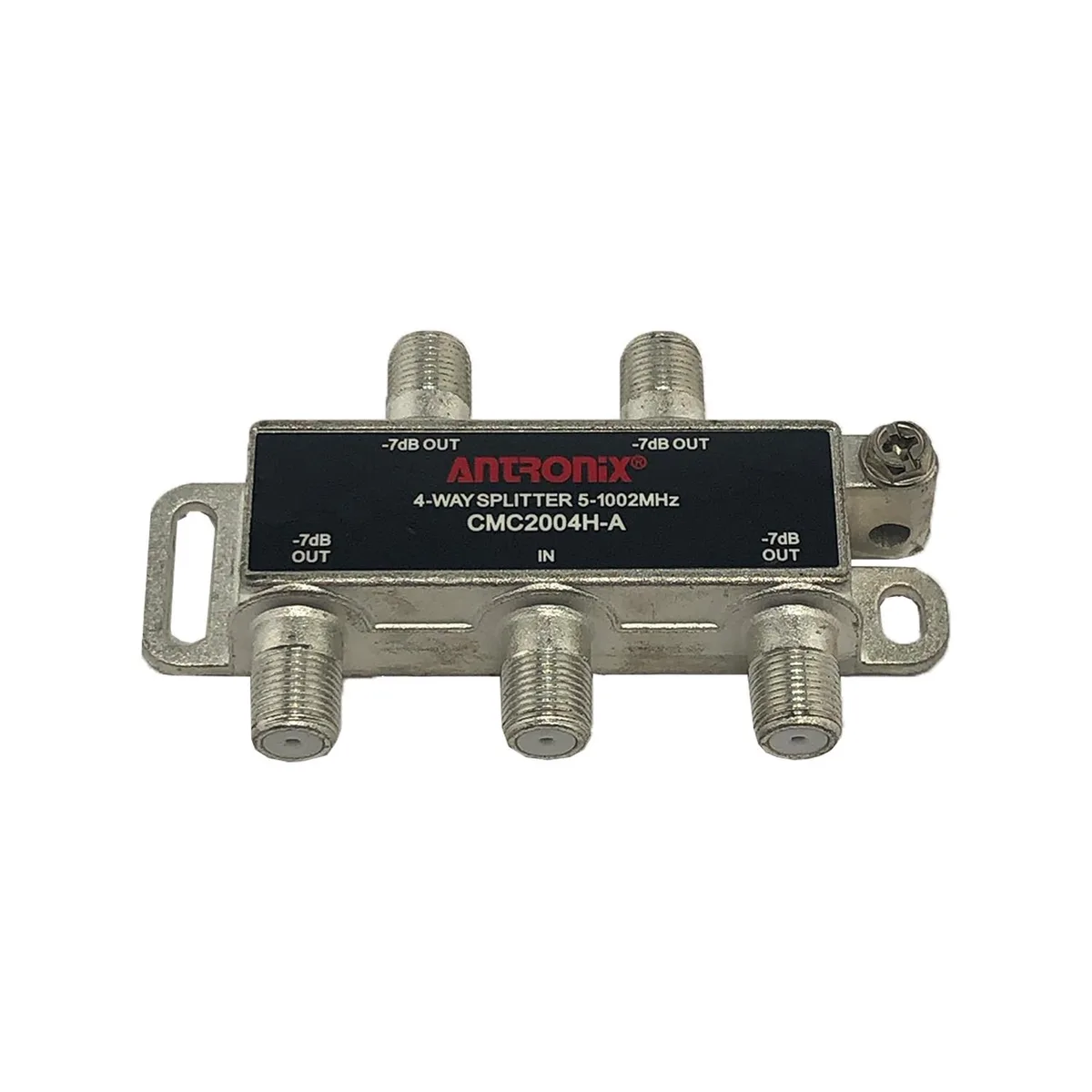

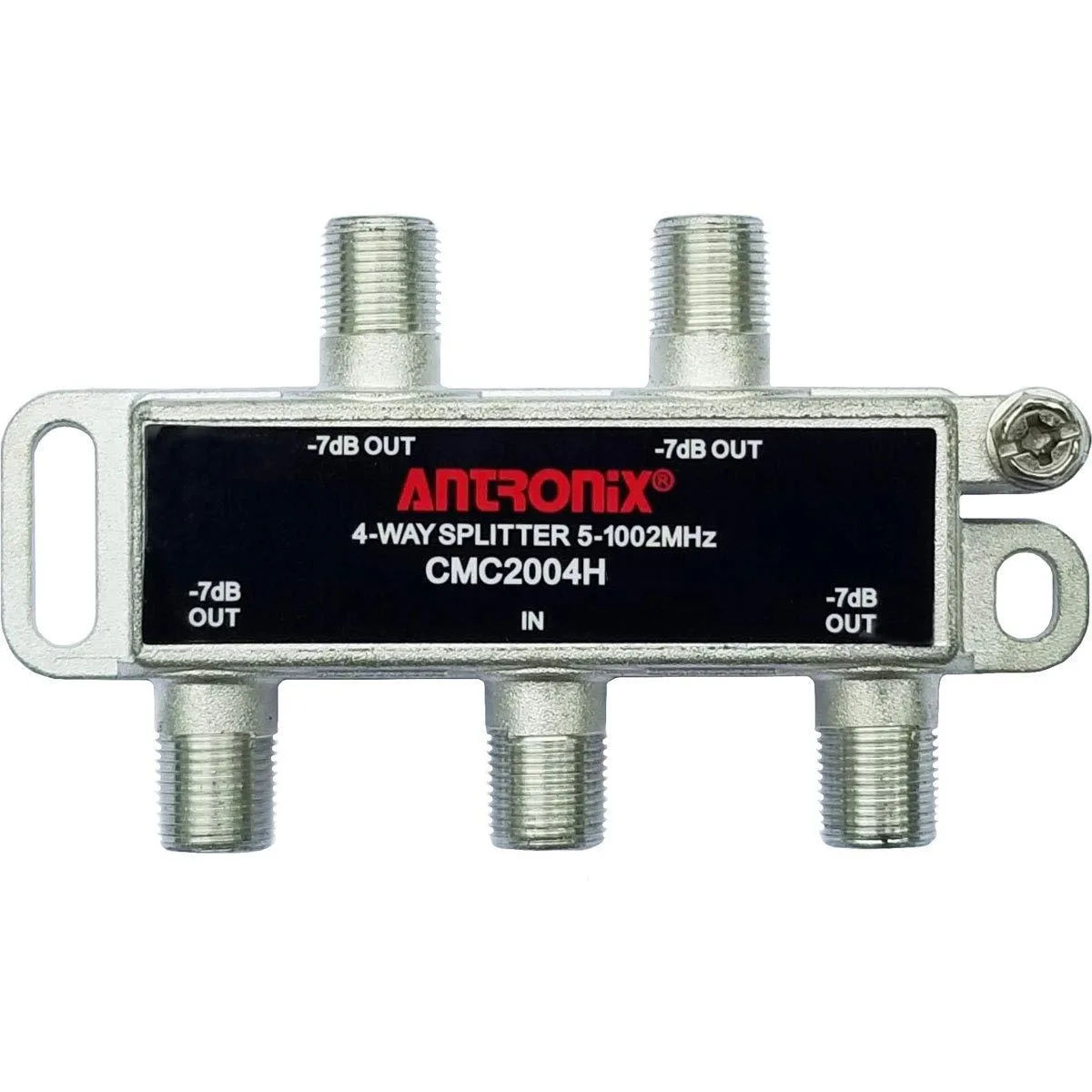

Three black zinc-alloy horizontal splitters with four F-type ports each

Antronix

Antronix CMC2004H 3-Pack 4-Way Horizontal Splitter 7dB 5-1002 MHz

SKU CH-TPFT-EZTF8

Three four-way coaxial splitters divide one signal across 5–1002 MHz with 7 dB per port

  • ColorBlack
  • Weight0.5
  • Three splitters per pack simplify multi-room distribution
  • Four 7 dB ports on each unit balance signal across four outputs
  • 5–1002 MHz bandwidth supports current and future multimedia services
  • Zinc alloy housing with nickel alloy plating resists corrosion in harsh environments
  • 15 psi sealed F-type connectors prevent water migration and maintain ground integrity

Three-pack of 4-way horizontal splitters

This Antronix CMC2004H bundle supplies three identical 4-way horizontal splitters for coaxial distribution networks. Each unit divides a single incoming signal across four output ports with a nominal 7 dB insertion loss. The 5-1002 MHz bandwidth supports current digital broadcast, HDTV and two-way multimedia services. Installers or system integrators expanding a head-end or NID enclosure use these to feed multiple outlets from one trunk line.

Zinc alloy housing with nickel alloy plating

The die-cast zinc alloy body and backplate carry a proprietary nickel alloy finish that resists corrosion at the rear of the housing where moisture collects. Factory-sealed F-type ports sit on 1-inch centres and meet SCTE compliance with a flat 15 psi seal that blocks water migration and maintains a solid ground path. Every port survives repeated 6 kV ring-wave surges while the internal ferrites stay ultra-linear, so the splitters keep performing after lightning events or power crosses.

5-1002 MHz bandwidth with low insertion loss

The flat 1 GHz passband carries forward-path video, data and telephony plus the return-path frequencies needed for cable modem upstream transmission. Low inter-modulation design and optimised return-band isolation prevent high-level modem signals from degrading forward QPSK and QAM channels. The 7 dB per-port loss suits typical drop lengths; runs with excessive attenuation or installations needing more than four outlets per trunk will require additional amplification or a different tap value.

Highlights

  • Three splitters per pack simplify multi-room distribution
  • Four 7 dB ports on each unit balance signal across four outputs
  • 5–1002 MHz bandwidth supports current and future multimedia services
  • Zinc alloy housing with nickel alloy plating resists corrosion in harsh environments
  • 15 psi sealed F-type connectors prevent water migration and maintain ground integrity

Specifications

BrandAntronix
ModelCMC2004H4-Way-3Pack
ColorBlack
Weight0.5

Questions about this item

Will the F-type connectors on the CMC2004H need resealing or replacement after long outdoor exposure?

The 15 psi sealed F-type connectors are SCTE compliant and designed to prevent water migration, so resealing is not expected under normal conditions.

What is the highest frequency the splitter passes before insertion loss becomes a limiting factor?

The flat 1 GHz bandwidth extends to 1002 MHz, supporting current and future multimedia signals with minimal insertion loss.

How much heat does a three-pack generate when installed in a NID enclosure running continuously?

As passive devices with no active components, the splitters produce no measurable heat during all-day operation.
