Black zinc-alloy horizontal splitter with two F-ports, 1 inch spacing, sealed housing

Antronix

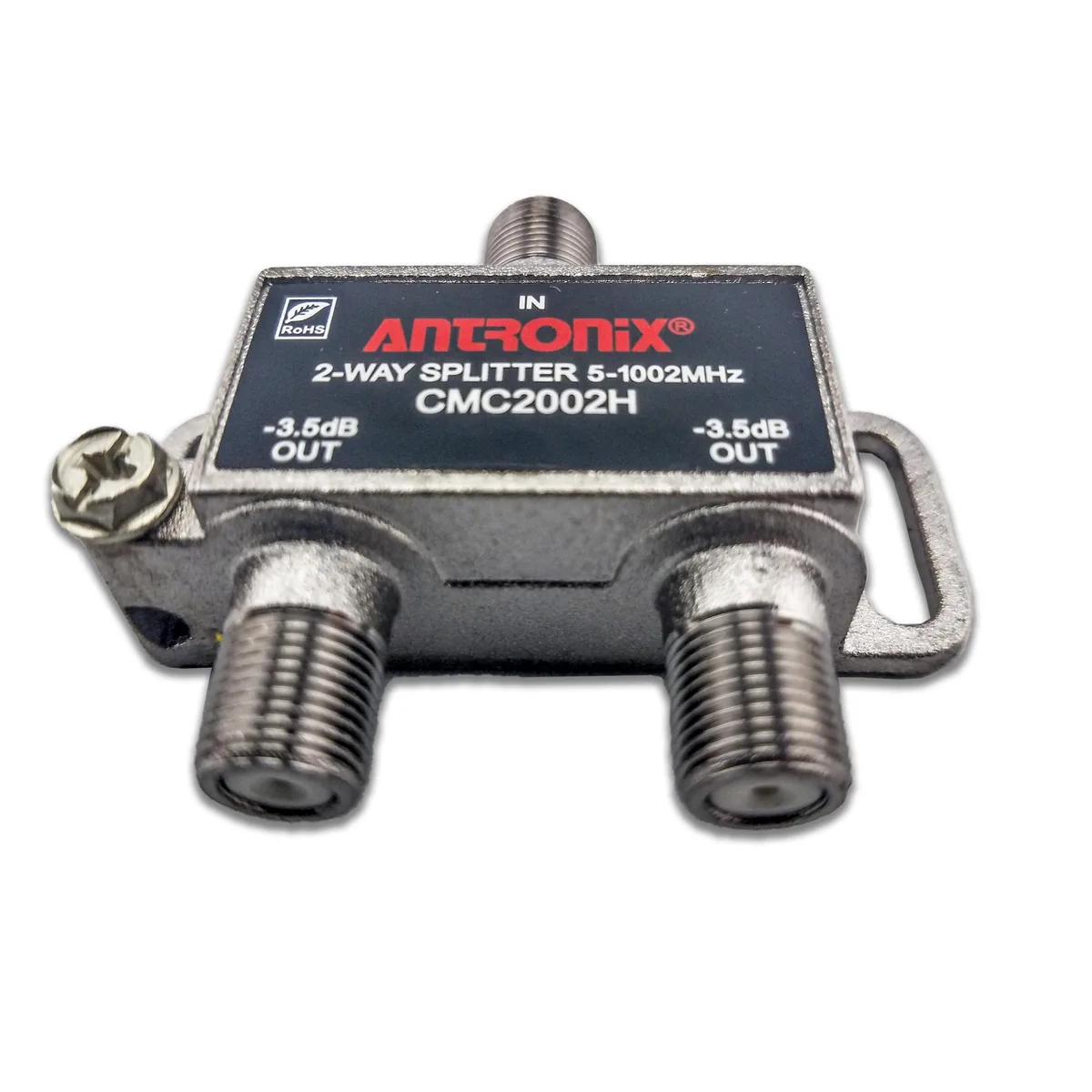

Antronix CMC2002H-A 2-Way Horizontal Splitter 1 GHz MoCA Capable

SKU CH-BBDF-FJ2S4

Two-way horizontal splitter delivers flat 1 GHz bandwidth with 6 kV surge protection on all F ports and 120 dB RFI shielding

  • ColorBlack
  • Weight0.25
  • 6 kV ring-wave surge protection on every F-port per IEEE C62.41 Category A3
  • Zinc alloy die-cast housing with nickel-alloy plating resists corrosion in all environments
  • 15 psi sealed SCTE-compliant F-ports prevent water migration and ensure solid ground
  • 120 dB RFI shielding from 100 % soldered back for clean signal
  • Flat 1 GHz bandwidth with minimal insertion loss supports video, data and telephony

Horizontal MoCA Splitter 1 GHz

The Antronix CMC2002H-A is a two-way horizontal splitter built for coaxial networks up to 1 GHz. It serves installers and system integrators who need reliable signal distribution for video, data and telephony services in residential or commercial premises.

Installation and common issues

The unit uses 1 inch port-to-port spacing with SCTE compliant F-ports sealed to 15 psi, so standard compression connectors fit without crowding. A zinc alloy diecast housing and 100 percent soldered back provide 120 dB RFI shielding, while 6 kV ring wave surge protection on all ports to IEEE C62.41 Category A3 guards against lightning events. Over-tightening connectors can damage the water-tight seal, and corrosion resistance depends on the nickel alloy plating remaining intact.

Capacity and headroom

Flat 1 GHz bandwidth with minimal insertion loss supports current multimedia loads and leaves headroom for future service upgrades up to 1002 MHz. The splitter operates from -40 to 60 degrees Celsius, so it handles outdoor and unconditioned spaces without thermal derating. It cannot amplify signals, so runs that exceed passive loss budgets will need an active amplifier elsewhere in the plant.

Highlights

  • 6 kV ring-wave surge protection on every F-port per IEEE C62.41 Category A3
  • Zinc alloy die-cast housing with nickel-alloy plating resists corrosion in all environments
  • 15 psi sealed SCTE-compliant F-ports prevent water migration and ensure solid ground
  • 120 dB RFI shielding from 100 % soldered back for clean signal
  • Flat 1 GHz bandwidth with minimal insertion loss supports video, data and telephony

Specifications

BrandAntronix
ModelCMC2002H-A
ColorBlack
Weight0.25

Questions about this item

How can I verify the splitter is performing correctly once installed?

Confirm clean signal on all connected devices across the full 5-1002 MHz range with no unexpected dropouts or pixelation on video services.

What comes in the box and what extra parts are needed?

The unit includes the zinc-alloy diecast splitter with sealed F-ports; coaxial cables and F-type connectors for each run must be purchased separately.

Which version should I choose for a MoCA network?

The CMC2002H-A model provides flat 1 GHz bandwidth and MoCA-capable performance for video, data and telephony applications.
