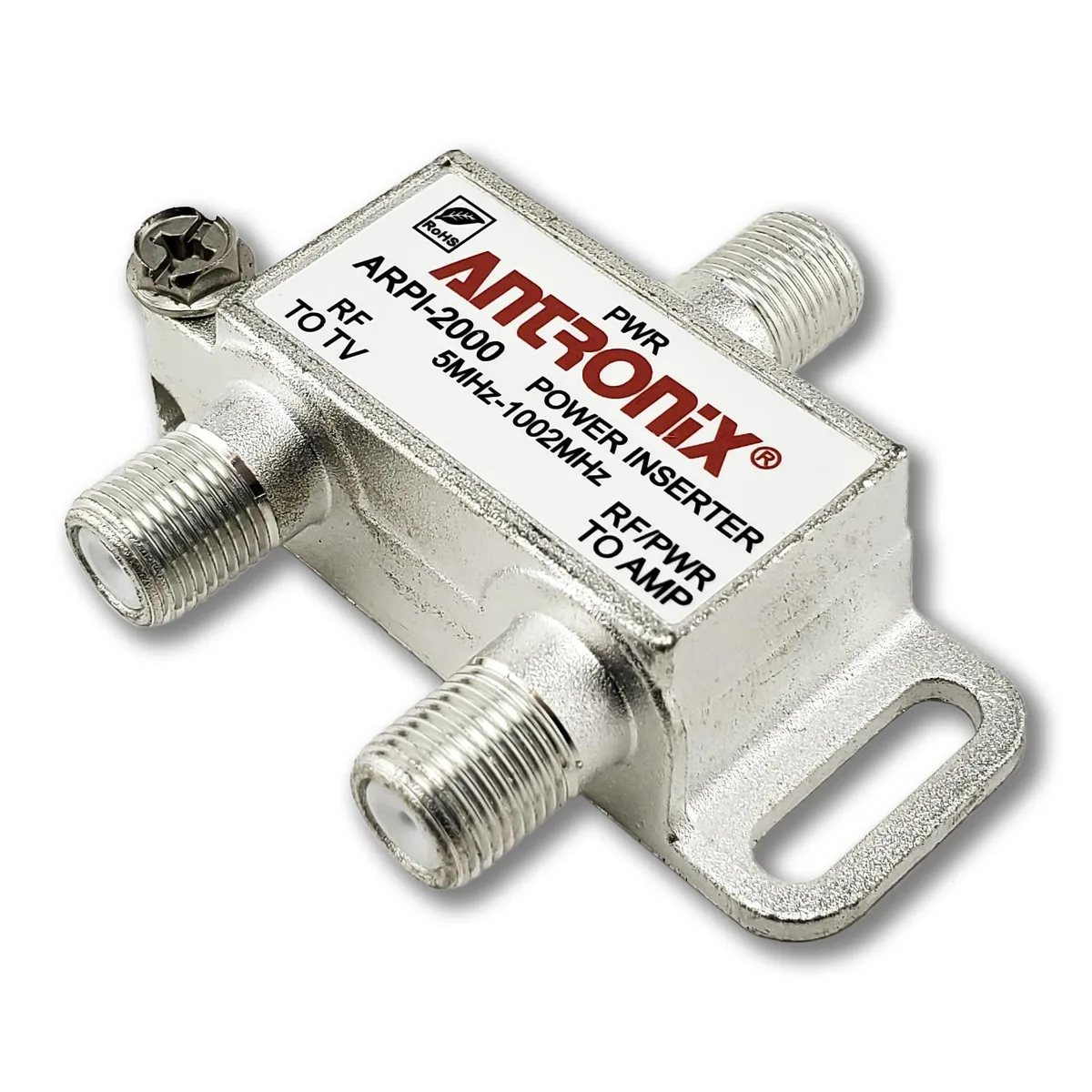

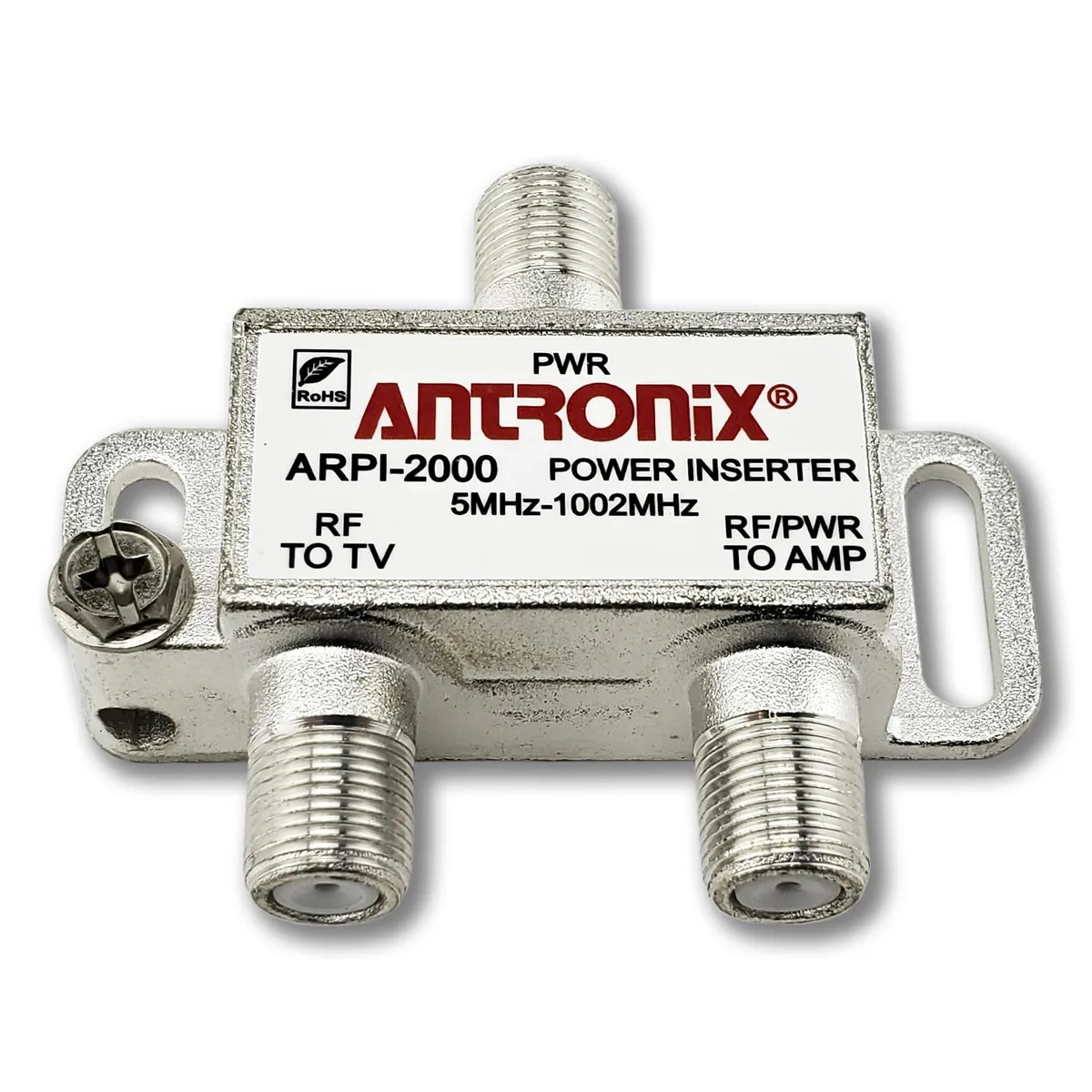

Silver nickel-plated zinc die-cast housing with F ports on one-inch centers

Antronix

Antronix ARPI-2000 Drop Power Inserter Splitter

SKU CH-0CAD-XB8ZE

Drop power inserter combines RF and DC on one coaxial line for remote amplifier powering, handling 1.0 A at 30 Vdc with 6 kV surge protection and -120 dB RFI shielding

  • ColorSilver
  • Weight0.2
  • Combines RF and DC on one cable for remote amplifier powering
  • SCTE-compliant F-ports with 1-inch spacing ensure reliable coaxial connections
  • Nickel-plated zinc housing delivers -120 dB RFI shielding integrity
  • Withstands 6 kV ring-wave surge per IEEE C62.41 Cat. A3
  • Handles continuous 1.0 A at 30 Vdc for stable power delivery

Power Inserter for Premise Amplifiers

The Antronix ARPI-2000 combines RF signals and DC voltage on a single coaxial cable to remotely power a premise amplifier. It is built for two-way network installations that require reliable signal distribution with integrated power delivery. Installers and system integrators use it to simplify cabling in residential and commercial distribution plants. The module supports continuous current handling of 1.0 A at 30 Vdc.

Verify Amplifier Voltage and Current Needs

Before ordering, confirm that the premise amplifier you intend to power operates within the 30 Vdc limit and does not draw more than 1.0 A. Check that your existing coaxial infrastructure uses standard F-type connectors spaced on 1-inch centers for proper alignment. Ensure the network design accommodates the inserter's insertion loss and AC/RF isolation characteristics. The unit is intended for indoor or protected outdoor environments only.

Soldered Back Plate and Surge Protection

A nickel-plated zinc die-cast housing with a soldered back plate provides 120 dB of RFI shielding for clean signal integrity. All F ports are precision machined with SCTE compliant threading and feature round center conductor seizing pins with white insulators. Surge protection is rated at 6 kV Ring Wave per IEEE C62.41 Cat. A3 to withstand transient events. The compact silver enclosure weighs .2 and mounts inline without additional brackets.

Highlights

  • Combines RF and DC on one cable for remote amplifier powering
  • SCTE-compliant F-ports with 1-inch spacing ensure reliable coaxial connections
  • Nickel-plated zinc housing delivers -120 dB RFI shielding integrity
  • Withstands 6 kV ring-wave surge per IEEE C62.41 Cat. A3
  • Handles continuous 1.0 A at 30 Vdc for stable power delivery

Specifications

BrandAntronix
ModelARPI2000powerinsert
ColorSilver
Weight0.2

Questions about this item

Does the ARPI-2000 include coaxial cables or a power supply in the box?

The unit is supplied as the power inserter module only; coaxial cables and the DC power source for the premise amplifier must be purchased separately.

Which version of the ARPI-2000 should I select for a standard two-way drop installation?

The ARPI-2000 is a single model rated for 1.0 A at 30 Vdc with 6 kV ring-wave surge protection per IEEE C62.41 Cat. A3, so no alternative versions or capacities exist to choose between.

What does the 120 dB RFI shielding figure mean for signal quality on my coax run?

The nickel-plated zinc die-cast housing with soldered back plate delivers -120 dB of RFI integrity, preventing external interference from degrading the combined RF and DC signals on the cable.
