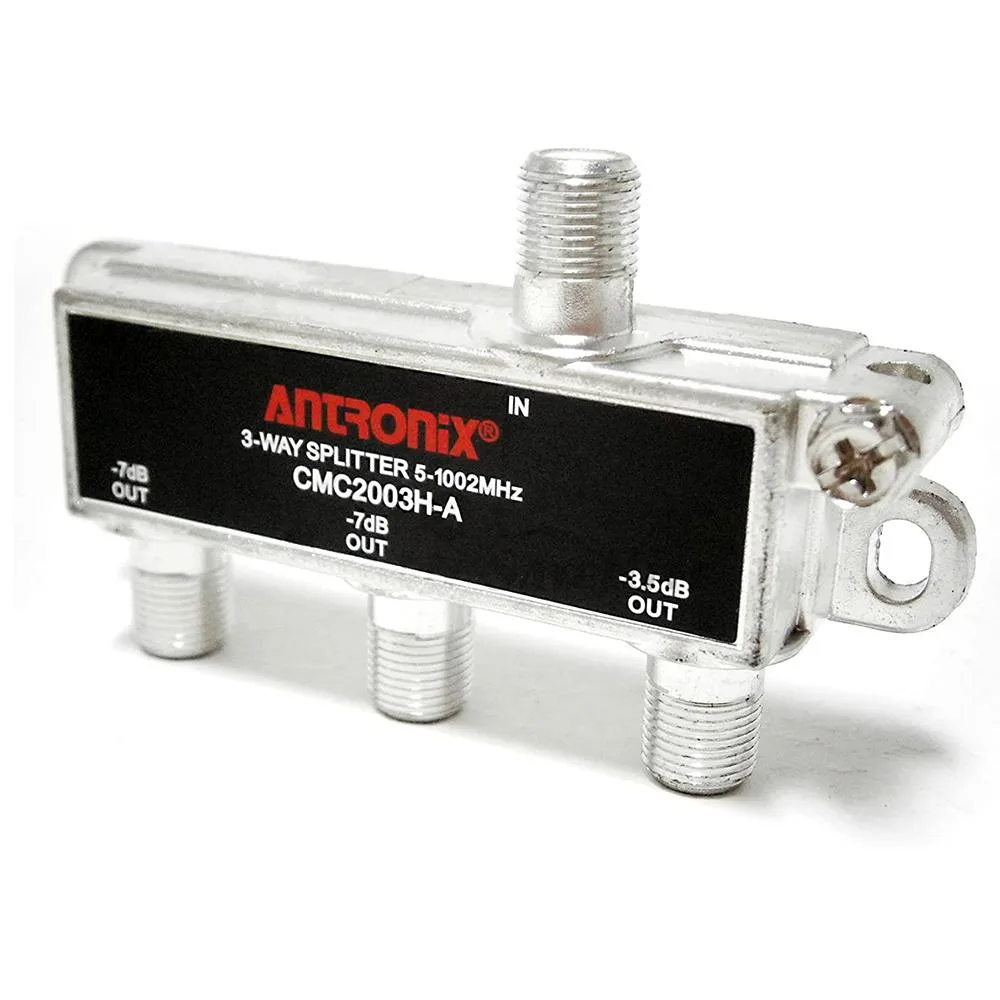

Antronix 3-way coaxial splitter, black diecast housing, F-ports, horizontal form

Antronix

Antronix 3-Way Coaxial Splitter CMC2003H-A

SKU CH-9RHQ-C66A7

A 3-way coaxial splitter for two-way broadband networks with flat 1002 MHz bandwidth, 6 kV surge protection and 120 dB RFI shielding

  • ColorBlack
  • Weight0.25
  • 3-way split with flat 1002 MHz bandwidth for broadband video and data
  • 6 kV ring-wave surge protection on every port per IEEE C62.41 Category A3
  • 35 dB return-path output return loss and 40 dB port-to-port isolation in the return band
  • Zinc alloy diecast housing with nickel-alloy plating and 100 % soldered back for 120 dB RFI shielding
  • SCTE-compliant F-ports spaced 1 inch apart with 15 psi sealed, capacitively coupled design

Three-way coaxial splitter

The Antronix CMC2003H-A is a three-way coaxial splitter built for two-way broadband networks. It divides a single incoming signal across three F-type outputs while maintaining a flat 1002 MHz bandwidth. The zinc alloy diecast housing with nickel alloy plating and a 100 percent soldered back provides 120 dB RFI shielding. It operates from -40 to 60 degrees Celsius.

Surge protection and port isolation

This unit replaces unprotected or lower-spec splitters that lack surge hardening and precise port isolation. The jump is worth it when the installation must withstand multiple 6 kV ring wave surges per IEEE C62.41 Category A3. Capacitively coupled, SCTE compliant F-ports with 1 inch spacing and a flat 15 psi seal prevent water migration and ensure a solid ground connection.

Headroom for video data and telephony

The splitter comfortably handles digital broadcast, HDTV, MoCA, video, data and telephony across its 1 GHz bandwidth with minimal insertion loss. It delivers 35 dB return path output return loss and 40 dB port-to-port return band isolation. Spurious and harmonics are suppressed to -45 dBmV after five 6 kV surges with a +55 dBmV return signal. It is not suited for Verizon, DirecTV or CenturyLink networks.

Highlights

  • 3-way split with flat 1002 MHz bandwidth for broadband video and data
  • 6 kV ring-wave surge protection on every port per IEEE C62.41 Category A3
  • 35 dB return-path output return loss and 40 dB port-to-port isolation in the return band
  • Zinc alloy diecast housing with nickel-alloy plating and 100 % soldered back for 120 dB RFI shielding
  • SCTE-compliant F-ports spaced 1 inch apart with 15 psi sealed, capacitively coupled design

Specifications

BrandAntronix
ModelAntronix3CMC2003H-A
ColorBlack
Weight0.25

Questions about this item

What port spacing does the Antronix CMC2003H-A splitter use for mounting?

The splitter uses 1 inch port-to-port spacing with SCTE compliant F-ports for secure mounting.

How do you install the Antronix CMC2003H-A splitter, and what step is often missed?

Connect coaxial cables to each F-port ensuring tight connections; the step often missed is verifying the 15 psi sealed ports prevent water migration.

What maintenance does the Antronix CMC2003H-A splitter require over time?

The UV resistant label and nickel alloy plating resist corrosion; inspect the 100% soldered back for 120 dB RFI shielding integrity periodically.
