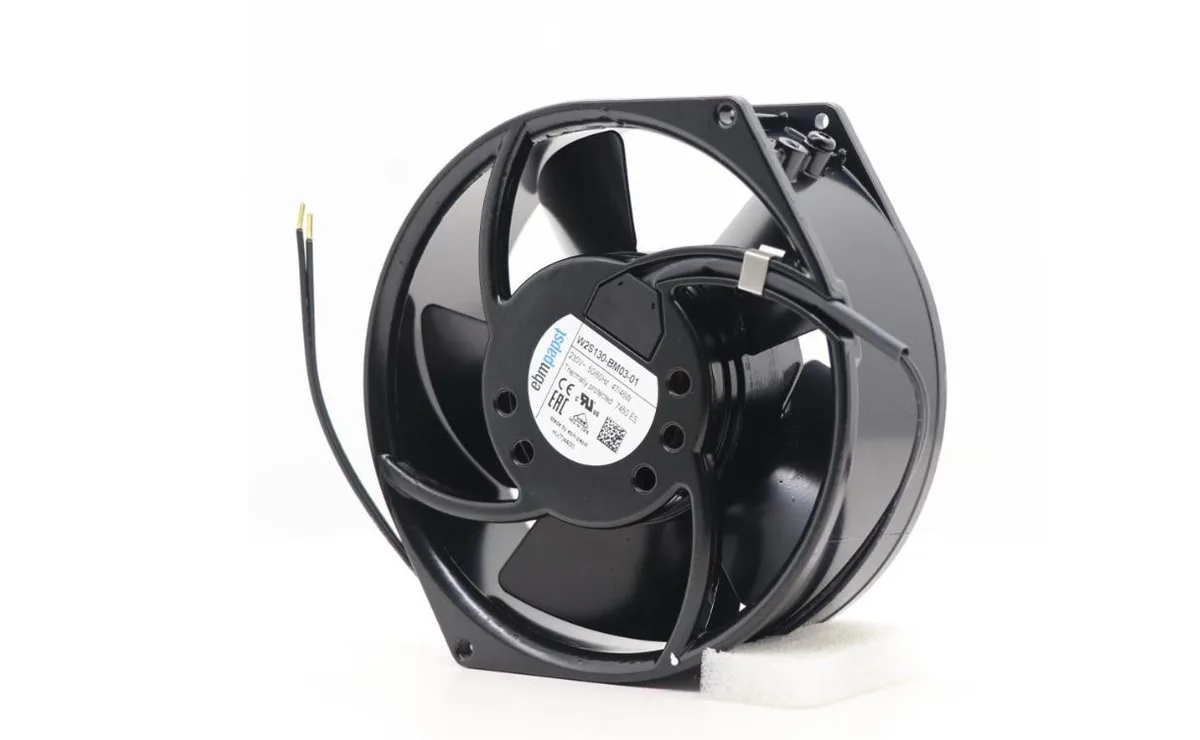

Black painted metal axial fan with five blades, 130mm diameter, die-cast aluminum housing, ball bearing motor

anicorn

anicorn No.W2S130-BM03-01 axial fan accessory

SKU CH-AWD0-RS030 MPN No.W2S130-BM03-01

130 mm axial fan with die-cast aluminium housing and five steel blades runs on 230 VAC at 2 700 or 3 050 RPM, drawing 0.27 or 0.31 A for 46 or 47 W, rated IP20 and class B insulation from -25 to 70 °C

  • Reliable airflow from 130 mm axial fan
  • Durable construction with die-cast aluminum housing and steel impeller
  • Stable operation across -25 to 70 °C range
  • Low maintenance thanks to ball-bearing motor design
  • IP20 protection suits indoor component cooling

anicorn 130 mm axial fan

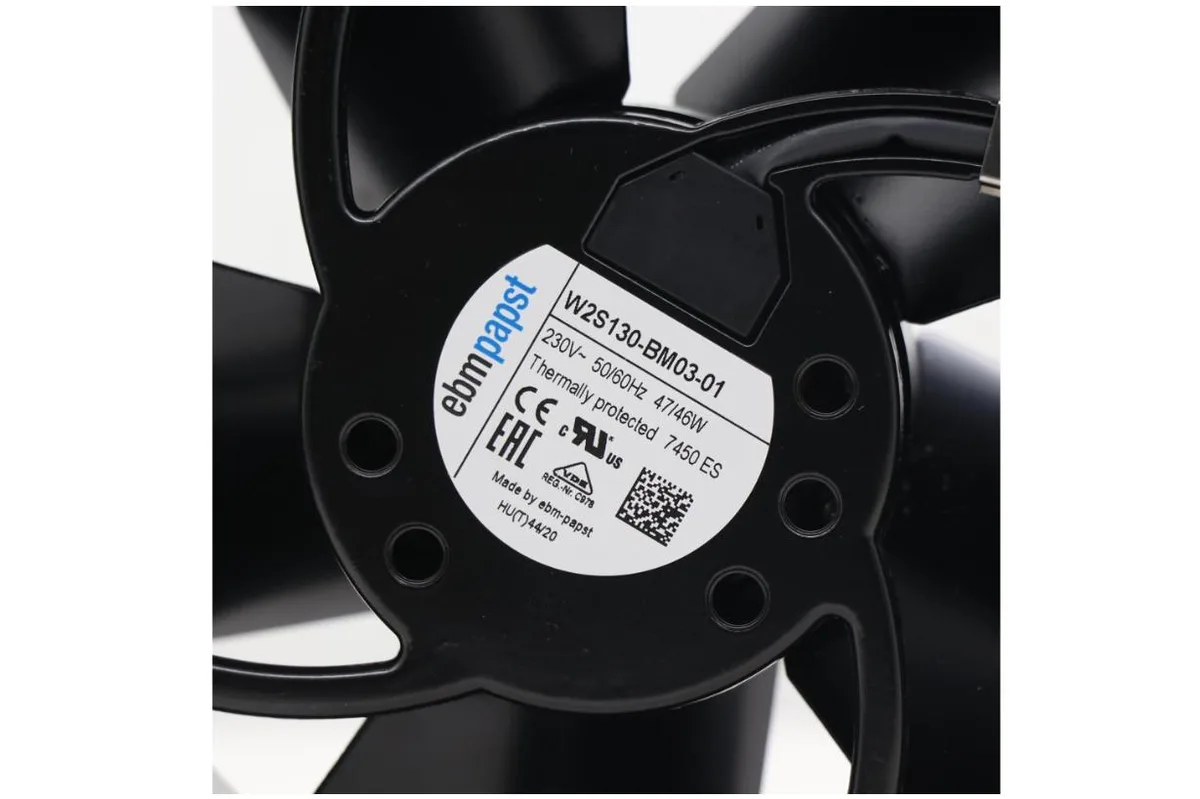

The anicorn No.W2S130-BM03-01 is a 230 VAC axial fan built by ebm-papst for equipment cooling. It uses a ball-bearing M2S052-CA motor and a five-blade steel impeller inside a die-cast aluminium frame.

Suited for industrial chassis and server racks

Installers needing a compact 130 mm fan rated for continuous 230 VAC operation will find the IP20 protection and -25 to 70 °C ambient range appropriate. Buyers who require a lower voltage, PWM control or a different mounting footprint should look elsewhere.

230 VAC nominal voltage decides fit

The fan only runs on 230 VAC mains at 50 or 60 Hz, drawing 0.27 or 0.31 A depending on frequency. Verify that your power source matches this single voltage before ordering.

Highlights

  • Reliable airflow from 130 mm axial fan
  • Durable construction with die-cast aluminum housing and steel impeller
  • Stable operation across -25 to 70 °C range
  • Low maintenance thanks to ball-bearing motor design
  • IP20 protection suits indoor component cooling

Specifications

No published specifications for this item yet.

Questions about this item

How much airflow does the 130 mm diameter deliver at 2700 RPM?

The 130 mm impeller with five blades spins at 2700 RPM on 50 Hz and 3050 RPM on 60 Hz, moving air through an IP20 rated housing suitable for general enclosure cooling.

What does the 230 VAC 50/60 Hz rating mean for wiring and speed?

The fan runs directly on single-phase 230 VAC mains at 50 or 60 Hz, drawing 0.27 A at 50 Hz and 0.31 A at 60 Hz with no external driver required.

Will the 130 mm frame fit my existing cut-out and mounting points?

The die-cast aluminum frame measures 130 mm square, weighs 1.1 kg and uses standard corner mounting holes for panel installation.
