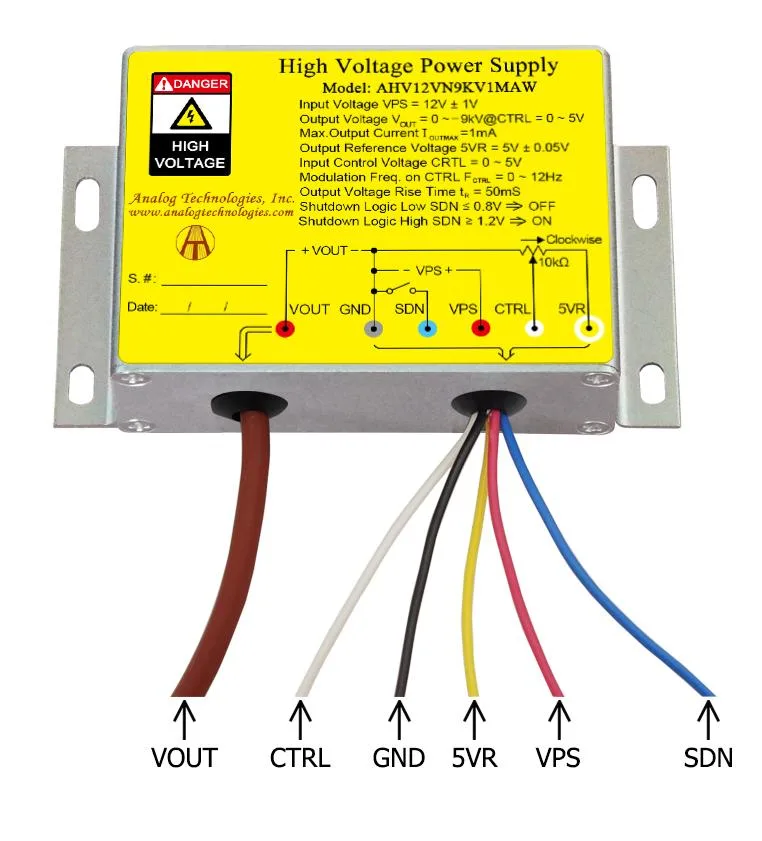

Compact high-voltage DC-DC converter module, 12V input, 9kV output

Analog Technologies

Analog Technologies High Voltage Power Supply 0 to 9kV 1mA 12V Input AHV12VN9KV1MAW

SKU CH-SJ60-QYQ6G

Compact high-voltage module converts 12 V DC to 0–9 kV at 1 mA for X-ray, spectroscopy and semiconductor equipment

  • TypeHigh Voltage Power Supply
  • 0 to -9 kV adjustable output covers demanding high-voltage applications
  • 12 V ± 1 V input simplifies integration into standard DC systems
  • Full-span voltage modulation enables precise control across the entire range
  • Electronic shutdown control adds fast protection for sensitive loads
  • 5 V ± 0.05 V reference voltage supports accurate external regulation

Compact High-Voltage DC-DC Module

The Analog Technologies AHV12VN9KV1MAW converts a 12V DC input into an adjustable negative output up to 9kV at 1mA maximum current. It is built for engineers and system integrators who need a regulated high-voltage source in laboratory, inspection or coating equipment.

Suited for precision instrumentation builds

This unit fits applications such as X-ray sources, spectral analysers, electrospinning rigs and magnetron sputtering systems where a controllable 0 to 5V reference sets the output span. It is not for buyers who need a positive-polarity output, higher current capability or an AC-mains front end.

9kV at 1mA with 12V supply headroom

The module delivers full-scale voltage modulation across the 0 to -9kV range while drawing between 225mA and 1.1A from the 12V rail depending on load. Headroom ends at the 1mA current limit; loads requiring sustained current beyond that will need a different supply topology.

Highlights

  • 0 to -9 kV adjustable output covers demanding high-voltage applications
  • 12 V ± 1 V input simplifies integration into standard DC systems
  • Full-span voltage modulation enables precise control across the entire range
  • Electronic shutdown control adds fast protection for sensitive loads
  • 5 V ± 0.05 V reference voltage supports accurate external regulation

Specifications

TypeHigh Voltage Power Supply

Questions about this item

What voltage and current must my 12 V source deliver to run this module?

The supply accepts 12 V ± 1 V and draws between 225 mA and 1.1 A depending on load.

Will the 0–5 V control signal I use with older equipment still drive the full 0 to –9 kV range?

Yes, the control input is specified for 0 to 5 V and provides full-span modulation of the output voltage.

How can I verify the reference voltage is stable after installation?

Measure the reference pin; it should read 5 V ± 0.05 V when the unit is powered.
