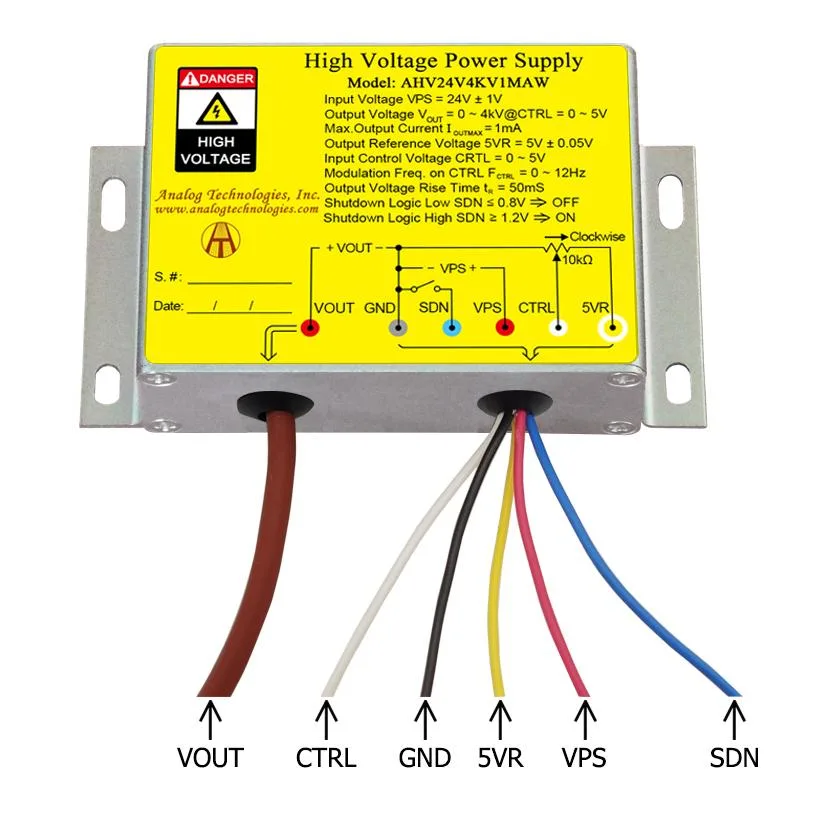

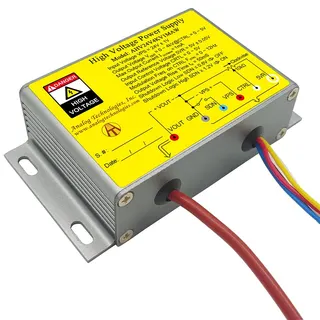

Compact high-voltage power supply module, 24V input, 0-4kV output

Analog Technologies

Analog Technologies High Voltage Power Supply 0-4kV 1mA 24V Input AHV24V4KV1MAW

SKU CH-7P24-BXJB3

Compact DC-DC module converts 24 V input to an adjustable 0-4 kV output at up to 1 mA for analytical and deposition equipment

  • TypeHigh Voltage Power Supply
  • 0 to 4 kV adjustable output controlled by 0 to 5 V input
  • 1 mA maximum current supports precision high-voltage applications
  • 24 V DC input with 45 to 225 mA draw fits standard supplies
  • Electronic shutdown control enables fast output disable
  • 5 V reference voltage with ±0.05 V accuracy ensures stable regulation

Compact High-Voltage DC-DC Module

The Analog Technologies AHV24V4KV1MAW converts a 24V DC input into an adjustable 0 to 4kV output at up to 1mA. It is built for engineers and system integrators developing scientific instruments such as X-ray sources, electrospinning rigs or capillary electrophoresis apparatus.

PCB-Mount Design with Full-Range Control

The unit accepts 24V ± 1V and draws between 45mA and 225mA depending on load. Output voltage scales linearly with a 0 to 5V control signal, while a 5V ± .05V reference and electronic shutdown pin simplify integration into automated test or production systems.

Replaces Bulkier HV Racks in Space-Constrained

This module substitutes rack-mounted high-voltage supplies where bench space or enclosure volume is limited. The jump is worthwhile when a design needs programmable kilovolt output with fast shutdown but cannot accommodate a full-size chassis and separate controller.

Highlights

  • 0 to 4 kV adjustable output controlled by 0 to 5 V input
  • 1 mA maximum current supports precision high-voltage applications
  • 24 V DC input with 45 to 225 mA draw fits standard supplies
  • Electronic shutdown control enables fast output disable
  • 5 V reference voltage with ±0.05 V accuracy ensures stable regulation

Specifications

TypeHigh Voltage Power Supply

Questions about this item

How does the 0 to 5 V control voltage set the 0 to 4 kV output?

The output scales linearly with the control input; 0 V gives 0 V output and 5 V gives the full 4 kV span.

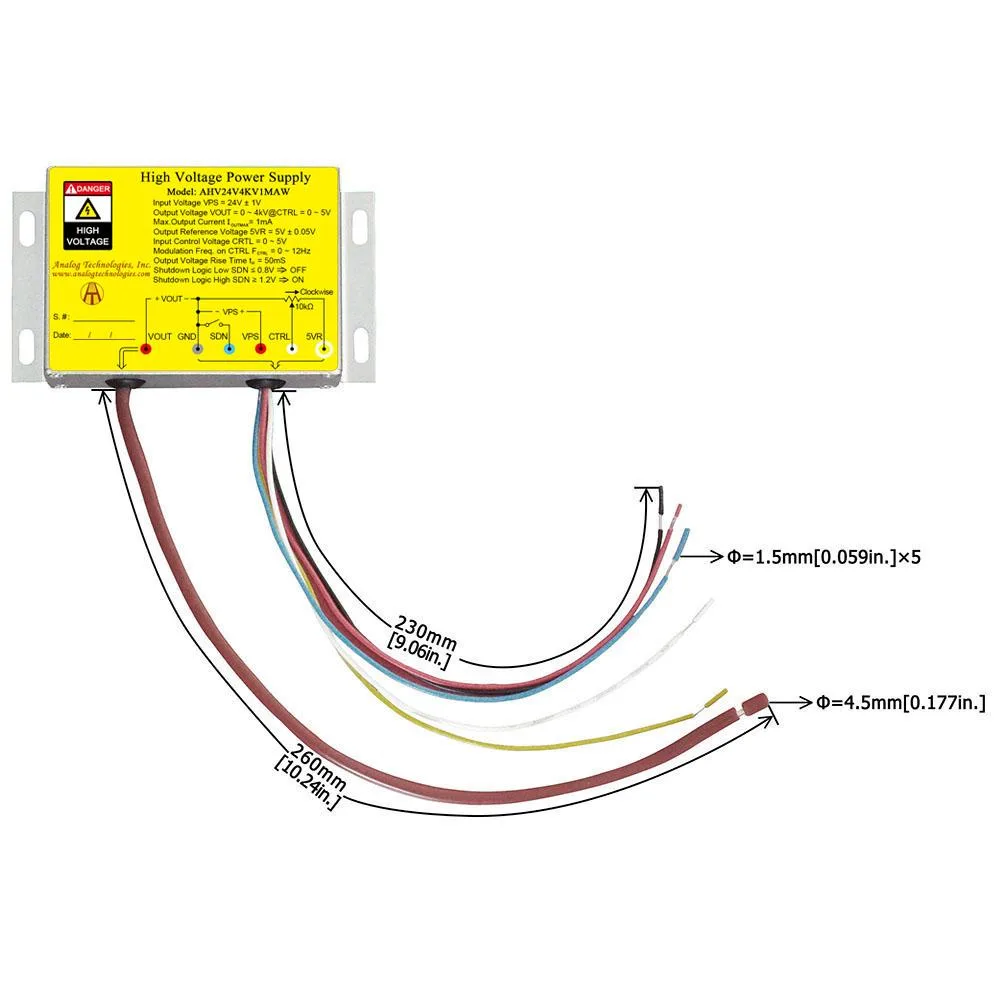

What clearance and mounting does the module need?

The compact DC-DC converter is designed for PCB or chassis mounting; allow adequate creepage distance for the 4 kV output terminals.

How is the electronic shutdown wired and enabled?

Apply the shutdown signal to the designated control pin; the supply disables the high-voltage output when the pin is asserted.
