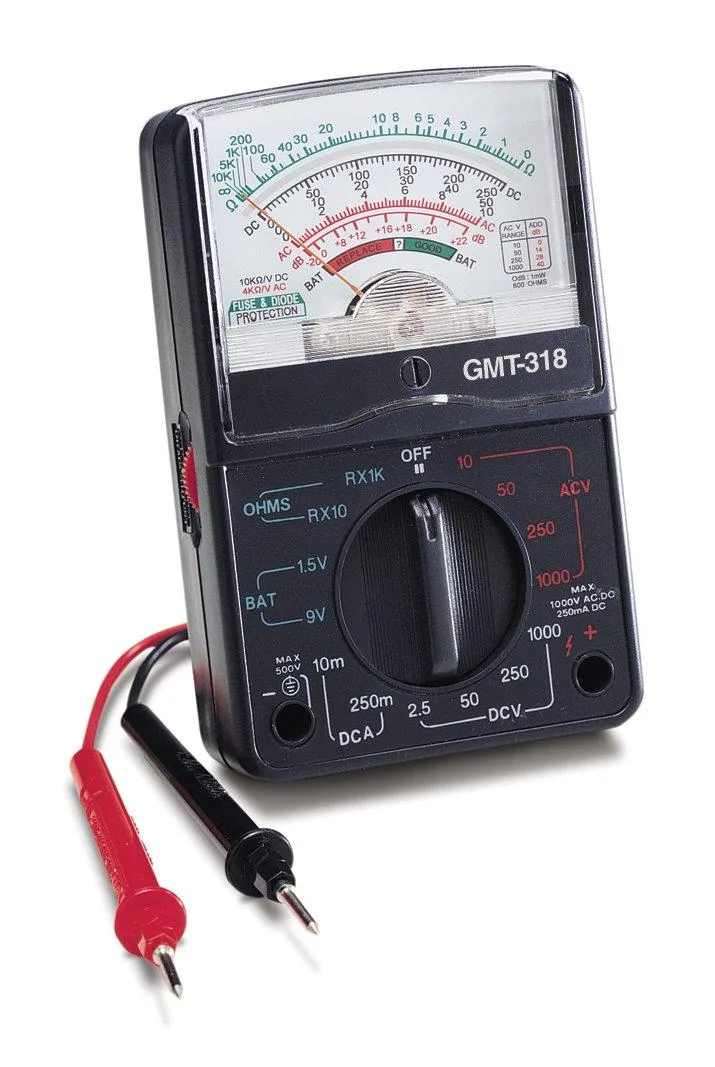

Pocket analog multimeter with rotary dial and test leads

Analog Multimeter 14 Range 500V

SKU CH-ZYYB-SEM5Z

Pocket-sized analog multimeter with 14 ranges, 500 V AC/DC voltage, and fuse overload protection

  • FeaturesMeter, Test Leads, Operating Manual, Agency Approved, Batter
  • Height1.25 L x 2.75 W x 4.25 H inches
  • Width1.25 L x 2.75 W x 4.25 H inches
  • Length1.25 L x 2.75 W x 4.25 H inches
  • Weight0.31 pounds
  • Sports Team1 Piece
  • Tests six electrical functions with one compact tool
  • 14 measurement ranges cover AC and DC voltage to 500V
  • 15-position rotary dial selects ranges manually
  • Color-coded analog display reads quickly at a glance
  • Replaceable test leads and manual included for immediate use

Pocket Analog Multimeter

The Gardner Bender GMT-318 is a pocket-sized analog tester built for electricians and DIY users who need to verify that electrical equipment is properly installed and safe to operate. It measures AC voltage, DC voltage, DC current, resistance, continuity and batteries in one compact instrument.

14-Range Manual Selection

A 15-position rotary dial provides manual range selection across 14 ranges, covering AC and DC voltage to 500 V, DC current to 250 mA and resistance to 50 kΩ. The color-coded analog display is designed for easy reading and the meter includes a fuse for overload protection.

Test Leads and Battery Power Included

Supplied with replaceable test leads and an operating manual, the unit runs on an internal battery for the 1.5 V and 9 V battery-test functions. Its small footprint lets it fit in a tool pouch, freeing bench space while keeping essential electrical diagnostics at hand.

Highlights

  • Tests six electrical functions with one compact tool
  • 14 measurement ranges cover AC and DC voltage to 500V
  • 15-position rotary dial selects ranges manually
  • Color-coded analog display reads quickly at a glance
  • Replaceable test leads and manual included for immediate use

Specifications

BrandGardner Bender
FeaturesMeter, Test Leads, Operating Manual, Agency Approved, Battery Powered, true
Height1.25 L x 2.75 W x 4.25 H inches
Width1.25 L x 2.75 W x 4.25 H inches
Length1.25 L x 2.75 W x 4.25 H inches
Weight0.31 pounds
Sports Team1 Piece
TypeMultimeters, Tach & Dwell Meters

Questions about this item

What does the 500 V rating mean for everyday testing?

The 500 V maximum covers standard mains work; the meter will read up to 500 V on both AC and DC ranges.

What does the 14-range rotary dial actually select?

The 15-position dial chooses among 14 measuring ranges covering AC voltage, DC voltage, DC current up to 250 mA, resistance up to 50 kΩ, decibels from −20 to +56 dB and internal 1.5 V and 9 V battery tests.

What do I need to mount or carry this tester?

The pocket-sized case measures 1.25 × 2.75 × 4.25 inches and weighs 0.31 pounds, so it fits in a tool pouch or clips to a belt without extra hardware.
