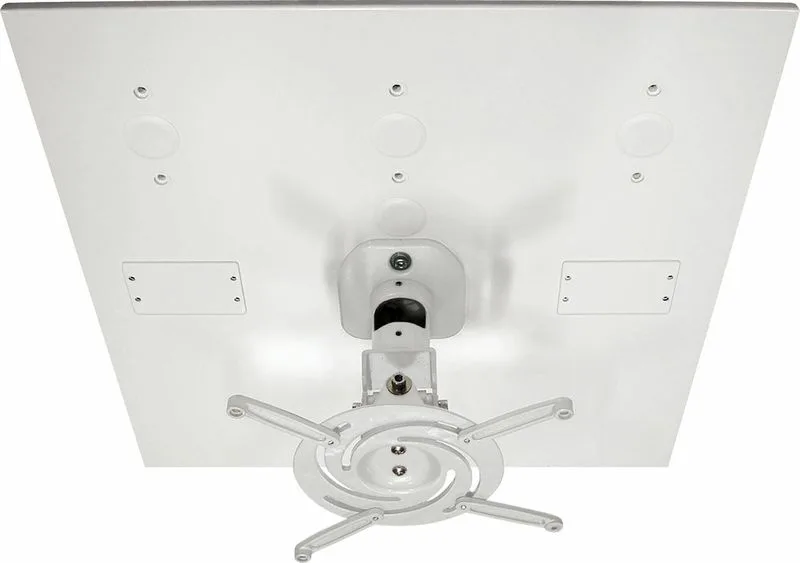

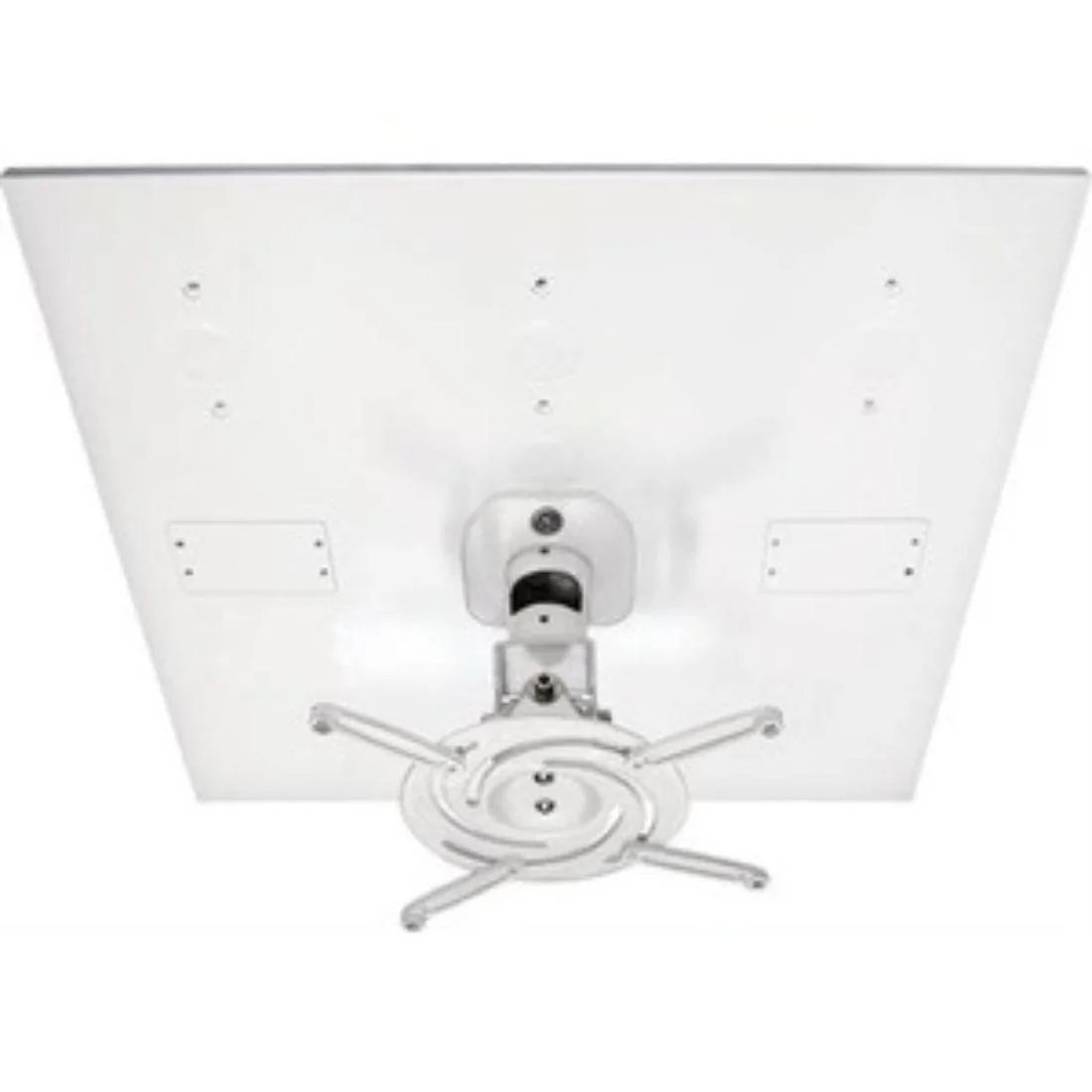

White steel ceiling tile plate with cast aluminum projector mount arms, drop-in design for 2x2 grid

Amer Mounts

Amer Mounts Universal Drop Ceiling Projector Mount 2x2 Tile 30 lbs

SKU CH-PAK7-EG8VE MPN ***Duplicate*** use 0FC-005S-00002

A reinforced steel ceiling tile replaces a standard 2'x2' panel and holds projectors up to 30 lbs with 180° tilt and 360° rotation

  • TypeCeiling Mount
  • Screen MaterialSteel Cast Aluminum
  • ColorWhite
  • Replaces a 2'x2' ceiling tile for fast installation
  • Reinforced steel plate with 5 mounting points ensures precise alignment
  • Cast aluminium head dissipates heat to protect the projector
  • 180° tilt and 360° rotation cover every viewing angle
  • Supports projectors up to 30 lbs with optional 15.7" extension arms

Universal Drop Ceiling Projector Mount

The Amer Mounts universal drop ceiling projector mount replaces a standard 2x2 ceiling tile and supports projectors weighing up to 30 lbs. It is designed for installers who need a quick lay-in solution without cutting into the ceiling grid. The reinforced steel plate and cast aluminum mounting head provide a lightweight yet sturdy platform for permanent installations in offices or classrooms.

Multiple Mounting Points for Alignment

A 2x2 reinforced steel plate offers five mounting positions so the projector can be centred or offset to match the screen. The universal spider includes four adjustable arms for large projectors, while smaller units can use three arms by rotating them under the plate. For projectors with mounting holes wider than 12 inches, optional extension arms (part 10057) extend the reach to 15.7 inches.

Heat Dissipation and Full Motion

The cast aluminum mounting head acts as a heat dissipating surface to help keep the projector cool during operation. It provides 180 degrees of tilt and 360 degrees of rotation for precise image alignment. Integrated cable management and cutouts for two standard outlets keep wiring tidy and allow power access directly at the mount.

Highlights

  • Replaces a 2'x2' ceiling tile for fast installation
  • Reinforced steel plate with 5 mounting points ensures precise alignment
  • Cast aluminium head dissipates heat to protect the projector
  • 180° tilt and 360° rotation cover every viewing angle
  • Supports projectors up to 30 lbs with optional 15.7" extension arms

Specifications

BrandAmer Mounts
TypeCeiling Mount
Screen MaterialSteel Cast Aluminum
ColorWhite
Shipping weight5.99 kg
Package size660 × 622 × 102 mm

Questions about this item

Will the 30 lb capacity and 12 inch arm reach work with my older projector that has mounting points 10 inches apart?

Yes, the four included arms adjust to fit mounting points up to 12 inches apart, and the reinforced steel plate supports up to 30 lbs.

How can I verify the 180° tilt and 360° rotation are functioning correctly after installation?

Adjust the cast aluminum head through its full tilt range and rotate it a complete circle; smooth movement at every angle confirms proper operation.

Does the package include the AMRP10057 extension arms for projectors with mounting points wider than 12 inches?

No, the extension arms are sold separately; the box contains the 2'×2' steel ceiling plate, four adjustable arms, universal spider plate, and mounting hardware.
