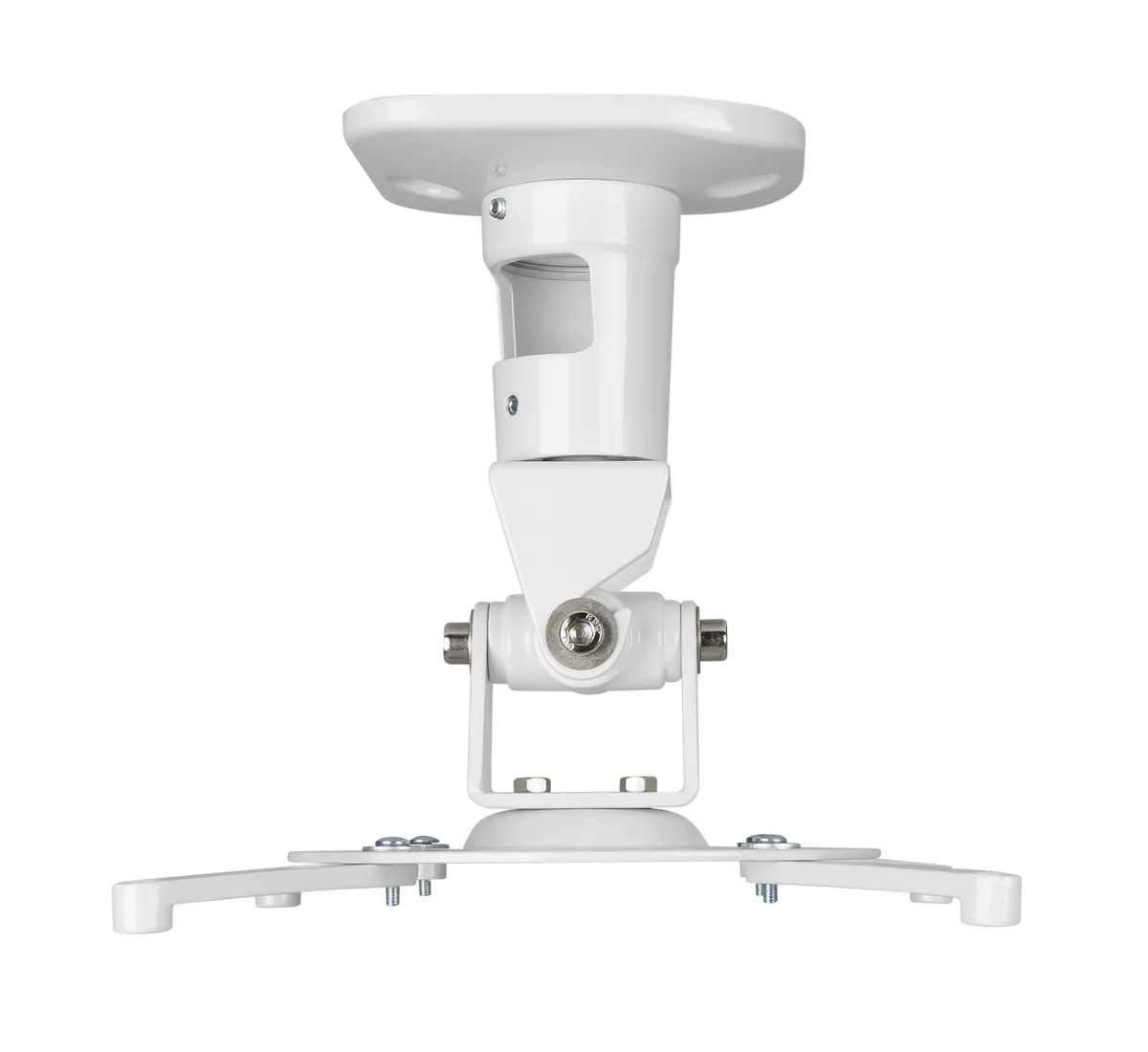

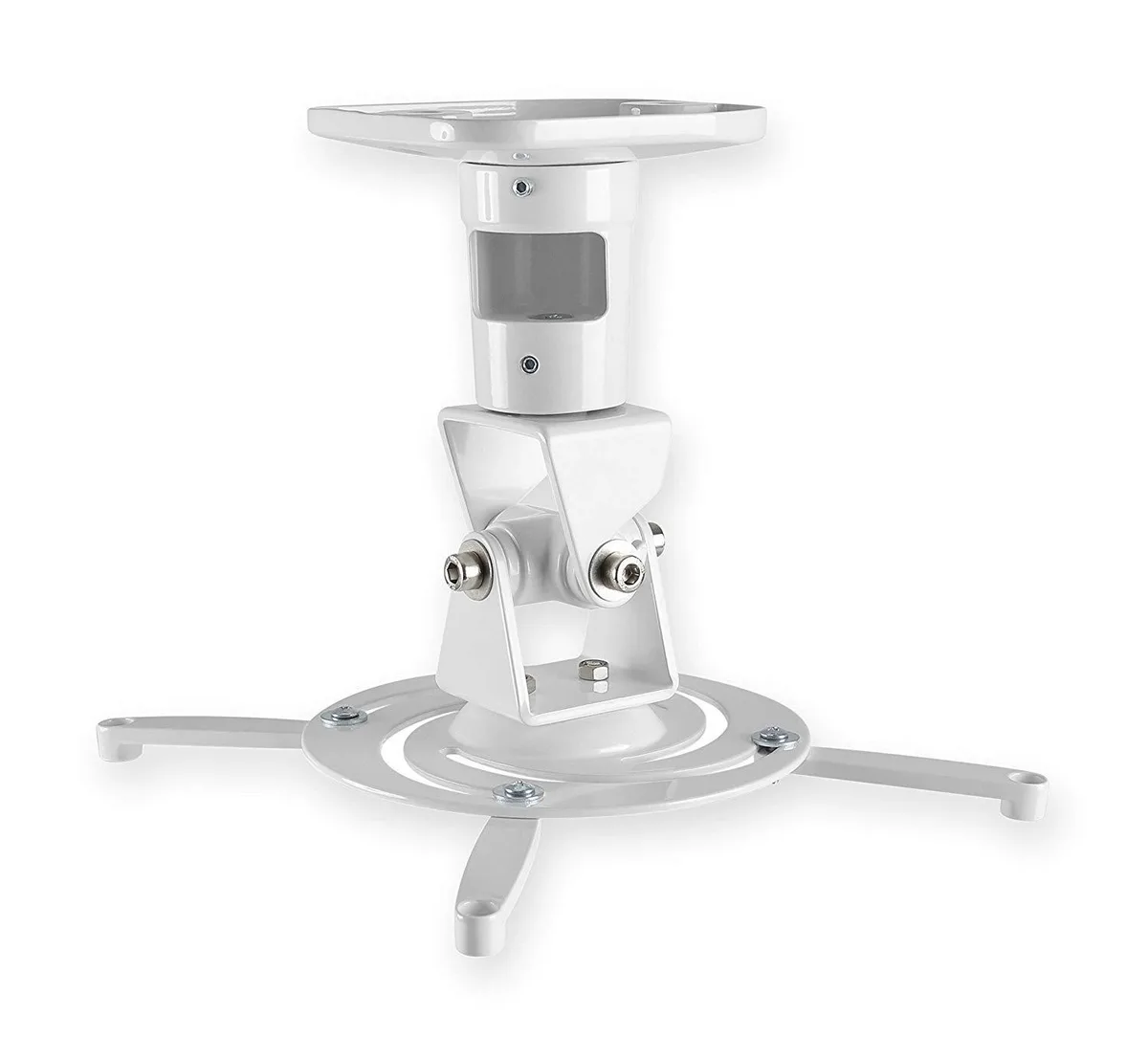

White cast-aluminium ceiling projector mount with four adjustable arms and tilt-swivel head

Amer Mounts

Amer Mounts Amrp100 Ceiling Projector Mount White 30 lbs 180° tilt 360° rotate

SKU CH-P4NG-RXHQK MPN Amrp100

Ceiling mount supports projectors up to 30 lbs with 180° tilt and 360° rotation

  • TypeCeiling Mount
  • SpecificationsDimensions: 6.70" x 8.60" x 6.70" Weight: 2.65 lbs. (1.2 kg)
  • Screen MaterialCast Aluminum
  • ColorWhite
  • FeaturesFast Disconnect Angle Free Tilt Universal Hardware Pack Incl
  • Supports projectors up to 30 lbs for secure installation
  • 180° tilt and 360° rotation enable precise image alignment
  • Cast aluminium construction dissipates heat while staying lightweight at 2.65 lbs
  • Fast-disconnect mechanism allows quick projector removal for maintenance
  • Universal arm design fits small, large and very large projectors

Universal ceiling mount for projectors

The Amer Mounts AMRP100 attaches to a ceiling and holds projectors weighing up to 30 lbs. Its universal spider design accepts three or four arms, fitting small units with tight mounting points and large units up to 12 inches wide. Optional extension arms increase reach to 15.7 inches for very large models.

Cast aluminium head with reinforced steel plate

The mounting head uses cast aluminium for strength and heat dissipation while the reinforced steel plate adds rigidity. A quick-disconnect feature lets you remove the projector without tools for maintenance or lamp changes. The included universal hardware pack supplies the fasteners needed for most installations.

180° tilt and swivel plus 360° rotation

Flexible alignment provides 180 degrees of pitch and yaw alongside 360 degrees of rotation, each with lock-down to hold the aimed position. The lightweight 2.65 lb mount adds minimal load to the ceiling structure. Optional extension tubes in 3, 6, 12 and 24 inch lengths allow precise drop-height adjustment.

Highlights

  • Supports projectors up to 30 lbs for secure installation
  • 180° tilt and 360° rotation enable precise image alignment
  • Cast aluminium construction dissipates heat while staying lightweight at 2.65 lbs
  • Fast-disconnect mechanism allows quick projector removal for maintenance
  • Universal arm design fits small, large and very large projectors

Specifications

BrandAmer Mounts
ModelAMRP100
TypeCeiling Mount

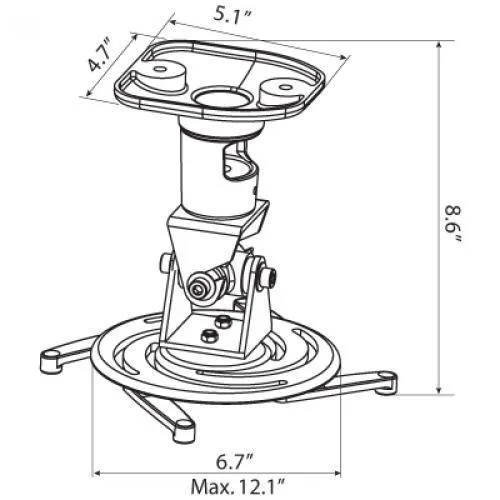

SpecificationsDimensions: 6.70" x 8.60" x 6.70"
Weight: 2.65 lbs. (1.2 kg)
Support Weight : 30 lbs. (13.61 kg)
Tilt: 180°
Swivel: 180°
Rotate: 360°
Screen MaterialCast Aluminum
ColorWhite
FeaturesFast Disconnect
Angle Free Tilt
Universal Hardware Pack Included
Shipping weight1.81 kg
Package size305 × 229 × 102 mm

Questions about this item

What does the 180° tilt and swivel let me adjust in practice?

The 180° pitch and yaw let you point the projector straight down or angled up to horizontal, and swivel it fully side-to-side for off-centre ceiling placement.

What are the 6.70" x 8.60" x 6.70" dimensions and 2.65 lb weight telling me about fit?

The compact cast-aluminium head measures 6.70 by 8.60 by 6.70 inches and weighs 2.65 lbs, so it fits between standard ceiling joists and adds minimal load.

How do I use the universal hardware pack and spider plate during installation?

Bolt the spider plate to the projector first — three arms for small units, four for large — then snap the plate onto the ceiling head; people often forget to tighten the lock-down screws after aiming.
