Altronix Pace1PRMT long-range Ethernet over UTP kit with receiver and transceiver units

ALTRONIX

ALTRONIX PACE1PRMT Long Range Ethernet over UTP/CAT5e Kit 100Mbps PoE+

SKU CH-316V-71F10 MPN PACE1PRMT

Transmits 100Mbps Ethernet and PoE+ power over a single twisted-pair or Cat5e cable beyond 100 metres

  • Compatible BrandPace1PRMT
  • Device TypeEthernet Single Port Adapter Kit
  • Extends IP devices beyond 100 m over a single twisted pair
  • Delivers 100 Mbps full-duplex data plus PoE+ power on one cable
  • Receiver draws power from a PoE midspan or endspan
  • Transceiver forwards PoE+ to the connected IP camera or device
  • Plug-and-play kit replaces legacy analog runs with IP equipment

Long Range Ethernet Kit 100Mbps PoE+

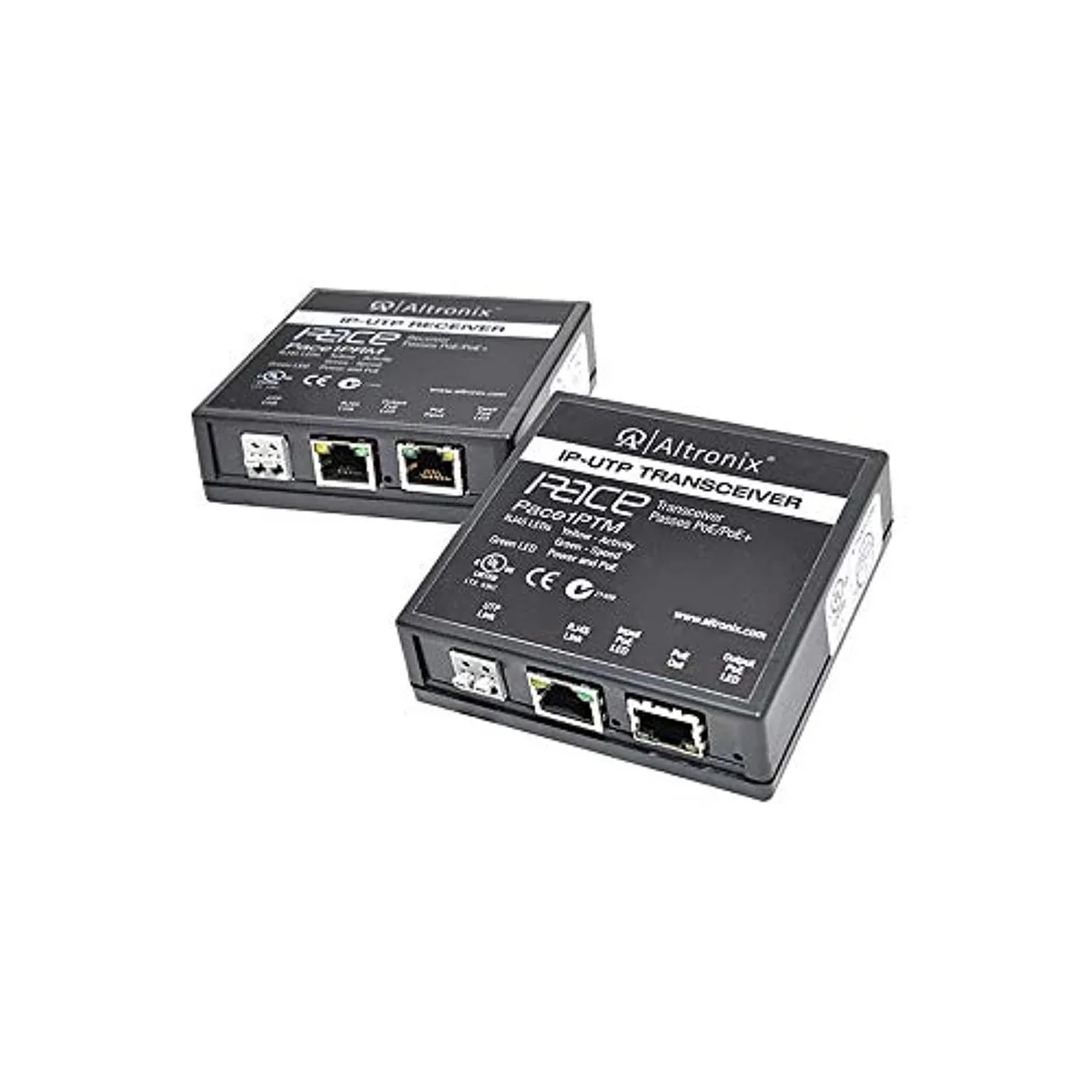

The ALTRONIX PACE1PRMT kit contains a receiver and a transceiver that deliver 100Mbps full-duplex data and PoE+ power over a single twisted pair or Cat5e cable. It is built for installers who need to place IP cameras or other powered devices beyond the standard 100m Ethernet limit.

Distance and Power Constraints

The link runs at 100Mbps and passes PoE+ power from the receiver to the transceiver, so the remote device receives both data and power over one cable run. The receiver itself must be fed by a PoE midspan or endspan, and the system is limited to the bandwidth and power budget of the PoE+ standard.

Plug and Play Installation

The units are plug and play with no configuration required, making deployment straightforward for retrofit projects that replace legacy analog cabling. Installers must ensure the midspan or endspan supplies sufficient PoE+ power and that the single twisted pair or Cat5e cable is continuous and undamaged, as faults in the cable will break both data and power delivery.

Highlights

  • Extends IP devices beyond 100 m over a single twisted pair
  • Delivers 100 Mbps full-duplex data plus PoE+ power on one cable
  • Receiver draws power from a PoE midspan or endspan
  • Transceiver forwards PoE+ to the connected IP camera or device
  • Plug-and-play kit replaces legacy analog runs with IP equipment

Specifications

BrandAltronix
Model0XP-00BG-00001
Part NumberPace1PRMT
Compatible BrandPace1PRMT
Device TypeEthernet Single Port Adapter Kit
Shipping weight0.45 kg
Package size25 × 25 × 25 mm

Questions about this item

Should I choose the kit or buy the receiver and transceiver separately?

The Pace1PRMT kit includes both the Pace1PRM receiver and the Pace1PTM transceiver, so a single purchase provides the complete long-range link.

What does the 100Mbps full-duplex rating mean for my IP camera?

It delivers 100 megabits per second in each direction simultaneously, giving the camera steady bandwidth for video streaming at distances beyond 100 metres.

Which PoE standard does the single twisted-pair link support?

The link passes PoE and PoE+ compliant power from the receiver to the transceiver, which then powers the connected IP device.
