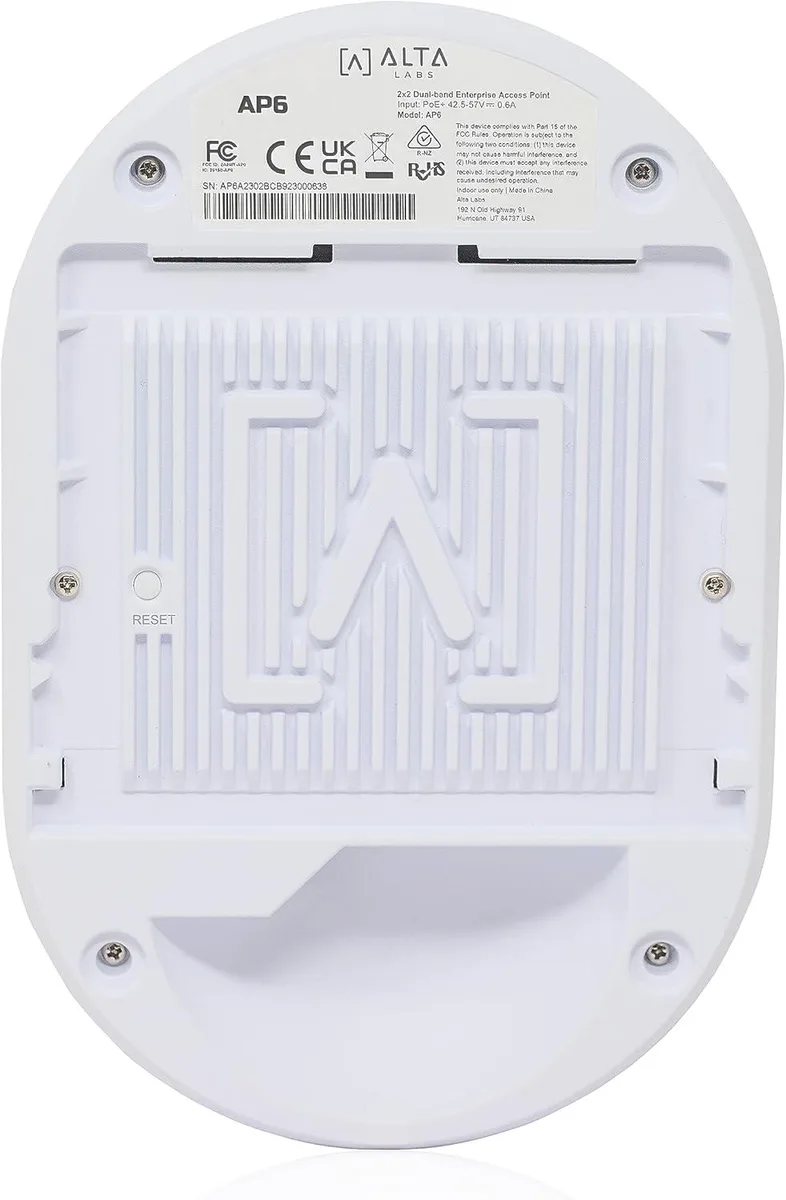

White rectangular WiFi 6 access point with smooth matte finish and rounded edges

Alta Labs

Alta Labs AP6 WiFi 6 access point

SKU CH-78PG-TZMP8

Dual-band WiFi 6 access point delivering up to 3 Gbps with cloud management, content filtering and IP54-rated durability

  • ColorWhite
  • Standards802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6)
  • Device Management(1) GbE RJ45 Port
  • Wireless Data Rates2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 2.4 Gbps
  • SecurityWPA2-PSK, WPA2-SAE, WPA-Enterprise (WPA2/WPA3)
  • Antenna2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi
  • Dual-band WiFi 6 delivers up to 3 Gbps throughput

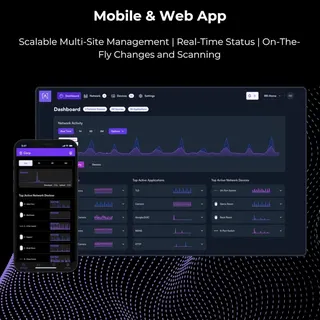

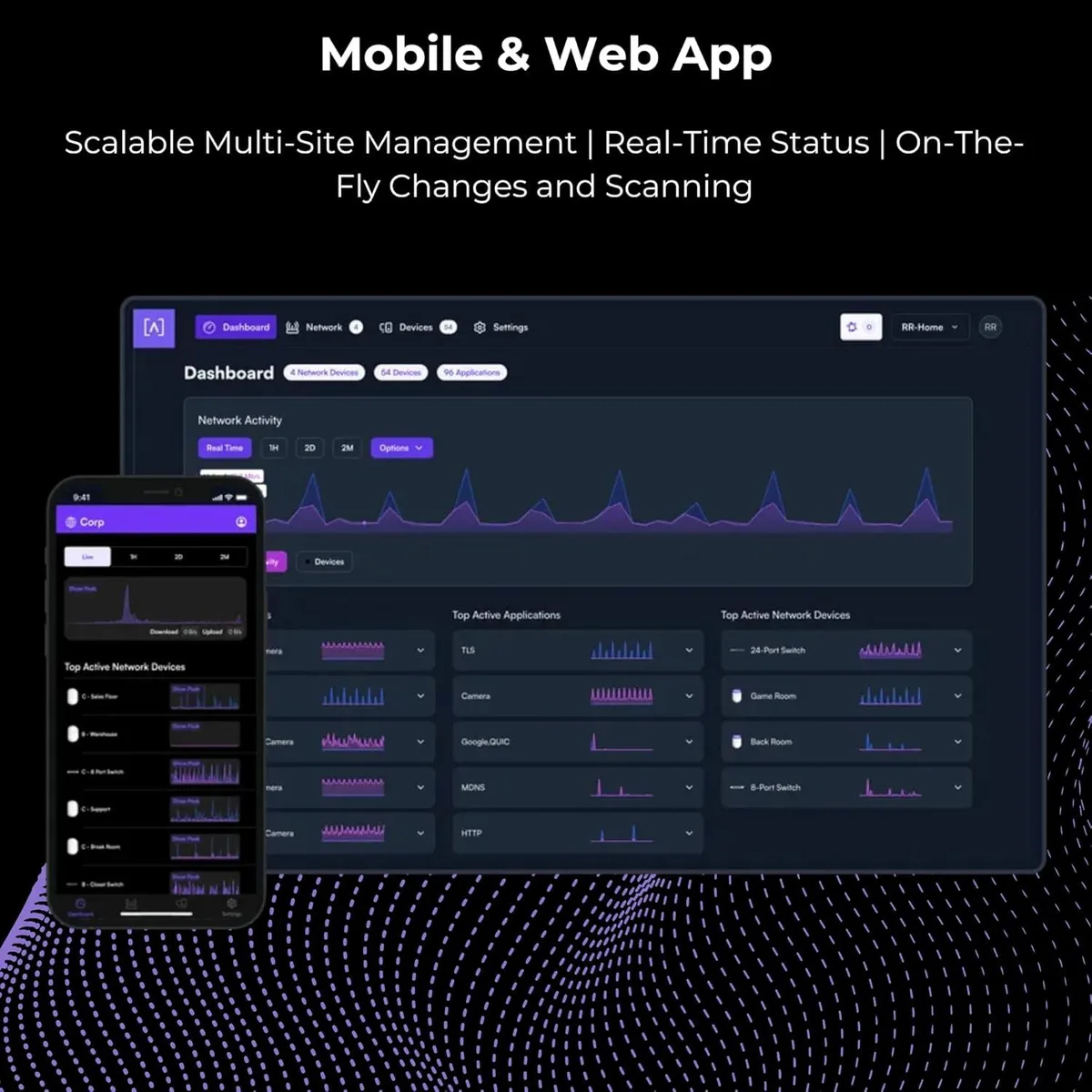

  • Cloud-managed platform enables remote configuration via browser or mobile app
  • IP54-rated enclosure protects against dust and water ingress
  • POE+ power simplifies installation with a single Ethernet cable
  • Content filtering and DPI engine provide granular network control

Dual-band WiFi 6 access point

The Alta Labs AP6 is a dual-band wireless access point built on the 802.11ax standard, delivering WiFi 6 performance for commercial and residential networks. It connects via a single gigabit Ethernet port and is powered entirely through POE+, simplifying installation where power outlets are unavailable. Cloud-based management is included, accessible through a browser or mobile app for remote configuration and monitoring.

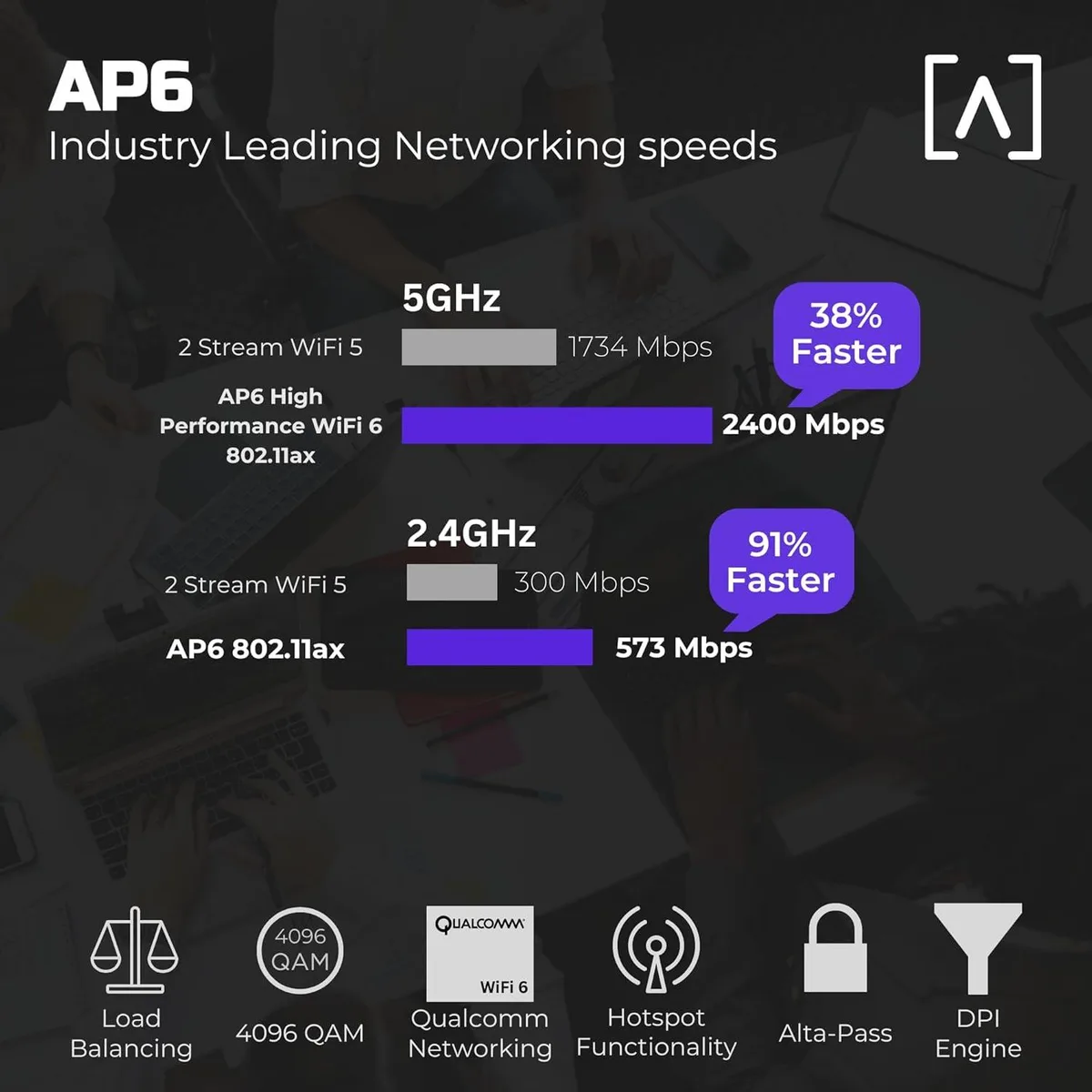

3 Gbps aggregate throughput with 2x2 MIMO

The 5 GHz radio reaches up to 2.4 Gbps using 2x2 MIMO with DL/UL MU-OFDMA and explicit transmit beam-forming, while the 2.4 GHz radio provides up to 573 Mbps with 2x2 MIMO and DL/UL MU-OFDMA. Both bands transmit at 23 dBm with antenna gains of 4.1 dBi and 4.0 dBi respectively. Typical power draw sits between 5 and 12 watts, peaking at 20 watts maximum.

Gigabit Ethernet backhaul and IP54 rating

The single GbE RJ45 port caps wired backhaul at 1 Gbps, which can become the bottleneck when aggregate wireless traffic approaches the 3 Gbps rating. The IP54-rated enclosure protects against limited dust ingress and water splashes, making it suitable for covered outdoor areas but not direct exposure. Buyers needing multi-gigabit uplinks or full outdoor ruggedisation should consider other models.

Highlights

  • Dual-band WiFi 6 delivers up to 3 Gbps throughput
  • Cloud-managed platform enables remote configuration via browser or mobile app
  • IP54-rated enclosure protects against dust and water ingress
  • POE+ power simplifies installation with a single Ethernet cable
  • Content filtering and DPI engine provide granular network control

Specifications

BrandAlta Labs
ModelAP6
Part NumberAP6
ColorWhite
Standards802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6)
Device Management(1) GbE RJ45 Port
Wireless Data Rates2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 2.4 Gbps
SecurityWPA2-PSK, WPA2-SAE, WPA-Enterprise (WPA2/WPA3)
Antenna2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi
Transmitted Power2.4 GHz: 23 dBm @2NSS, 5 GHz: 23 dBm @2NSS
ButtonsReset / Factory Reset
BluetoothYes
MIMO5 GHz: 2 x 2, UL MU-MIMO (in STA mode), DL/UL MU-OFDMA
2.4 GHz: 2 x 2, DL/UL MU-OFDMA
Explicit TX beam-forming
VLAN802.1Q
Power SupplyPOE+
Max Power Consumption20W Max, 5 - 12W Typical @ 23° C (73° F)
Dimensions7.5" x 4.9" x 1.25"
Weight.9lb

Questions about this item

Will the AP6 work with my existing 802.11n router and client devices?

Yes, the AP6 supports 802.11a/b/g/n/ac/ax standards so it operates alongside WiFi4 and WiFi5 hardware on both 2.4 GHz and 5 GHz bands.

How can I verify the AP6 is delivering the rated 573 Mbps on 2.4 GHz and 2.4 Gbps on 5 GHz after installation?

Use the Alta Labs cloud dashboard or mobile app to view real-time client throughput, signal strength, and band utilisation for each connected device.

Does the AP6 package include a PoE+ injector or power adapter, or must I buy one separately?

The AP6 is powered via PoE+ only; no injector or AC adapter is included, so you must supply a compliant PoE+ switch or midspan injector.
