Yellow duplex fibre patch cable with LC connectors on both ends, 30 metre length

ALSEYE

ALSEYE OM4 LC-LC Fiber Patch Cable 30M 2 in 1 accessory

SKU CH-TD3Y-ECPVR

A 30M OM4 duplex fiber patch cable with LC connectors supports 10G, 40G and 100G Ethernet up to 300M at 850nm and features a 7.5mm bend radius

  • Supports 10G, 40G and 100G Ethernet links
  • 30 metre OM4 duplex cable for high-density installs
  • 2000 MHz·km bandwidth at 850 nm wavelength
  • 5 mm bend radius suits tight cabinet routing
  • LSZH jacket with low 0.3 dB insertion loss

30-metre OM4 LC-LC duplex patch cable

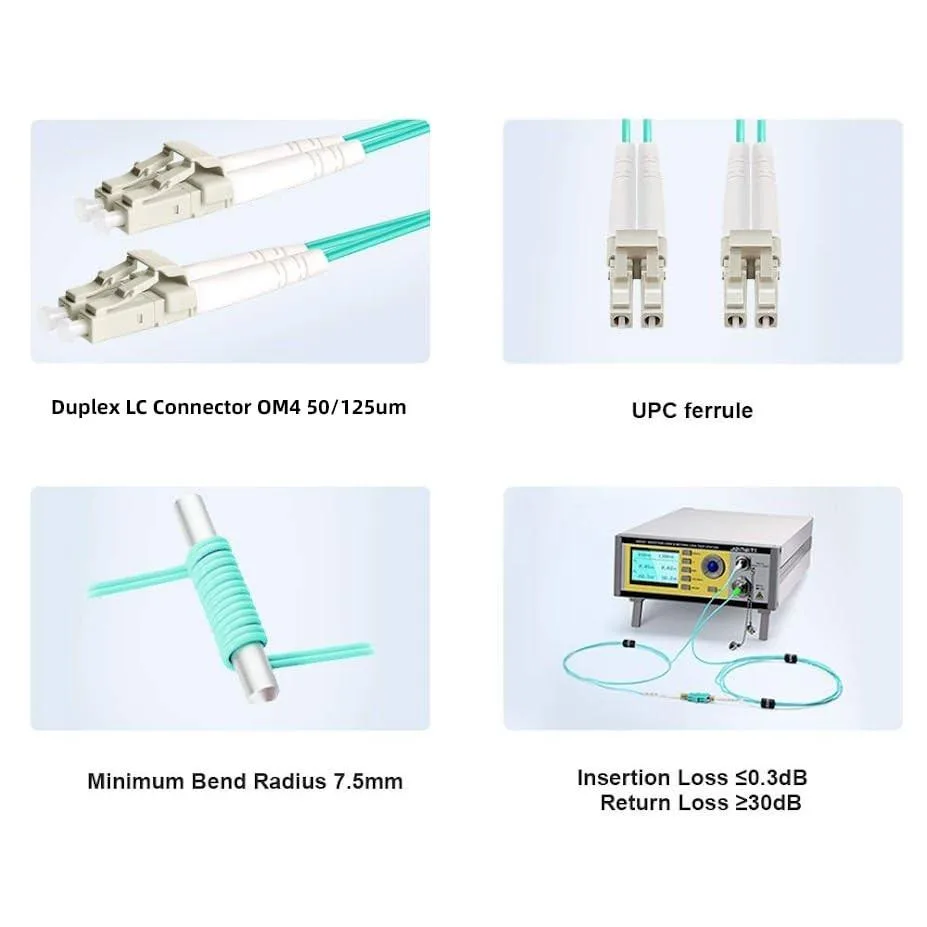

This 30-metre OM4 multimode fibre patch cable uses LC duplex connectors and a 50/125 µm core/cladding. It supports 10, 40 and 100 gigabit Ethernet links at 850 nm and is rated for 2000 MHz·km bandwidth. The LSZH jacket meets low-smoke, zero-halogen requirements for indoor installations.

Verify transceiver and port compatibility before

Confirm that your switches, routers or servers accept LC duplex interfaces and OM4 multimode fibre. Check that the link budget fits within the stated insertion loss of 0.3 dB and return loss of 30 dB. Ensure the 7.5 mm minimum bend radius suits your cabinet routing and that the 30-metre length matches the planned run.

Replaces older OM1, OM2

Upgrading from legacy multimode cables extends reach at 10, 40 and 100 gigabit rates — 300 metres at 10 and 40 gigabit, 200 metres at 100 gigabit. The tighter bend radius and lower loss help dense cabinet deployments where many cables share limited space. Not suited for single-mode infrastructure or links beyond the listed distance limits.

Highlights

  • Supports 10G, 40G and 100G Ethernet links
  • 30 metre OM4 duplex cable for high-density installs
  • 2000 MHz·km bandwidth at 850 nm wavelength
  • 5 mm bend radius suits tight cabinet routing
  • LSZH jacket with low 0.3 dB insertion loss

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the pack and do I need separate transceivers?

The pack contains one 30 metre OM4 LC duplex patch cable with LSZH jacket. Transceivers such as SFP+ or QSFP+ modules are not included and must be purchased separately.

Which OM4 distance rating matches a 40G link of 300 metres at 850 nm?

The cable supports 40G Ethernet up to 300 metres at 850 nm, so a 30 metre run is well within that limit.

What does the 2000 MHz·km bandwidth figure mean for a 30 metre installation?

At 30 metres the 2000 MHz·km bandwidth provides ample headroom for 10G, 40G and 100G signals with insertion loss of 0.3 dB and return loss of 30 dB.
