Single-DIN 24 V stereo head unit with rubberised controls and ISO 16-pin connector

ALSEYE

ALSEYE 24V 1DIN ISO Stereo Radio Bluetooth TR-7423

SKU CH-BQEH-B7MY5

A 24 V single-DIN stereo radio with Bluetooth streaming and hands-free calling that plugs directly into a 16-pin ISO harness for tractors, excavators, trucks and buses

  • 24 V operation suits heavy-duty tractors and trucks
  • Direct plug-and-play fit into 16-pin ISO harness
  • AM/FM radio with Bluetooth music streaming and hands-free calls
  • Rubberised knobs and buttons built for rugged use
  • Backup memory and RDS keep stations and settings stored

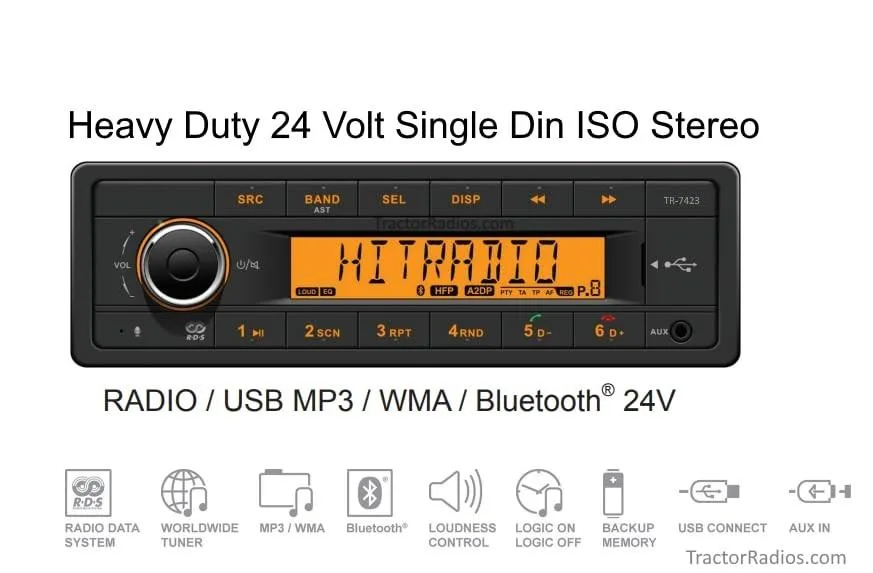

ALSEYE 24V 1DIN ISO Stereo Radio TR-7423

This 1DIN stereo radio operates on 24 volt electrical systems found in tractors, excavators, trucks and buses. It connects directly to a 16 pin ISO harness for plug and play installation. The unit is built for heavy duty use with rubberized knobs and buttons designed to withstand vibration and harsh environments.

18-32 volt DC power range and backup memory

The radio requires 18 to 32 volts DC across the battery and ground wires to power on and will not function on 12 volt systems. Backup memory retains station presets and settings when the vehicle ignition is turned off. Direct wiring eliminates the need for additional voltage converters during normal operation.

Bluetooth streaming, hands-free calling and RDS

Integrated Bluetooth enables wireless music streaming and hands-free phone calls while operating machinery. RDS provides station information on compatible FM broadcasts. A separate 16 pin harness (item TR-1341) is available if the installer prefers not to modify the original vehicle wiring.

Highlights

  • 24 V operation suits heavy-duty tractors and trucks
  • Direct plug-and-play fit into 16-pin ISO harness
  • AM/FM radio with Bluetooth music streaming and hands-free calls
  • Rubberised knobs and buttons built for rugged use
  • Backup memory and RDS keep stations and settings stored

Specifications

No published specifications for this item yet.

Questions about this item

How do I plug the TR-7423 into the 16-pin ISO harness without cutting wires?

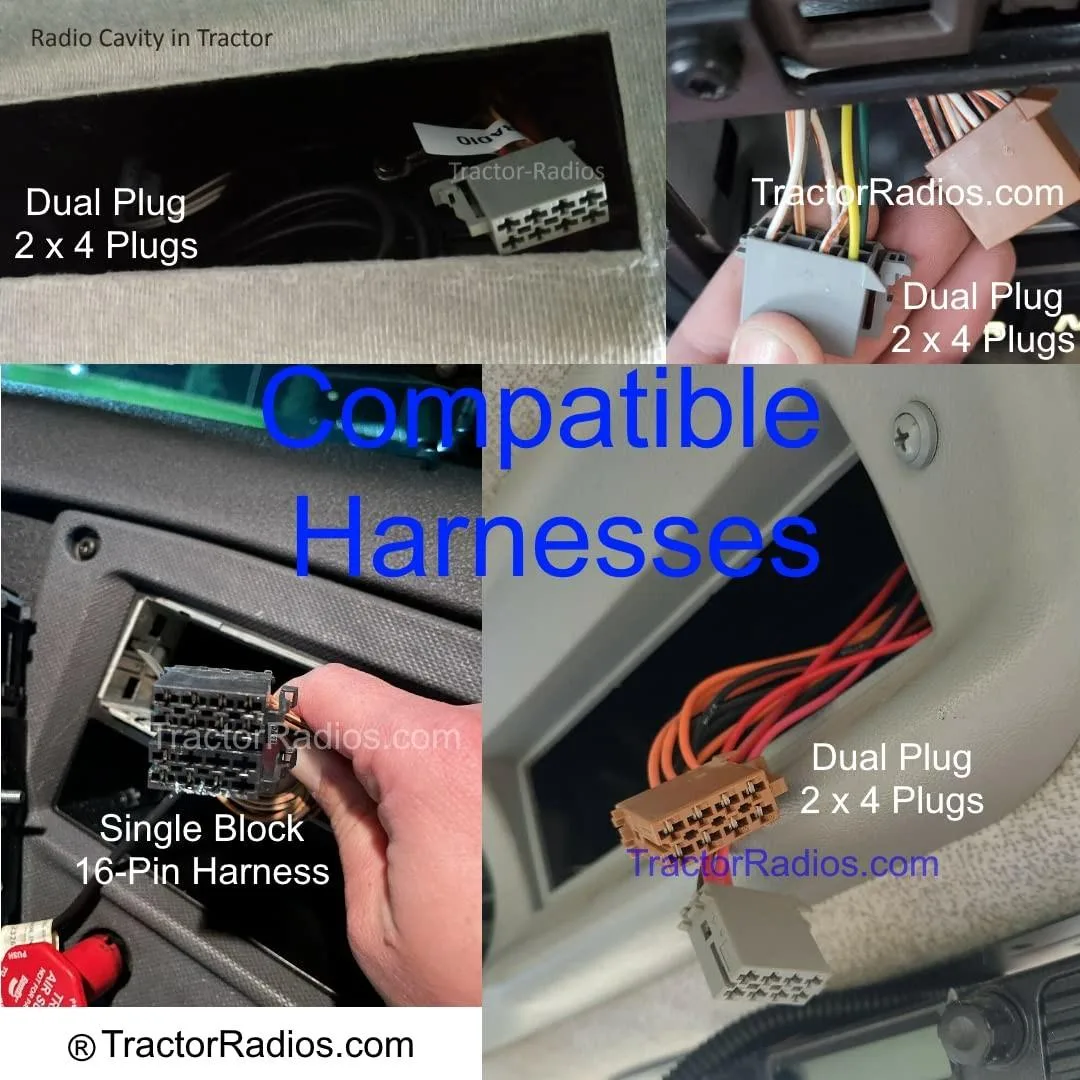

Use the optional TR-1341 pigtail harness; it mates the radio to the factory 16-pin block or 2 x (2x4 pin) connector so no splicing is required.

What voltage must the vehicle supply for the TR-7423 to power on?

The unit only turns on when 18-32 volts DC is present across the yellow battery and black ground wires; a 12 volt system will not work.

Which component fails first if the supply voltage drifts outside the 18-32 V range?

The radio simply will not power on; it has no internal step-down and shuts down completely when voltage falls below 18 V or exceeds 32 V.
