Alphacool 5.5 inch 1000 nit Touchscreen 2 in 1 accessory
5.5 inch 1000 nit touchscreen monitor with HDMI in/out, wireless transmit up to 500 ft, 0.1 s latency and dual Sony L-series battery slots
- Daylight-viewable 5.5 inch touchscreen at 1000 cd/m brightness
- HDMI in and out with 3.5 mm headphone jack for monitoring
- Wireless transmit up to 500 ft to RX with 0.1 s latency
- Fanless 8 W design keeps audio recording silent
- Dual Sony L-series battery slots support hot-swap power

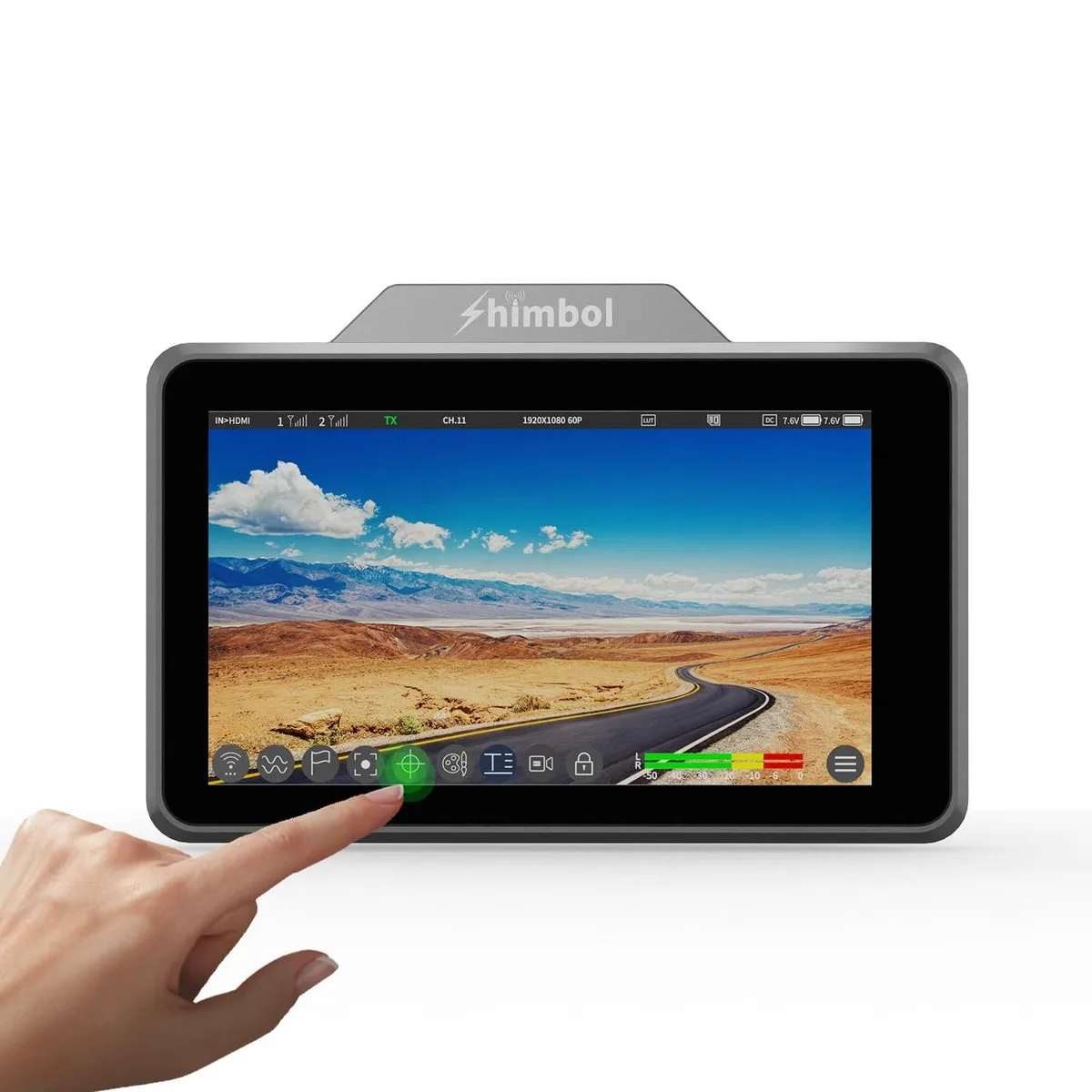

5.5 inch 1000 nit Touchscreen Monitor
This 5.5 inch touchscreen monitor delivers 1000 cd/m brightness and 1920 x 1080 resolution for daylight viewing. It functions as a wireless transmitter or receiver for DSLR camera workflows. The unit supports HD MP4 recording and playback up to 1080p60. It suits videographers needing portable monitoring with touch control.
Fanless 8W Design Silent Operation
The monitor draws 8W with no fans ensuring silent operation during audio recording. Dual Sony L-Series battery slots such as F550 allow hot swap power supply. A DC input provides continuous power. The 3.5 mm stereo headphone jack enables direct audio monitoring without added noise.
HDMI In Out Wireless 500ft Range
HDMI input and output pass signals through while supporting a variety of log formats. Wireless transmission reaches 500ft to a receiver and 300ft to an iOS app with 0.1s latency. The 1/4"-20 mounting thread attaches to rigs. One transmitter can serve multiple receivers plus an app simultaneously.
Highlights
- Daylight-viewable 5.5 inch touchscreen at 1000 cd/m brightness
- HDMI in and out with 3.5 mm headphone jack for monitoring
- Wireless transmit up to 500 ft to RX with 0.1 s latency
- Fanless 8 W design keeps audio recording silent
- Dual Sony L-series battery slots support hot-swap power
Specifications
No published specifications for this item yet.
Questions about this item
How do I mount the 5.5 inch 1000 nit touchscreen and which step is often missed?
Attach it via the 1/4"-20 mounting thread on a cage or arm, then connect HDMI input and power; the step often missed is selecting TX or RX mode before pairing.
What power sources will need replacing during long shoots?
Dual Sony L-Series battery slots (such as F550) support hot-swap; DC input is the alternative if you prefer mains power.
At what distance does the wireless link to the receiver start to degrade?
Wireless transmission reaches up to 500" to the receiver; beyond that range the 0.1 s low-latency 1080p60 signal may drop.
