ALITOVE WS2811 12V 300 LED 16.4ft IP65 Light Kit
Individually addressable 12 V LED strip with 300 RGB 5050 LEDs in 100 WS2811 IC groups, IP65 waterproof, 72 W max, 3M VHB tape, JST-SM connectors, Arduino and Raspberry Pi compatible
- CollectionALITOVE
- Product nameALITOVE AL2811BK300IP65
- featuresLED
- country of originALITOVE
- careoutdoor
- weight0.22 kilograms
- Individually addressable groups create complex colour animations
- 300 RGB LEDs driven by 100 WS2811 ICs
- IP65 silicone coating protects against water jets
- 3M VHB foam tape holds firmly on most surfaces
- Compatible with Arduino, Raspberry Pi and SP-series controllers
Programmable LED strip kit

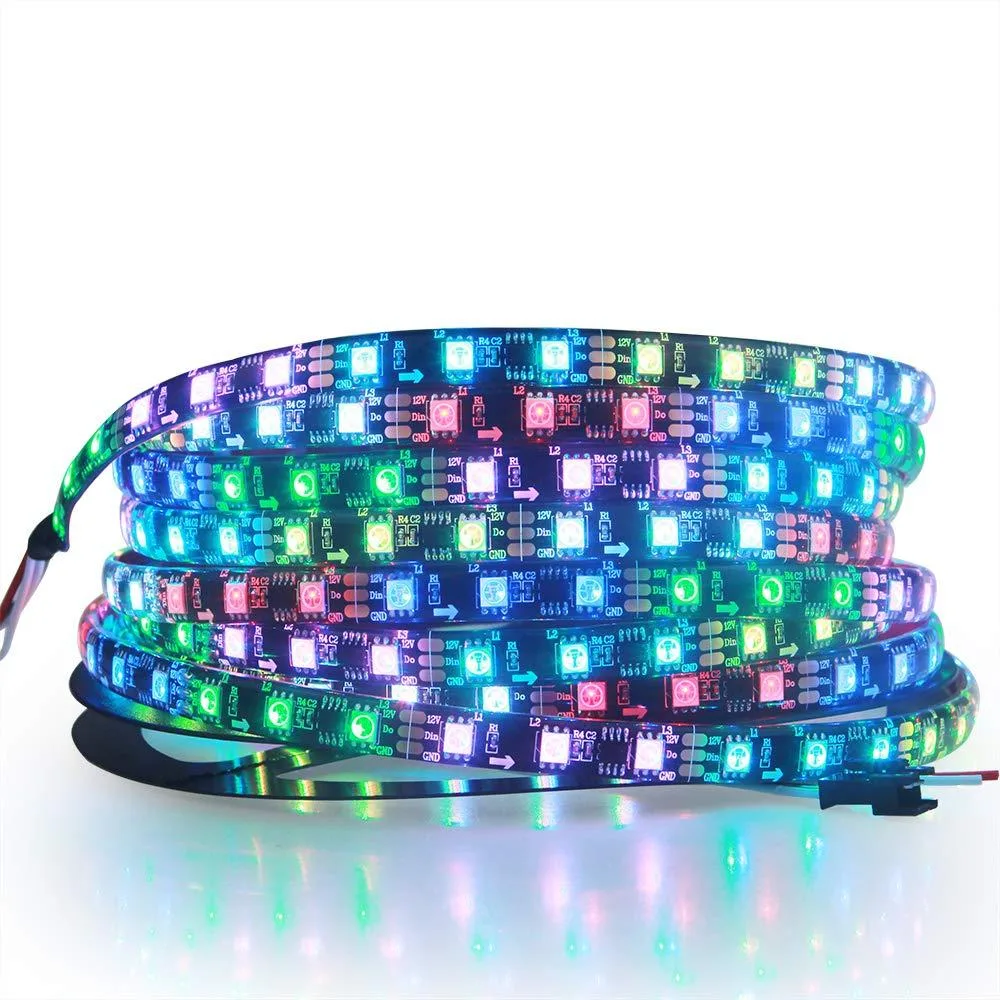

This addressable WS2811 light kit contains 300 RGB 5050 LEDs along a 16.4ft flexible strip. Each group of three LEDs is driven by one WS2811 IC so colours and animations can be set individually. The strip is designed for indoor and outdoor decorative projects such as architectural outlines, signage and event lighting.
12 V power requirement

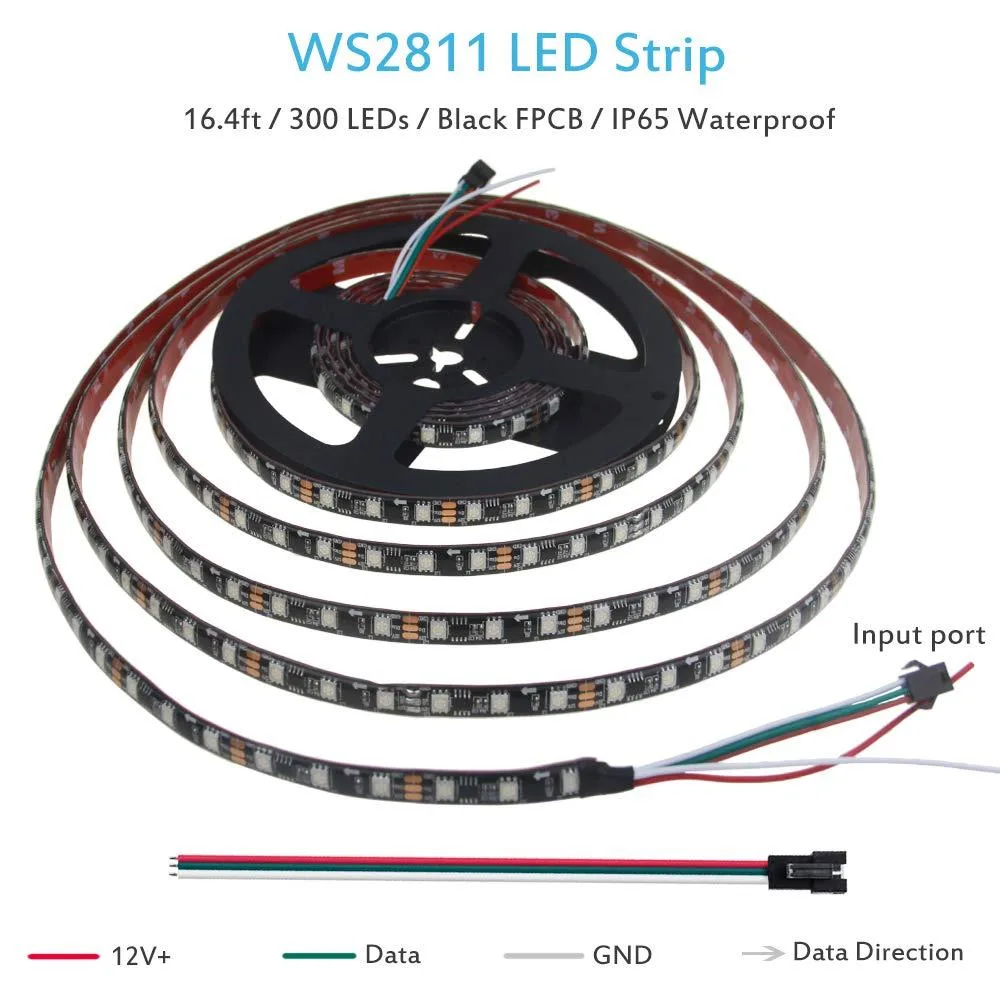

The strip operates at 12 volts and draws up to 6 amps, consuming 72 watts per full roll. A compatible 12 V DC power supply capable of at least 6 A must be provided separately because no adapter is included. Separate power and ground wires on both ends allow power injection for longer runs.
IP65 silicone coating

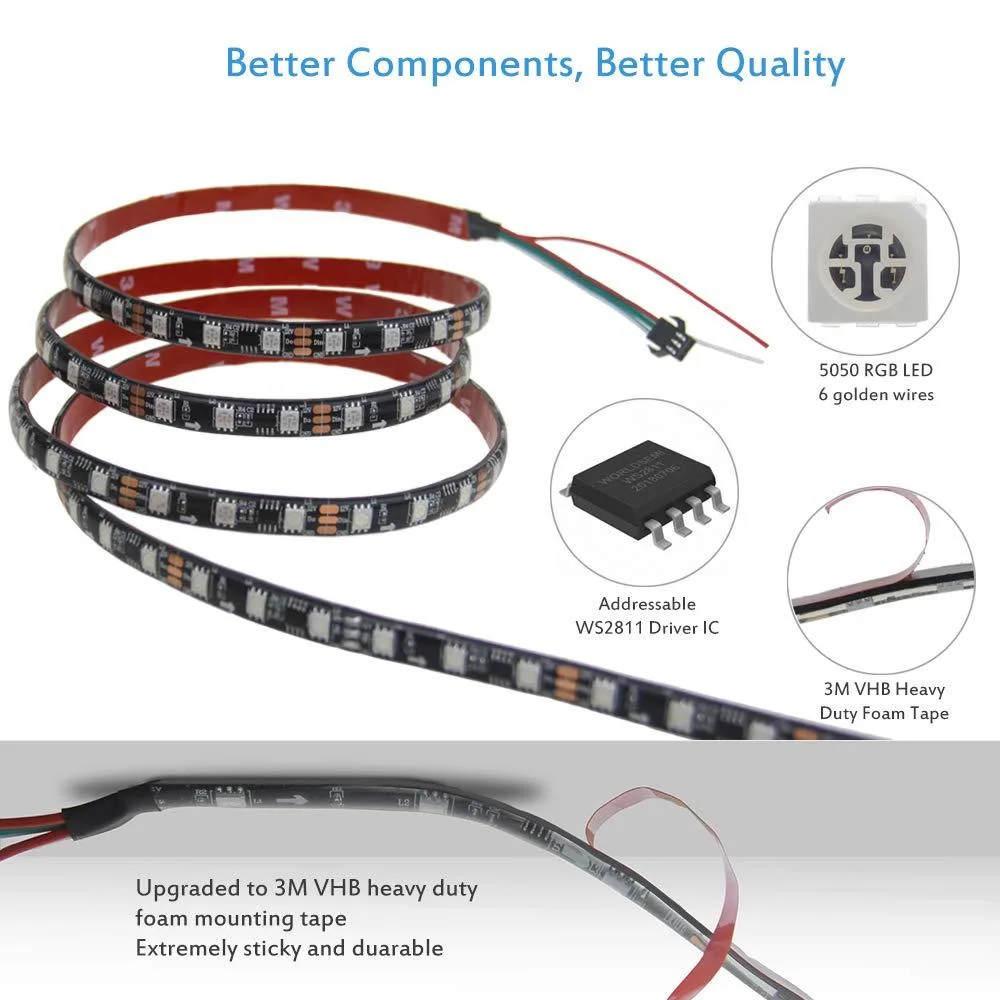

A clear silicone sleeve gives the strip an IP65 rating, protecting the LEDs and ICs from dust and low-pressure water jets. The coating adds minimal bulk while allowing the strip to be cut and re-soldered at the marked cutting lines. 3M VHB foam tape on the back provides a strong bond to clean surfaces in typical ambient temperatures.
Highlights
- Individually addressable groups create complex colour animations
- 300 RGB LEDs driven by 100 WS2811 ICs
- IP65 silicone coating protects against water jets
- 3M VHB foam tape holds firmly on most surfaces
- Compatible with Arduino, Raspberry Pi and SP-series controllers
Specifications
| Brand | ALITOVE |
|---|---|
| Model | AL2811BK300IP65 |
| Collection | ALITOVE |
| Product name | ALITOVE AL2811BK300IP65 |
| features | LED |
| country of origin | ALITOVE |
| care | outdoor |
| weight | 0.22 kilograms |
| description | ALITOVE, Full Color, SMD-5M-300LED-12V |
| Part Number | AL2811BK300IP65 |
| finish | Black |
| glass | Plastic |
| size | SMD-5M-300LED-12V |
| type of bulb | LED |
| voltage | 12 volts |
| electrical usage (watts) | 72 watts |
| certification | has_fcc_id, 2ATV8SP11XE |
| installation | LED Strip, Male 3PIN JST connector, DC, outdoor |
| usage | Indoor / Outdoor |
| control type | touch |
| style | Black FPCB IP65 |
Questions about this item
What does 300 LEDs across 16.4 ft look like once the strip is powered?
The roll contains 300 5050 RGB LEDs spaced at 60 per metre, grouped in threes with one WS2811 IC per group, so each 5 cm segment can show its own 24-bit colour.
How does the WS2811 data line limit the maximum length I can drive from one controller?
Data runs at 800 Kbps with a 2 KHz scan rate; the 100 ICs on the 5 m roll stay within spec, but longer chains need power injection and may require a faster controller.
What mounting surface and clearance does the 10 mm wide IP65 strip need?
The 3M VHB foam tape adheres to clean flat surfaces; the silicone-jacketed strip measures 10 mm wide by 3 mm thick, so allow at least that channel depth.
