AJA OG-FS-Mini openGear card with SDI and HDMI connectors

Aja Video Systems

AJA OG-FS-Mini 3G-SDI Frame Synchronizer

SKU CH-1Z6E-S2KHK

An openGear frame synchronizer that aligns untimed 3G-SDI, HD and SD signals to an external reference with 10-bit processing and simultaneous SDI and HDMI outputs

  • Frame-syncs untimed video to house reference
  • 10-bit processing keeps colour depth intact
  • One-frame latency preserves live timing
  • Simultaneous SDI and HDMI outputs
  • openGear card fits high-density 2RU frames

OpenGear Frame Synchronizer

The AJA OG-FS-Mini is a 3G-SDI utility frame synchronizer built for openGear frames. It time-aligns untimed SDI signals to an external bi-level or tri-level reference with 10-bit processing and a nominal one-frame latency. Simultaneous SDI and HDMI outputs plus balanced analog audio on two 3-pin terminal blocks suit broadcast and live-event workflows.

Broadcast engineers and live-production teams

Facilities that need fiber I/O, higher bandwidth than 3G-SDI or embedded audio routing must evaluate larger frame synchronizers. Operations without an openGear frame or Dashboard control environment cannot use the card. Users requiring multi-channel processing or redundant power supplies should look at modular frame solutions.

3G-SDI and HDMI simultaneous output

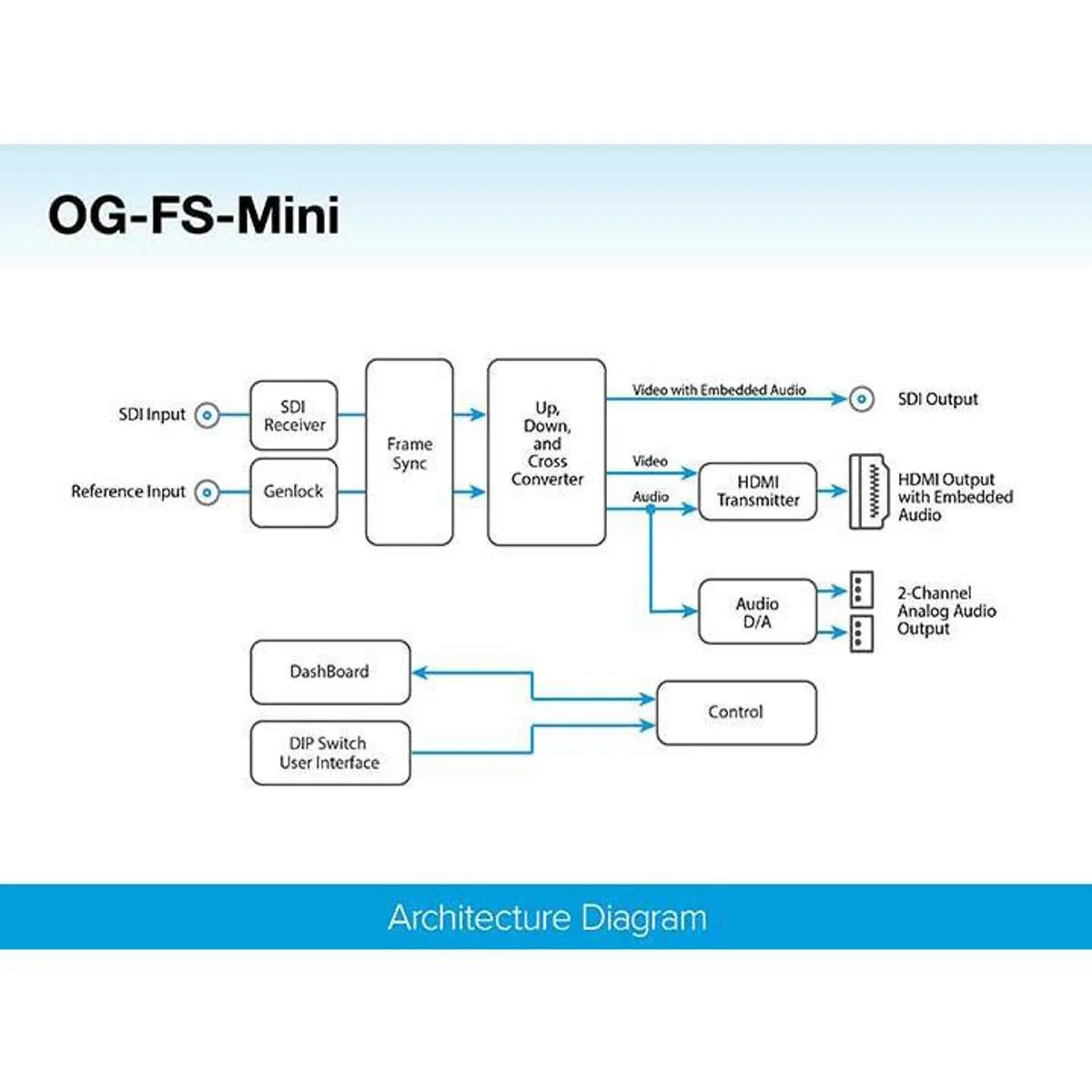

A single 3G-SDI input feeds both an SDI output for production and an HDMI output for monitoring. The card handles 1080p, 1080i, 720p, 625i and 525i formats with up, down and cross-conversion. Freeze on signal loss defaults to black or last good frame. Remote configuration is managed through Dashboard software on Windows, macOS or Linux.

Highlights

  • Frame-syncs untimed video to house reference
  • 10-bit processing keeps colour depth intact
  • One-frame latency preserves live timing
  • Simultaneous SDI and HDMI outputs
  • openGear card fits high-density 2RU frames

Specifications

No published specifications for this item yet.

Questions about this item

How much video delay does the frame sync add in a live chain?

Nominal latency is one frame, so the signal arrives one frame later than the source.

What reference standards can the card lock to?

It accepts both bi-level and tri-level reference signals for house timing.

What rack hardware is required to mount the card?

An openGear 2RU frame such as the OG-X-FR provides the slot and power.
