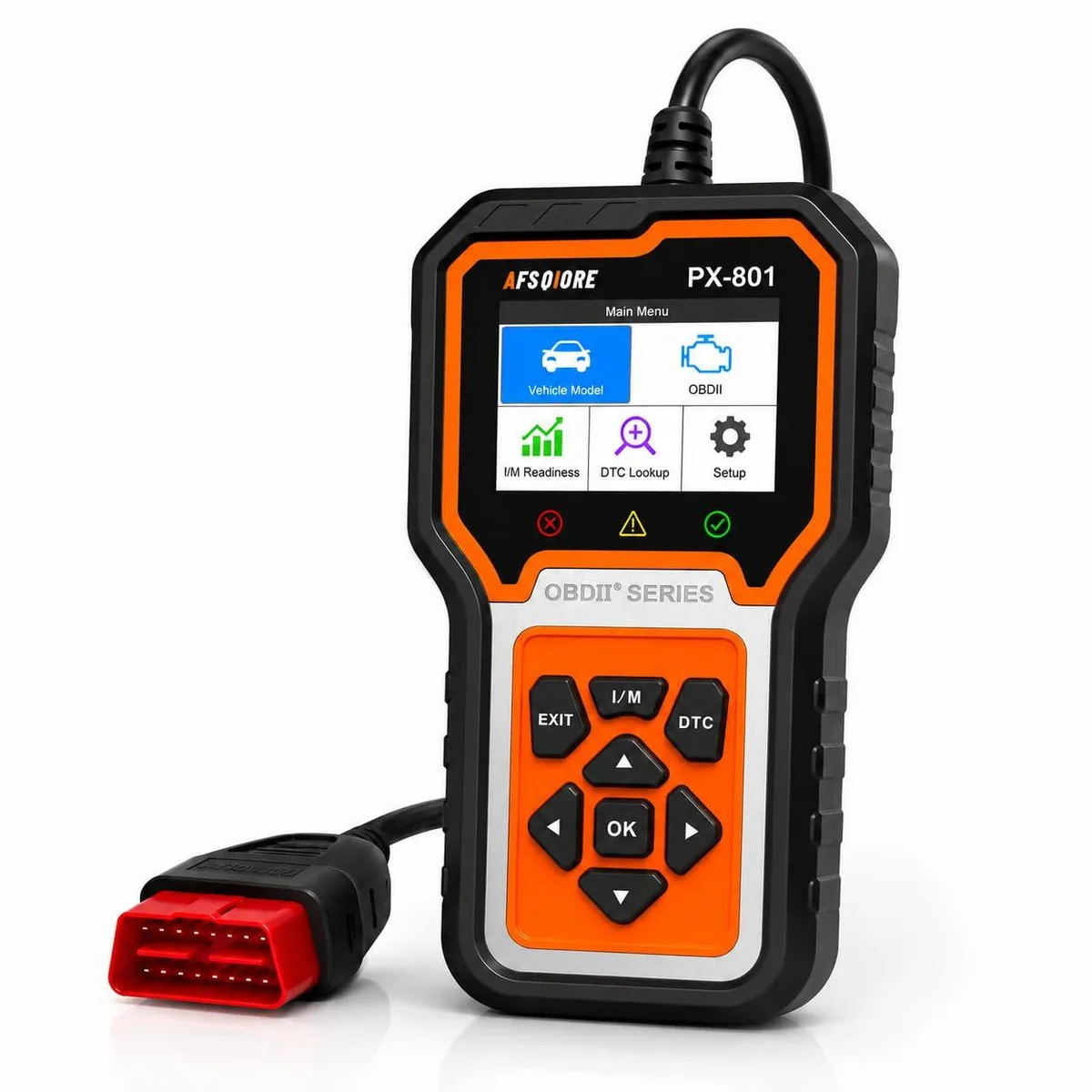

Black rectangular handheld OBD2 scanner with display and cable

AFS QIORE PX-801 Engine Tool 7.67 x 4.17 x 1.37 in

SKU CH-ZBN1-Z0BC4 MPN PX-801

Full-system diagnostics for Toyota, Honda and Lincoln plus universal OBD2 engine scanning with a 100,000+ code database

  • ColorBlack
  • FeaturesCorded Electric, Windows 7
  • Height7.67 L x 4.17 W x 1.37 H inches
  • Width7.67 L x 4.17 W x 1.37 H inches
  • Full-system diagnostics for Toyota 1996-2024 models
  • Professional-grade chip detects hidden fault codes early
  • All OBDII protocols supported on 16-pin vehicles
  • 100000+ code database with definitions included
  • 37 technical patents back diagnostic accuracy

Vehicle Diagnostics Tool

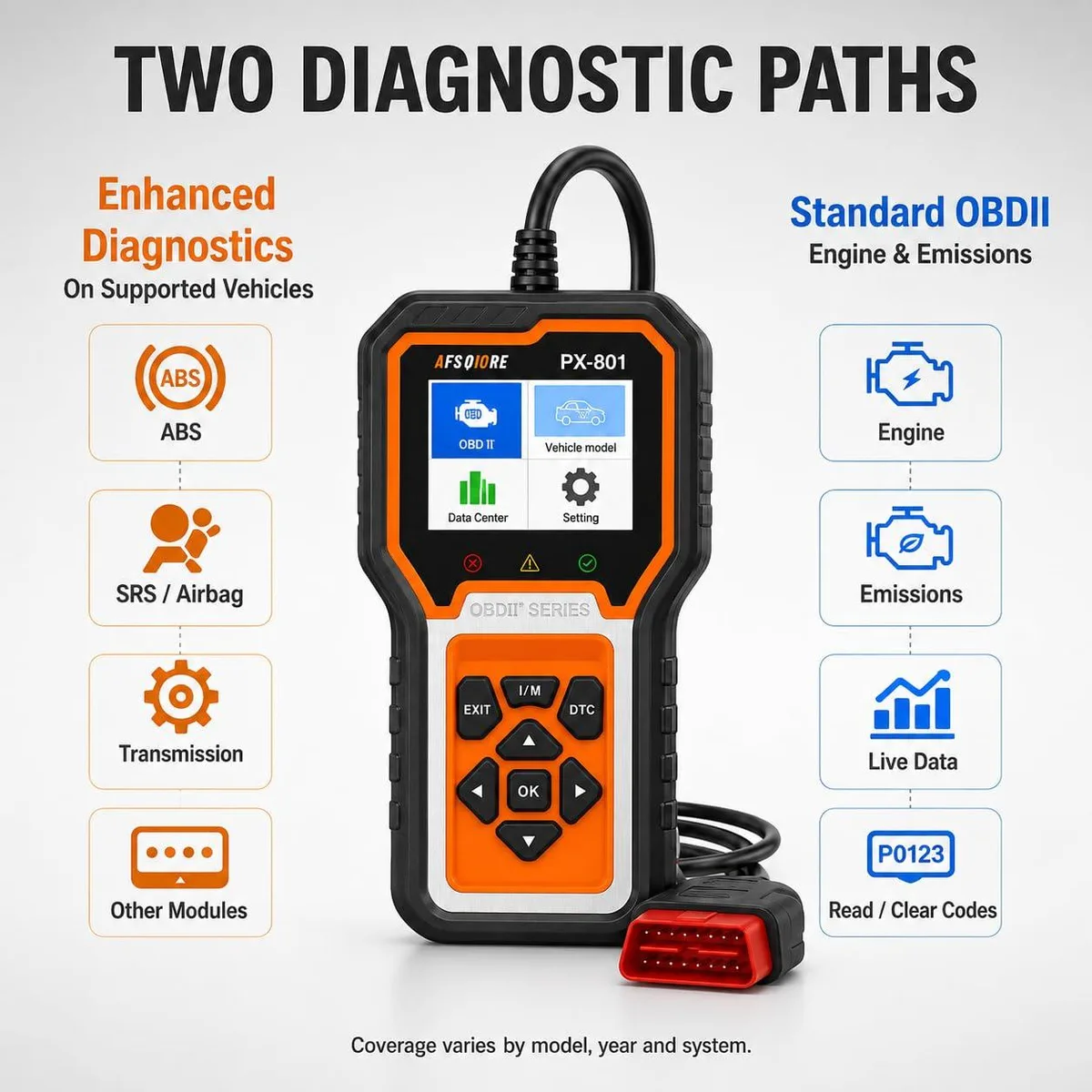

The AFS QIORE PX-801 is a corded engine diagnostic scanner designed for professional technicians and vehicle owners. It delivers full-system coverage for Toyota models from 1996 to 2024 and Honda or Acura models from 1996 to 2025. Lincoln vehicles from 2006 to 2018 are also supported for comprehensive system analysis. For other compliant makes it functions as a universal OBDII code reader covering engine and emissions systems.

Sustained Diagnostic Operation

The unit draws continuous power through its corded connection to the vehicle 16-pin port, avoiding battery drain during extended troubleshooting sessions. A high-performance chip maintains stable communication across all supported protocols including SAE J1850 PWM and VPW, ISO9141, KWP2000 and CAN. Real-time data streams and mode 6 test results remain consistent without the thermal throttling or connection drops seen in battery-powered handheld units during long drives or idle relearn procedures.

Pre-Purchase Compatibility Check

Confirm your vehicle brand and model year fall within the listed Toyota, Honda, Acura or Lincoln ranges to access full-system diagnostics including ABS, SRS and SAS modules. Vehicles outside those ranges receive only standard OBDII engine and emissions functions via the 16-pin connector. The interface requires a Windows 7 environment for cloud-based report printing and the 100000-code database lookup, so verify laptop or shop PC compatibility before ordering. Buyers needing coverage for brands not listed above should consider alternative tools.

Highlights

  • Full-system diagnostics for Toyota 1996-2024 models
  • Professional-grade chip detects hidden fault codes early
  • All OBDII protocols supported on 16-pin vehicles
  • 100000+ code database with definitions included
  • 37 technical patents back diagnostic accuracy

Specifications

BrandAFS QIORE
ModelPX-801
ColorBlack
FeaturesCorded Electric, Windows 7
Height7.67 L x 4.17 W x 1.37 H inches
Width7.67 L x 4.17 W x 1.37 H inches

Questions about this item

How much power does the PX-801 draw when it stays plugged into the OBD2 port for a full day of diagnostics?

The PX-801 is corded electric and draws power directly from the vehicle's 16-pin OBD2 connector, so it requires no separate battery or charger during extended use.

What must the vehicle already have for the PX-801 to connect and read codes?

The vehicle needs a standard 16-pin OBD2 port compliant with SAE J1850 PWM, SAE J1850 VPW, ISO 9141, KWP2000 or CAN protocols, which covers all OBD2-compliant models from 1996 onward.

Will the PX-801 show live data and clear ABS or SRS codes on a 2006 Lincoln that I plan to keep?

Yes, for Lincoln models from 2006 to 2018 the PX-801 provides full-system diagnostics including Engine, ABS, SRS, SAS, Transmission and TPMS with live data, code reading and clearing.
