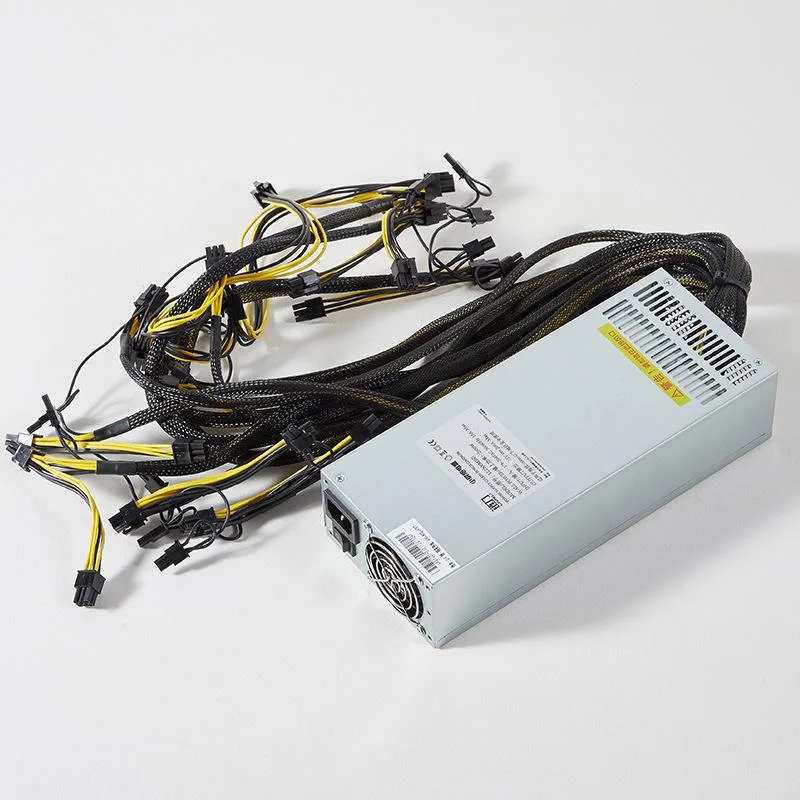

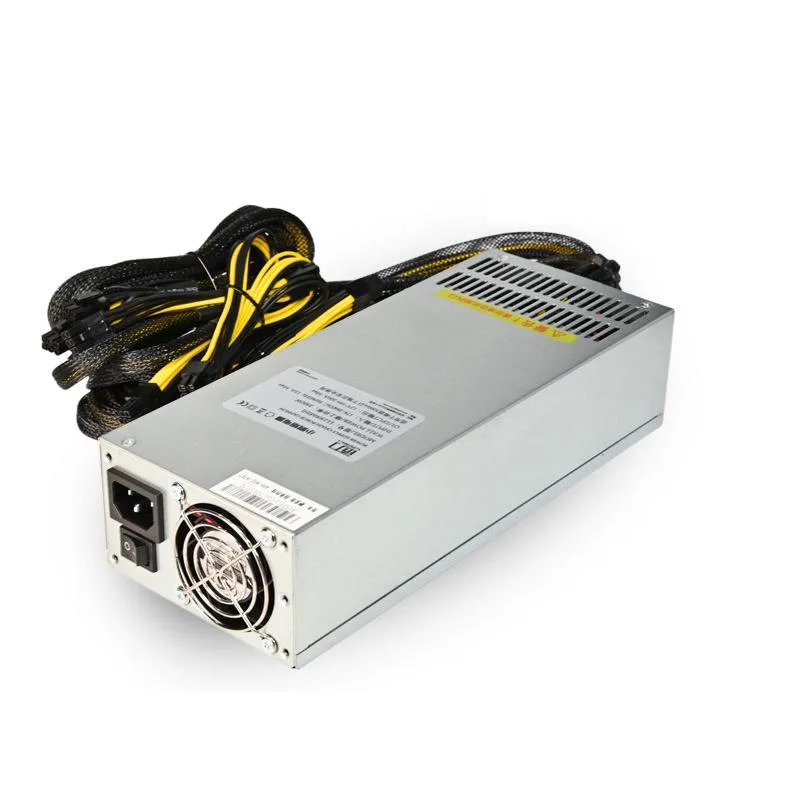

Silver rectangular 2U server PSU with large central fan and multiple 6-pin plus 6+2-pin cables

AFRNDK

AFRNDK 2500W 12V Server Power Supply 6×6pin 16×6+2pin

SKU CH-M0WW-TPZ23

Delivers 2500 W at 12 V with 6×6-pin and 16×6+2-pin connectors, rated 2300 W at 93.5–94 % efficiency, 176–264 V AC input, 49–67 Hz, cooled by a 7000 RPM main fan and two 10000 RPM auxiliary fans

  • Maximum Power2500W
  • Delivers 2500 W peak power for demanding GPU clusters
  • Rated 2300 W continuous output for stable 12 V operation
  • 5–94 % efficiency cuts waste heat and running costs
  • 6×6-pin and 16×6+2-pin connectors support dense multi-GPU rigs
  • Triple-fan cooling at 7000 rpm and 2×10000 rpm maintains low temperatures

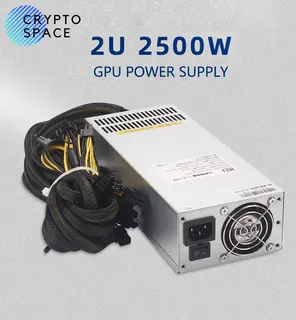

2500W 12V Server Power Supply for GPU Mining

This 2500-watt AC/DC unit delivers a single 12-volt rail rated at 2300 watts continuous output. It is built for high-density GPU mining rigs and ASIC miners that draw heavy 12-volt current from a 220-volt mains supply.

Installation uses six 6-pin

The supply fits a standard 2U rack opening and uses one 7000 RPM main fan plus two 10000 RPM auxiliary fans for forced-air cooling. Ensure the chassis airflow path matches the front-to-rear direction; restricted ventilation is the most common cause of thermal shutdown.

Verify 176-264 VAC input range

Confirm your PDU or wall circuit provides 220-volt nominal voltage within the stated tolerance. The unit achieves 93.5 to 94 percent efficiency at load, so plan AC capacity accordingly. No redundant or hot-swap features are present.

Highlights

  • Delivers 2500 W peak power for demanding GPU clusters
  • Rated 2300 W continuous output for stable 12 V operation
  • 5–94 % efficiency cuts waste heat and running costs
  • 6×6-pin and 16×6+2-pin connectors support dense multi-GPU rigs
  • Triple-fan cooling at 7000 rpm and 2×10000 rpm maintains low temperatures

Specifications

Maximum Power2500W

Questions about this item

How can I confirm the unit is running correctly after installation?

Check that the 7000 RPM main fan and both 10000 RPM auxiliary fans spin up, then measure 12 V at the output terminals under load.

What cables are included and what must I source separately?

The supply ships with six 6-pin and sixteen 6+2-pin connectors; AC mains lead and any mounting rails are not included.

Which power rating should I select for my build?

The single 2500 W maximum (2300 W rated) model covers all listed configurations; choose it when your total 12 V draw stays below 2300 W continuous.
