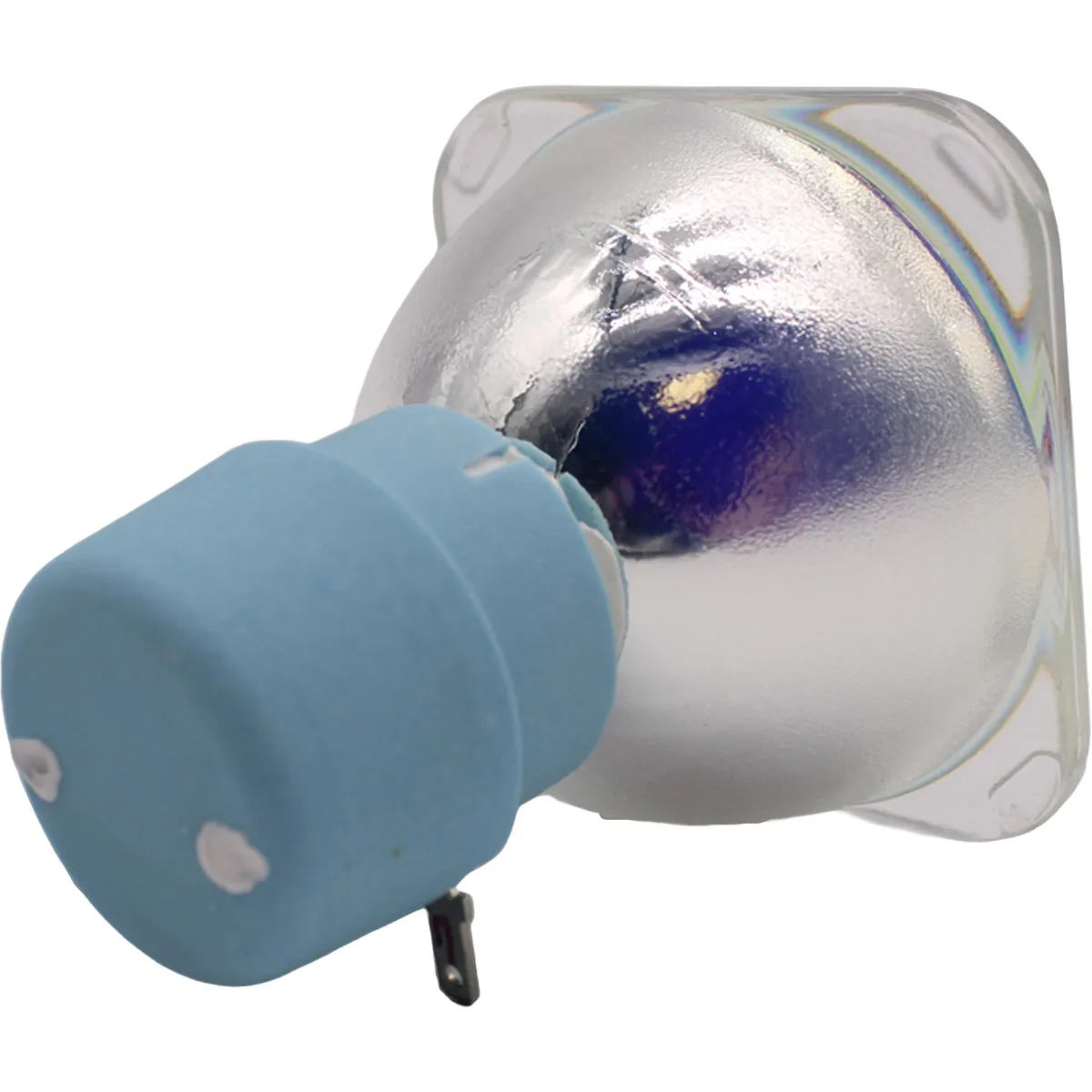

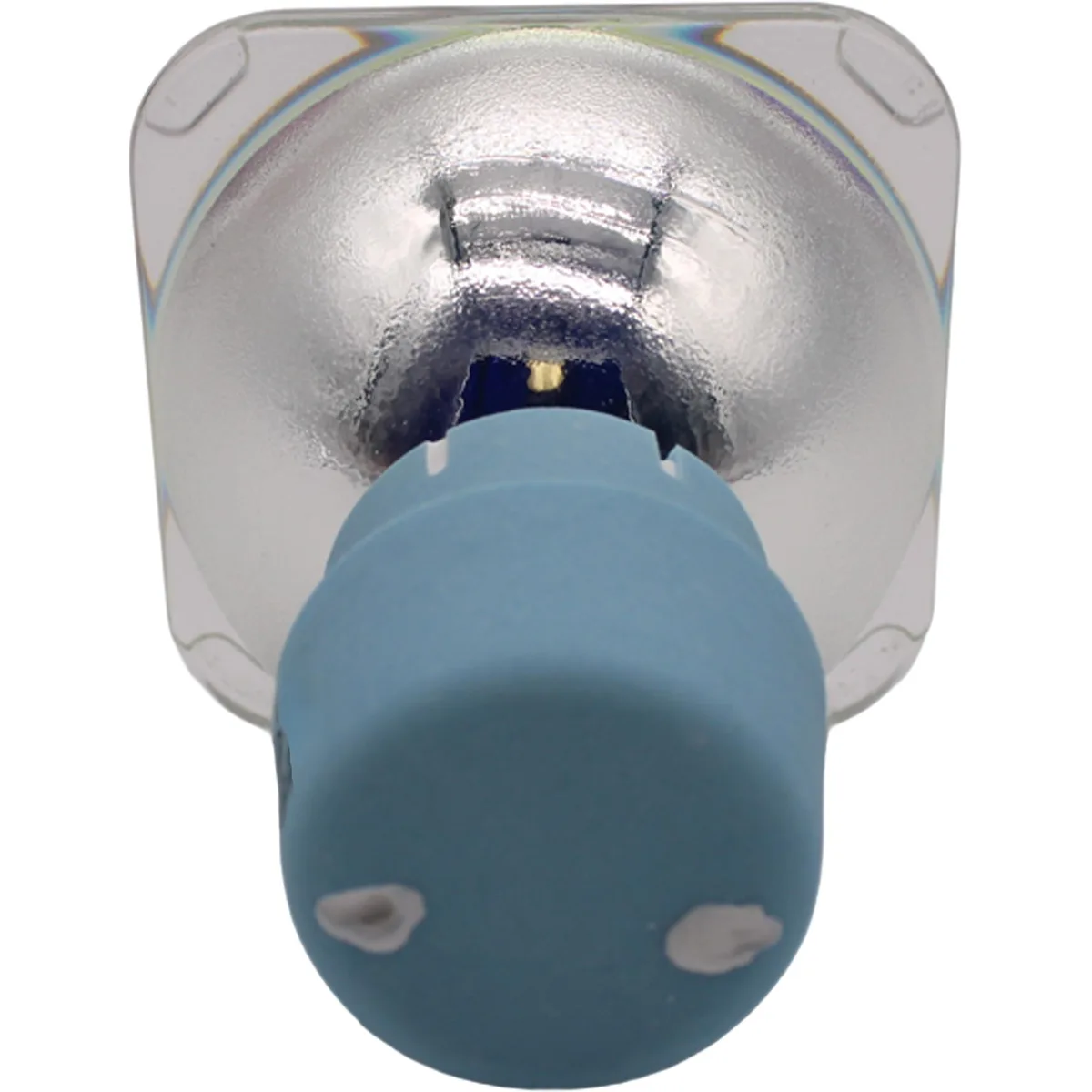

Compact metal halide arc lamp with ceramic base and quartz arc tube

Advanced Lamps

Advanced Lamps 5R Broadway Lamp 249888-CB dlp replacement lamp

SKU CH-W92B-7FVZE

A 189 watt metal halide replacement lamp rated 2000 hours with 7,950 initial lumens and 8000 K colour temperature

  • TypeProject Lamp
  • Weight0.2000
  • 189-watt output powers professional moving-head fixtures
  • 7,950 initial lumens deliver intense beam brightness
  • 8,000 K colour temperature produces crisp white light
  • Universal burning position allows flexible fixture mounting
  • 2,000-hour rated life reduces replacement frequency

Replacement for 5R Broadway Fixtures

This 189 watt metal halide discharge lamp replaces the MSD Platinum 5R Broadway 249888 module. It fits moving-head beams, spots and hybrids from brands such as Clay Paky, Elation, ADJ and others listed by the supplier. The arc operates at 8000 K with a CRI of 75 and an initial output of 7,950 lumens. Rated life is 2000 hours in universal burning position.

Verify Fixture Compatibility and Power

Confirm that your fixture accepts a 150W-189W single-ended metal halide lamp with a 57.1 mm overall length and 51.4 mm diameter. Check that the ballast or driver supplies the correct strike and run voltage for a 1 mm arc gap. Ensure the housing can accommodate the universal burning orientation and that the replacement procedure matches the manufacturer service guide for your specific model.

Direct Install With No Extra Components

The lamp ships as a bare bulb assembly weighing 0.2 kg; no housing, reflector, cable harness or control firmware is included. Swapping the old module restores original brightness and colour temperature without software updates or calibration tools. No accessories or software are bundled that would alter fixture behaviour beyond the lamp's rated specifications.

Highlights

  • 189-watt output powers professional moving-head fixtures
  • 7,950 initial lumens deliver intense beam brightness
  • 8,000 K colour temperature produces crisp white light
  • Universal burning position allows flexible fixture mounting
  • 2,000-hour rated life reduces replacement frequency

Specifications

BrandAdvanced Lamps
Model249888-CB
Part Number249888-CB
TypeProject Lamp
Weight0.2000

Questions about this item

Does the Advanced Lamps 249888-CB ship with a housing or only the bare arc tube?

The product is a bare 189 W metal-halide arc tube; no housing or cage is included, so you must reuse the existing housing from the projector or fixture.

My fixture lists both 150 W and 189 W modes — which setting matches this lamp?

The lamp is rated at 189 W, so select the 189 W or high-brightness mode in the fixture menu for correct ignition and colour stability.

What light output can I expect on stage once the lamp is installed?

The arc tube produces 7 950 initial lumens at 8 000 K with a CRI of 75, giving a cool-white beam suitable for beam and spot moving-head fixtures.
