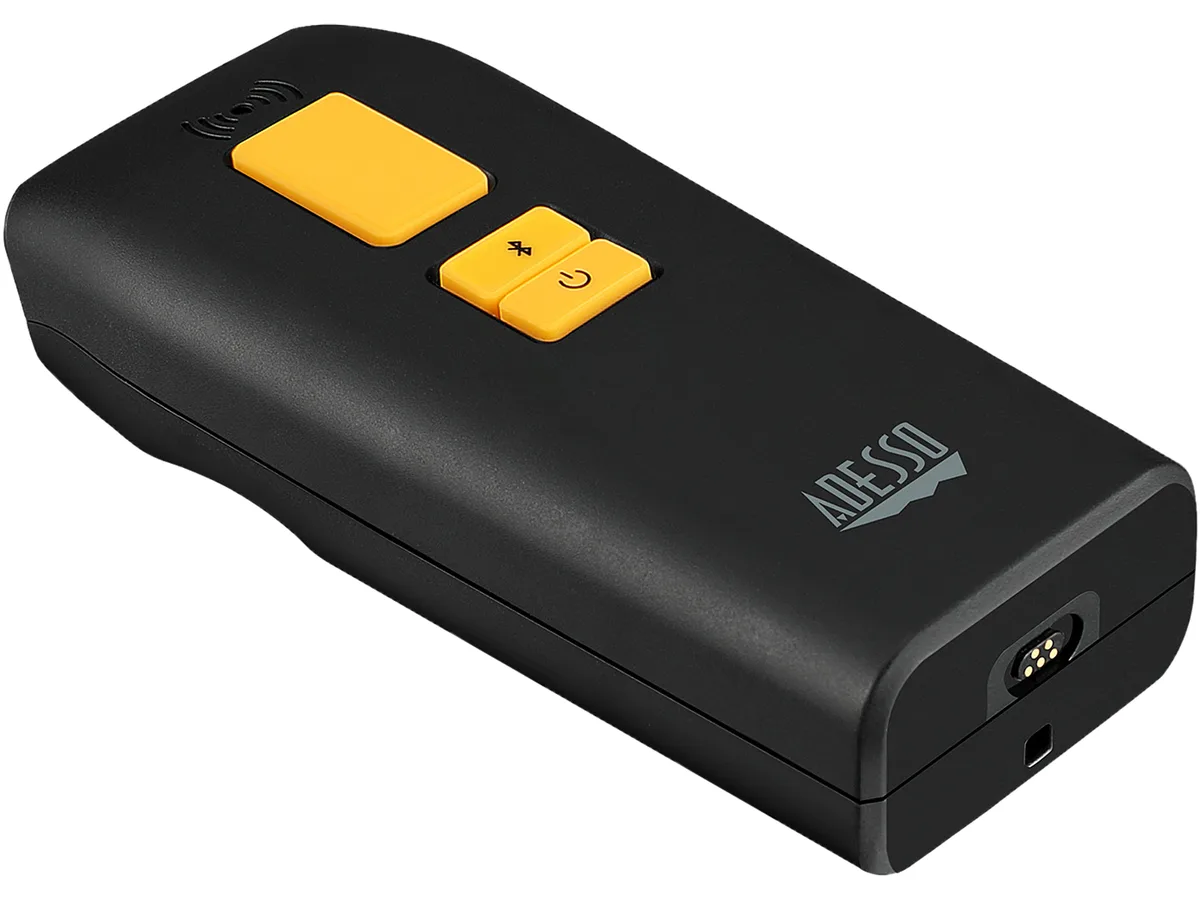

Small black handheld scanner with magnetic cable attached

Adesso

Adesso NUSCAN3500TB Bluetooth 4.0 1D/2D barcode scanner

SKU CH-A5MQ-5R3NK MPN NUSCAN3500TB

Pocket-sized Bluetooth 4.0 scanner reads 1D and 2D codes up to 12 inches away, survives 7-foot drops and IP66 wash-downs, and includes a magnetic detachable cable

  • Form FactorHandheld
  • ConnectivityCordless
  • Scan Engine2D/1D
  • Interfaces SupportedBluetooth 4.0 Compliant
  • Cordless TypeBluetooth
  • Light Source650 +/- 10 nm visible red LED & White
  • Bluetooth 4.0 connects to iOS/Android up to 30 ft
  • 2D CMOS engine reads 1D and 2D codes up to 12 in
  • IP66 rating gives waterproof and antimicrobial protection
  • Drop protection survives 7 ft falls with rugged design

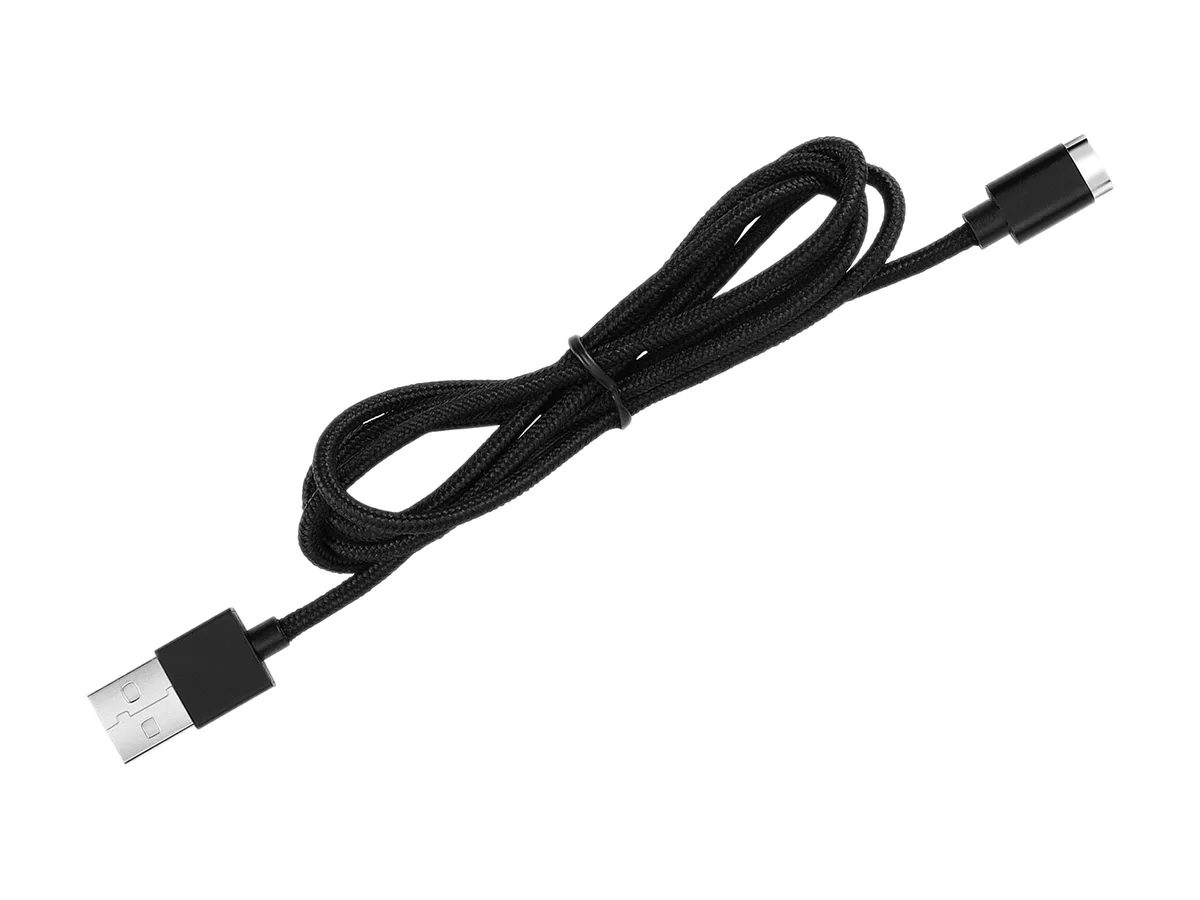

  • Detachable magnetic cable reduces connector-port wear daily

Pocket scanner for mobile POS

The Adesso NuScan 3500TB is a handheld 1D/2D barcode scanner weighing under 3 oz. It reads common linear codes and 2D symbologies including PDF417, Data Matrix, QR Code and MicroQR. Bluetooth 4.0 connects wirelessly to iOS or Android devices up to 30 ft away. IP66 rating, antimicrobial housing and 7 ft drop protection suit retail, field-service and clinical workflows.

Check host device and power

Verify the target tablet, phone or PC supports Bluetooth 4.0 and the required HID or SPP profile for keyboard emulation. The scanner draws 132 mA at 3.3 VDC from its internal 1200 mAh lithium-ion cell; charge via the included detachable magnetic cable to avoid port wear. Ensure your application can accept scanned data over the chosen Bluetooth profile before deployment.

Thermals noise and power

No moving parts or active cooling mean silent operation and negligible heat during continuous scanning. The CMOS sensor tolerates motion up to 24 in/sec while the battery delivers a full shift of typical use between charges. Magnetic cable attachment reduces connector strain, and the rugged IP66 shell maintains performance in wet, dusty or sanitised environments.

Highlights

  • Bluetooth 4.0 connects to iOS/Android up to 30 ft
  • 2D CMOS engine reads 1D and 2D codes up to 12 in
  • IP66 rating gives waterproof and antimicrobial protection
  • Drop protection survives 7 ft falls with rugged design
  • Detachable magnetic cable reduces connector-port wear daily

Specifications

BrandAdesso
SeriesNuScan
Model3500TB
Part NumberNUSCAN3500TB
Form FactorHandheld
ConnectivityCordless
Scan Engine2D/1D
Interfaces SupportedBluetooth 4.0 Compliant
Cordless TypeBluetooth
Light Source650 +/- 10 nm visible red LED & White
Depth of Scan Field0.00" - 12.00" (at 20 mil EAN-13, PC 100%)
Pitch±45 degree
Roll±360 degree
Yaw±40 degree
Print Contrast Ratio (Minimum)PCS 30% EAN13 at 10mil
BatteryLithium Ion Battery Rated at 1200 mAH
Input Voltage3.3 +/- 5% VDC
Current132 +/- 13 mA (at maximum)
ColorBlack
Dimensions1.00" x 1.89" x 4.21" (H x W x L)
Weight0.19 lb.
FeaturesImager: 640 x 480 CMOS
Motion Tolerance: 24.00" per second (IPS)
Minimum Bar Width (1D): 5 mil / 0.127 mm at PCS 90%, Code 39
Minimum Bar Width (2D): 10 mil / 0.254 mm at PCS 80%, Data Matrix.
Wireless Range: 10 m / 30 ft.
Indicators (LED): Green / Blue / Orange
Alert Operation: Programmable Beeper Tone
Operating Temperature: -20 to 50 degrees C (-4 to 122 degrees F)
Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F)
Humidity: 5% to 95% (non-condensing)
Light Levels: Max 100,000 lux
DropWithstanding 1.50 m freefall drops
Operating Systems SupportedWindows 7 & above; Mac OS X; iOS & Andriod
Shipping weight0.45 kg
Package size142 × 90 × 62 mm

Questions about this item

Does the NUSCAN3500TB ship with a charging cable or do I need to buy one separately?

A detachable magnetic cable is included in the box for charging and wired use.

Should I choose the Bluetooth 4.0 model or is there a corded version of the 3500TB?

This model uses Bluetooth 4.0 for wireless connection and also includes the magnetic cable for direct USB connectivity.

What does the 12-inch scan depth mean when I am at the checkout counter?

You can read a 20 mil EAN-13 barcode from contact up to 12 inches away.
