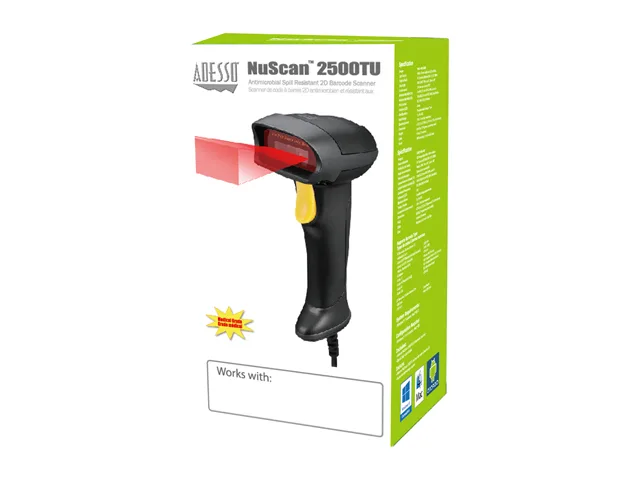

Adesso NUSCAN2500TU barcode scanner
Handheld 2D/1D scanner reads PDF417, QR, Data Matrix and common linear codes up to 12 inches away with 24 inches-per-second motion tolerance
- Form FactorHandheld
- ConnectivityCorded
- Scan Engine2D/1D
- Interfaces SupportedUSB
- Cordless TypeRF
- Light Source650 +/- 10 nm visible red LED & White
- Scans 1D and 2D codes including PDF417 and QR for versatile data capture
- Medical-grade spill-resistant design with washable exterior maintains hygiene in healthcare settings
- CMOS sensor reads up to 12 inches depth at 24 inches per second motion tolerance
- Withstands 1.5 metre drops with shock-resistant construction for busy commercial environments
- USB corded connectivity with 650 nm visible red LED and white light source
Product identity
The Adesso NuScan 2500TU is a corded handheld barcode scanner built for medical and commercial environments. Its spill-resistant housing and washable exterior support hygiene requirements in healthcare and retail settings.
Critical specification
The scanner reads 2D and 1D symbologies including PDF417, QR, Data Matrix and all common linear codes via a USB connection. It captures barcodes up to 12.00 inches depth at 20 mil with a 640 x 480 CMOS sensor.
Thermals noise power
The device draws 145 mA at 5 VDC from the USB port with no external supply needed. It operates silently with no moving parts and withstands 1.5 m drops for durability in busy workplaces.
Highlights
- Scans 1D and 2D codes including PDF417 and QR for versatile data capture
- Medical-grade spill-resistant design with washable exterior maintains hygiene in healthcare settings
- CMOS sensor reads up to 12 inches depth at 24 inches per second motion tolerance
- Withstands 1.5 metre drops with shock-resistant construction for busy commercial environments
- USB corded connectivity with 650 nm visible red LED and white light source
Specifications
| Brand | Adesso |
|---|---|
| Series | NuScan |
| Model | 2500TU |
| Part Number | NUSCAN2500TU |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 2D/1D |
| Interfaces Supported | USB |
| Cordless Type | RF |
| Light Source | 650 +/- 10 nm visible red LED & White |
| Depth of Scan Field | 0.00" - 12.00" (at 20 mil EAN-13, PC 100%) |
| Pitch | ±45 degree |
| Roll | ±360 degree |
| Yaw | ±40 degree |
| Print Contrast Ratio (Minimum) | PCS 30% EAN13 at 10 mil |
| Input Voltage | 5 +/- 5% VDC |
| Current | 145 +/- 15 mA (at maximum) |
| Color | Black |
| Dimensions | 2.70" x 3.70" x 6.75" (H x W x L) |
| Weight | 0.38 lb. |
| Features | Imager: 640 x 480 CMOS Motion Tolerance: 24.00" per second (IPS) Minimum Bar Width (1D): 5 mil / 0.127 mm at PCS 90%, Code 39 Minimum Bar Width (2D): 10 mil / 0.254 mm at PCS 80%, Data Matrix. Indicators (LED): Green Alert Operation: Programmable Beeper Tone Cable: 6.00 ft. (1.80 meters) Operating Temperature: -20 to 50 degrees C (-4 to 122 degrees F) Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F) Humidity: 5% to 95% (non-condensing) Light Levels: Max 100,000 lux |
| Drop | Withstanding 1.50 m freefall drops |
| Operating Systems Supported | Windows 7 & above; Mac OS X |
| Shipping weight | 0.91 kg |
| Package size | 215 × 116 × 89 mm |
Questions about this item
How far away can the NUSCAN2500TU read a standard 20 mil EAN-13 barcode?
It reads from contact up to 12.00 inches away at 20 mil EAN-13 with 100% print contrast.
What does the USB interface limit in everyday use?
The USB cable supplies 5 VDC at up to 145 mA and restricts the scanner to a fixed workstation.
Will the 2.70 by 3.70 by 6.75 inch body fit in a standard scanner stand?
The handheld measures 2.70" high, 3.70" wide and 6.75" long, weighing 0.38 lb, so it fits most common stands.
