Handheld wireless 2D barcode scanner, white antimicrobial IP67 waterproof body with charging cradle

Adesso

Adesso NUSCAN 5200TR 2.4 GHz RF wireless IP67 waterproof 2D barcode scanner

SKU CH-G98K-HC38Z MPN NUSCAN 5200TR

Waterproof IP67 handheld 2D scanner with antimicrobial housing, 2.4 GHz wireless up to 300 feet and 24 IPS scan speed

  • Form FactorHandheld
  • ConnectivityCordless
  • Scan Engine2D/1D
  • Interfaces SupportedRF Wireless
  • Cordless TypeRF
  • Light Source650 nm Visible LED
  • Wireless 2.4 GHz link scans from up to 300 feet away
  • IP67 rating allows full submersion and soap-and-water cleaning
  • Antimicrobial housing inhibits bacterial growth on the scanner surface
  • Survives 23-foot drops for reliable operation in harsh environments
  • 2D CMOS engine reads 1D and 2D codes at 24 IPS motion tolerance

Product identity

The Adesso NuScan 5200TR is a cordless 2D barcode scanner built for retail, warehouse and healthcare staff who need to read 1D and 2D codes without a tether. Its antimicrobial housing and IP67 rating make it suitable for environments that require frequent cleaning or exposure to liquids.

Deciding specification

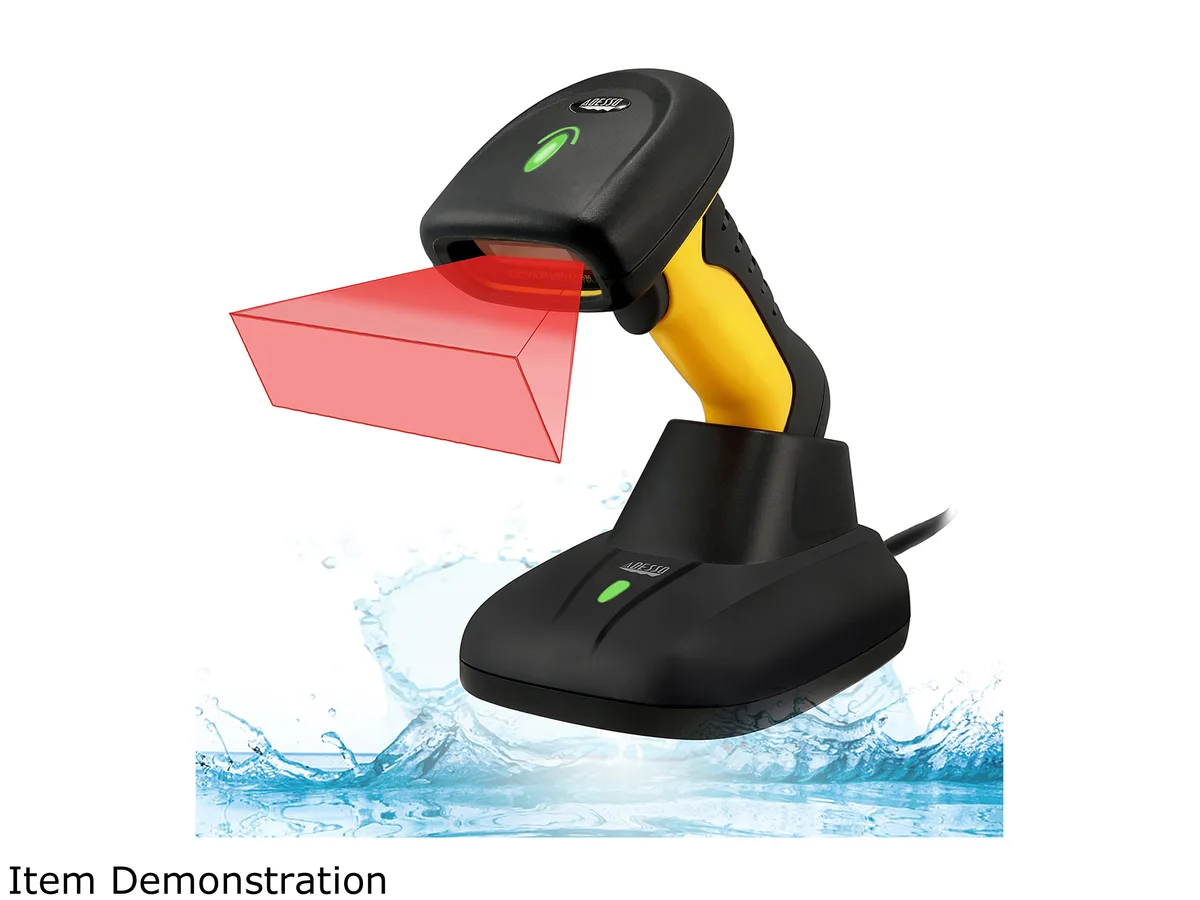

The scanner uses a 2.4 GHz RF link with a charging cradle that holds a built-in USB receiver, giving plug-and-play operation on Windows 2000 through Windows 10 and a working range of up to 300 feet from the cradle.

Capacity and headroom

The CMOS engine tolerates motion up to 24 inches per second and reads codes from contact to 12 inches away on a 20 mil EAN-13 symbol, with pitch ±45°, roll ±50° and yaw ±360°. It survives drops from 23 feet and submersion to 3 feet for 30 minutes, but it does not support corded USB, Bluetooth or Wi-Fi interfaces.

Highlights

  • Wireless 2.4 GHz link scans from up to 300 feet away
  • IP67 rating allows full submersion and soap-and-water cleaning
  • Antimicrobial housing inhibits bacterial growth on the scanner surface
  • Survives 23-foot drops for reliable operation in harsh environments
  • 2D CMOS engine reads 1D and 2D codes at 24 IPS motion tolerance

Specifications

BrandAdesso
ModelNuScan 5200TR
Part NumberNUSCAN 5200TR
Form FactorHandheld
ConnectivityCordless
Scan Engine2D/1D
Interfaces SupportedRF Wireless
Cordless TypeRF
Light Source650 nm Visible LED
Depth of Scan Field0-12 inches (@20mil EAN-13, PC 100%)
Pitch±45 degree
Roll±50 degree
Yaw±360 degree
Print Contrast Ratio (Minimum)30%
Decoding CapabilitySupported Symbologies:
UPC-A/E,
EAN13/8
Code 128
GS1-128
Code 39(Plain&Full ASCII)
Code 93
Code 11
Code 25(ITF/Industrial/Matrix/IATA Standard)
Codabar,
MSI/MSI Plessey
GS1 DataBar
Supported 2D Symbologies:
DataMatrix
QR Code
Micro QR Code
PDF417
Input Voltage5 VDC ± 5%
Current220 ± 5% mA
Dimensions4.00" x 3.00" x 7.00"
Weight0.35 lb.
Drop23 feet
AntimicrobialYes
Operating Systems SupportedWindows 2000 / XP / Vista / 7 / 8 / 10
altMac OS X
Shipping weight1.36 kg
Package size305 × 254 × 203 mm

Questions about this item

How far can the 2.4 GHz wireless link reach in a typical workspace?

The scanner transmits data to its cradle from up to 300 feet away, giving wide coverage for warehouse or retail floors.

What does the IP67 rating actually allow for daily cleaning?

The sealed silicone housing is fully waterproof; it can be washed with soap and water or submerged up to 3 ft for 30 minutes.

What clearance is needed on a countertop for the charging cradle?

The cradle footprint is 4.00" x 3.00" and the scanner stands 7.00" tall, so allow that depth plus cable space.
