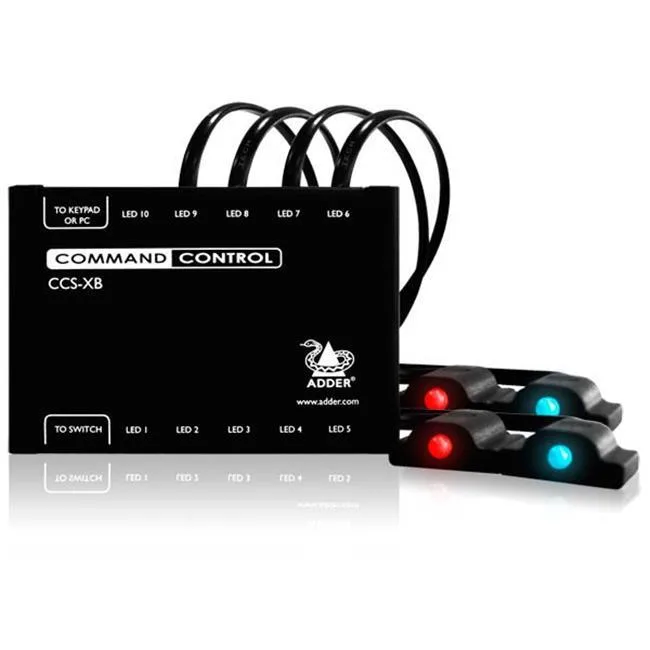

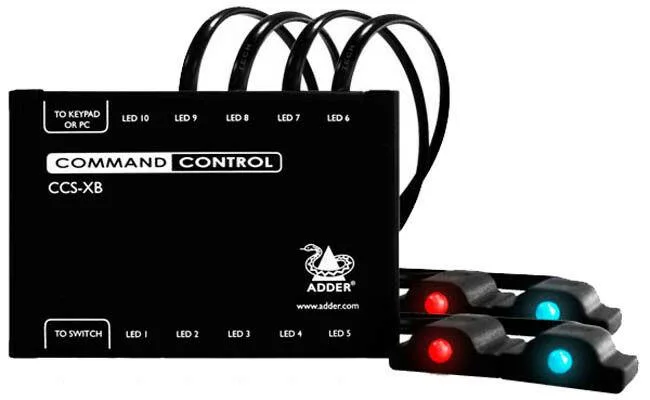

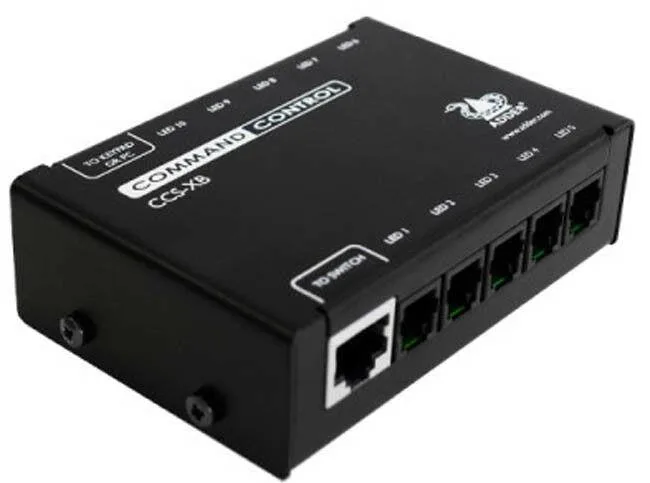

Small rectangular LED module with four indicator lights and thin oval cables

Adder Technology

Adder CCS-XB LED Light Module for CCS-PRO4 Free-Flow Switch

SKU CH-0FDF-H18YX

An LED light module that shows which screen is active on a CCS-PRO4 Free-Flow switch, supporting up to 10 indicators with configurable colour and intensity

  • LED shows active screen focus for Free-Flow switching
  • Four LED indicators included with each module
  • Colour and intensity adjustable per screen via software
  • Supports up to 10 illumination indicators per unit
  • Three-metre pre-wired cable allows discreet routing

Adder CCS-XB LED Light Module

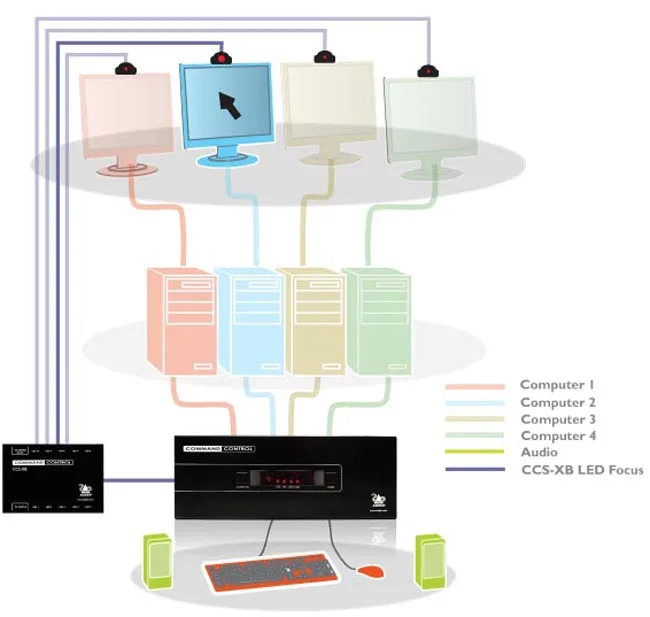

The Adder CCS-XB LED Light Module provides visual indication of active screen focus when paired with the CCS-PRO4 Free-Flow Switch. It connects to a CCS-PRO4 or CCS4-USB unit to illuminate which display is currently under control. Each module ships with four LED indicators that mount directly onto screens. Color and intensity are fully configurable for each indicator via the setup application.

Capacity and headroom

The system supports a maximum of ten illumination indicators per unit, allowing expansion beyond the included four using order code CCS-LED. Each module comes pre-wired with three meters of oval-profile cable for discreet routing to the screen. Loop-through support enables connection of additional accessories such as RC4 or RC8 remote control modules. The practical limit is reached at ten indicators, after which no further expansion is possible.

Upgrade path and fit

This module replaces setups that lack visual feedback for multi-screen switching, adding per-screen status lighting to an existing Free-Flow deployment. The jump is worth it when operators need immediate confirmation of which screen is active across a large array. It is not suited for single-screen environments or installations that do not use a compatible CCS-PRO4 or CCS4-USB controller.

Highlights

  • LED shows active screen focus for Free-Flow switching
  • Four LED indicators included with each module
  • Colour and intensity adjustable per screen via software
  • Supports up to 10 illumination indicators per unit
  • Three-metre pre-wired cable allows discreet routing

Specifications

No published specifications for this item yet.

Questions about this item

Will the CCS-XB LED Light Module work with my existing CCS-PRO4 Free-Flow Switch setup?

The CCS-XB connects directly to the CCS-PRO4 or CCS4-USB to indicate active screen focus alongside Free-Flow.

How can I verify the LED indicators are configured correctly after installation?

Use the setup application to assign a specific color and intensity to each LED; the lights will then show which screen you are currently controlling.

What comes with the CCS-XB module and do I need to buy extra indicators separately?

Each CCS-XB ships with 4 pre-wired LED indicators and 3 metres of cable; additional indicators up to a maximum of 10 per unit are ordered separately using code CCS-LED.
