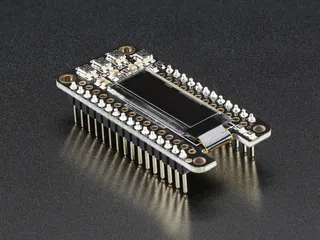

Small green circuit board with a tiny rectangular monochrome OLED screen and three small buttons along one edge

Adafruit

Adafruit FeatherWing OLED 128x32 monochrome OLED engineering development tool

SKU CH-Z6ZJ-0FKHX

Adds a 128x32 monochrome OLED and three user buttons to any Feather board via stacking headers

  • TypeEngineering Development Tools
  • Adds a crisp 128x32 monochrome OLED to any Feather board
  • Three tactile buttons A, B, C give instant user input control
  • Self-illuminating pixels need no backlight, lowering power draw
  • Stackable design fits above or below Feather with stacking headers
  • Compact 1-inch diagonal stays readable thanks to high contrast

FeatherWing OLED add-on for Feather boards

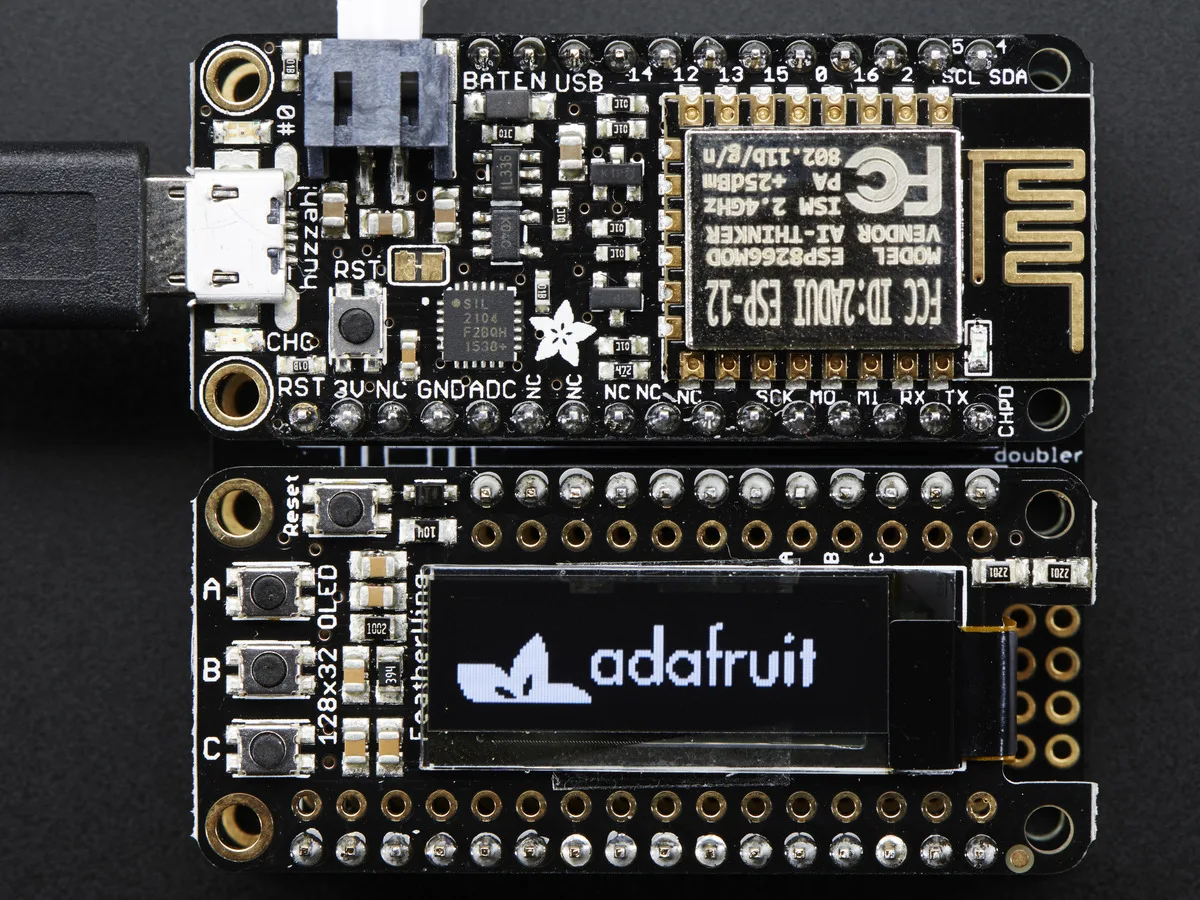

This FeatherWing adds a 128x32 monochrome OLED and three user buttons labelled A, B and C to any Feather main board. It connects using Feather Stacking Headers or Feather Female Headers on the top or bottom of the main board. The display measures about 1 inch diagonally and produces its own light, so no backlight is required.

OLED lifetime and display constraints

Each pixel is an organic LED that will begin to dim after being kept on for over 1000 hours. To preserve brightness, avoid leaving static images illuminated continuously. The 128x32 resolution limits the amount of text or graphics that can be shown at one time.

Simple header installation and common issues

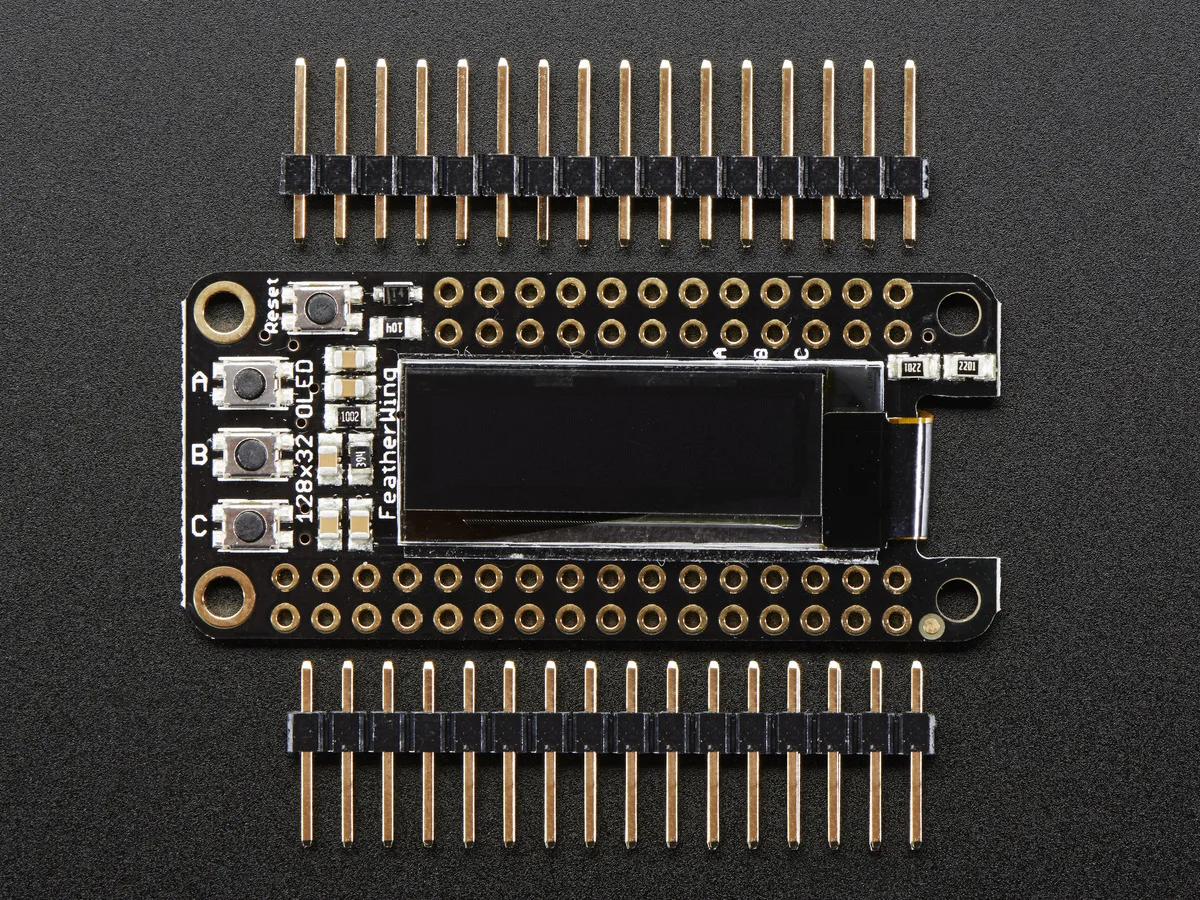

Solder stacking or female headers onto the Wing and press it onto the Feather board, aligning the pins carefully. Misaligned pins or cold solder joints are the most frequent causes of a blank or flickering display. The onboard reset button and three tactile buttons require no extra wiring once the headers are seated.

Highlights

  • Adds a crisp 128x32 monochrome OLED to any Feather board
  • Three tactile buttons A, B, C give instant user input control
  • Self-illuminating pixels need no backlight, lowering power draw
  • Stackable design fits above or below Feather with stacking headers
  • Compact 1-inch diagonal stays readable thanks to high contrast

Specifications

TypeEngineering Development Tools

Questions about this item

What resolution does the FeatherWing OLED provide?

The display uses 128x32 individual white OLED pixels, giving a crisp monochrome image without a backlight.

How does the self-emissive OLED affect power draw and contrast in a build?

Because each pixel makes its own light, no backlight is needed, which reduces power use and gives very high contrast.

What connector system lets me attach this wing to a Feather main board?

Feather Stacking Headers or Feather Female Headers let you plug the wing on top or bottom of any Feather board.
