Adafruit Analog 2-Axis Thumb Joystick Select Button Breakout Board Engineering Development Tool

Compact Analog Thumb Joystick Kit

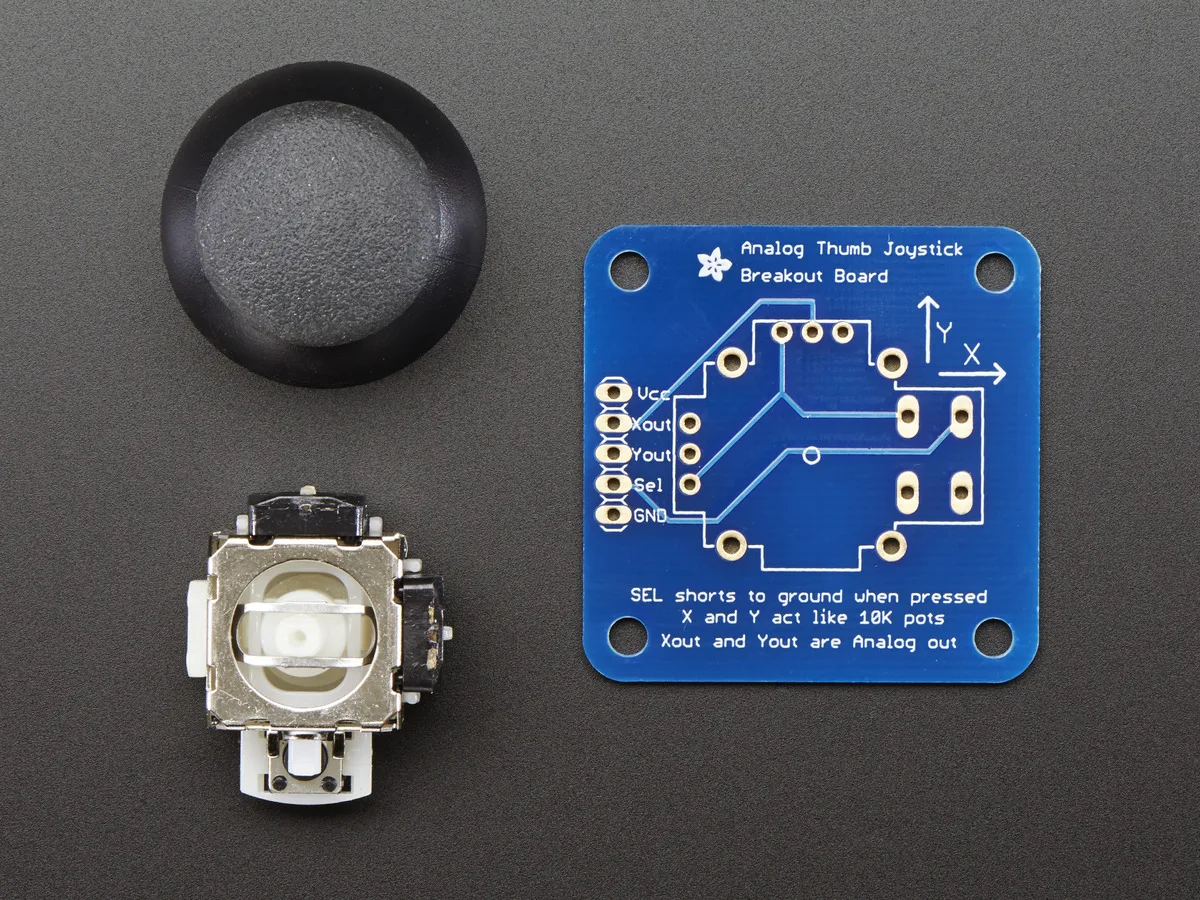

This Adafruit breakout board kit provides a 2-axis analog thumb joystick with an integrated select button for microcontroller projects. The package includes the joystick module, a soft-touch rubber hat, and a custom breakout board designed for panel mounting. A 0.1 inch spaced header allows straightforward connection to breadboards or perfboards. Simple soldering is required to assemble the joystick onto the PCB.

Makers Adding Analog Control Panels

The kit suits hobbyists and engineers building custom controllers, robotics interfaces, or portable gaming devices who need proportional X and Y input plus a press-to-select function. It is not for users requiring a pre-assembled, plug-and-play USB peripheral without soldering. Buyers needing digital-only directional switching or Hall-effect sensing for higher durability should look at alternative sensor types.

Dual-Axis Analog Output With Select Switch

The joystick delivers variable voltage output across two axes, requiring two analog-to-digital converter pins on the host microcontroller to determine position. A separate digital input pin reads the momentary select button activated by pressing down on the stick. The three-part mechanical design separates the actuator, rubber hat, and circuit board to facilitate clean panel installation.
