Two small rectangular network adapters with Ethernet ports and power connectors, one injector and one splitter

Adafruit

Adafruit 4-Pair Gigabit PoE Injector Splitter Kit 2 in 1 accessory

SKU CH-RVCW-SXKDE

A 4-pair Gigabit PoE injector and splitter kit delivering 5-48V passive power over Ethernet up to 825ft for IP cameras and network devices

  • Gigabit data speeds up to 1000 Mbps over four-pair Ethernet cabling
  • Powers devices from 5 to 48 V with up to 2 A per channel
  • Reaches IP cameras and access points up to 825 ft away
  • Centralised power for multiple injectors via multi-way splitter connections
  • Passive PoE on pins 4/5 and 7/8 simplifies non-PoE device installation

4-Pair Gigabit PoE Kit

This passive Power over Ethernet kit combines an injector and a splitter to deliver both data and power over a single Ethernet cable. It is designed for installers who need to power non-PoE devices such as IP cameras, wireless access points, or VoIP phones without running separate mains wiring.

5–48V input with 2A per channel

The adapter accepts a wide 5 to 48 volt DC input and supplies up to 2 amps on each of the four channels. Gigabit data rates of 10, 100 and 1000 Mbps are carried on two pairs while the remaining pairs deliver power on pins 4, 5, 7 and 8. The link remains stable over cable runs up to 825 feet (250 metres).

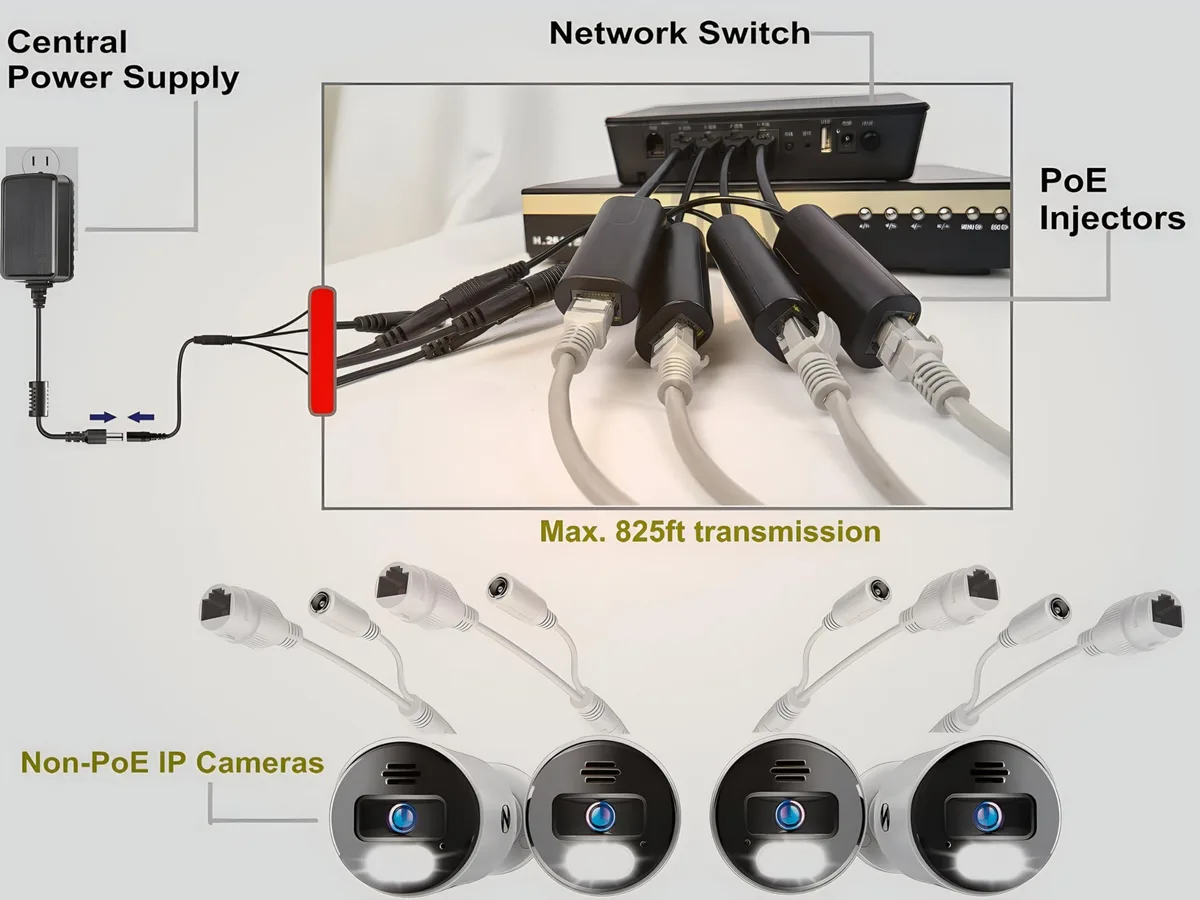

Multi-way splitter for centralised power

A bundled multi-way splitter lets several injectors share one power source, reducing cable clutter at the distribution point. The package includes the injector, splitter and the splitter hub so the installer can build a tidy, centralised PoE network without sourcing extra parts.

Highlights

  • Gigabit data speeds up to 1000 Mbps over four-pair Ethernet cabling
  • Powers devices from 5 to 48 V with up to 2 A per channel
  • Reaches IP cameras and access points up to 825 ft away
  • Centralised power for multiple injectors via multi-way splitter connections
  • Passive PoE on pins 4/5 and 7/8 simplifies non-PoE device installation

Specifications

No published specifications for this item yet.

Questions about this item

Will this passive PoE injector work with my existing 10/100 Ethernet switch and Cat5e cabling?

Yes, the kit supports 10/100/1000Mbps operation so it works with older 10/100 switches and Cat5e cable, using two pairs for data and pins 4/5 and 7/8 for power.

How can I verify the 4-pair Gigabit link is active after connecting the injector and splitter?

Check that the Ethernet link LEDs on both units show a Gigabit connection and confirm the powered device receives 5-48V at up to 2A per channel.

Does the kit include the Ethernet patch cables and the 5-48V power supply, or must I buy them separately?

The kit provides the injector and splitter units only; you need to supply your own Ethernet cables and a 5-48V DC power source for the injector.
