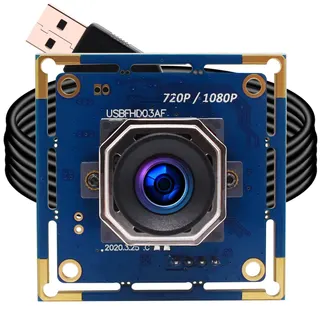

Small rectangular USB camera module with autofocus lens and integrated cable

Adafruit

Adafruit 2 in 1 accessory USB camera 2MP autofocus 1080p 100fps 85° HFOV

SKU CH-XAC1-EQ3N9

A 2 MP USB camera delivering 1080p at 100 fps with autofocus and an 85° field of view for machine vision or video calls

  • Sharp 1080p video from a 2 MP OV2710 sensor
  • Autofocus lens covers 8 cm to infinity without tools
  • 100 fps at 1080p for smooth motion capture
  • 85° horizontal view fits wide scenes
  • Plug-and-play UVC support on Windows, Linux and Mac

2 MP USB autofocus camera for machine vision

This compact USB camera module delivers 2 megapixel resolution at 1920 by 1080 using a 1/2.7 CMOS OV2710 sensor. An autofocus lens with 85 degree horizontal field of view handles objects from 8 cm to infinity without manual adjustment. It supports 480p at 100 fps, 720p at 60 fps and 1080p at 100 fps for high-speed capture. The unit is plug-and-play with UVC drivers on Windows, Linux and macOS.

Makers needing high frame rates and close focus

The camera suits laser engraver alignment, machine-vision inspection and any application that benefits from 100 fps at full HD and millimetre-range autofocus. Users who require fixed-focus simplicity, built-in illumination or a wider field of view beyond 85 degrees should consider other modules. The autofocus mechanism also needs at least 8 cm working distance, so extreme macro work is not supported.

Fits any USB port with UVC support

Connect the camera directly to a standard USB port on a PC, laptop or single-board computer; no extra drivers or power supply are needed. MJPEG and YUY2 formats are available for software compatibility. The small form factor leaves room inside enclosures or on mounts, freeing space for lighting or motion components in a vision rig.

Highlights

  • Sharp 1080p video from a 2 MP OV2710 sensor
  • Autofocus lens covers 8 cm to infinity without tools
  • 100 fps at 1080p for smooth motion capture
  • 85° horizontal view fits wide scenes
  • Plug-and-play UVC support on Windows, Linux and Mac

Specifications

No published specifications for this item yet.

Questions about this item

What USB port type does the camera need on my computer?

The camera plugs into a standard USB port on a PC, Mac or Linux machine and works plug-and-play without extra drivers.

Will the autofocus still work if I keep using an older Windows 7 or XP system?

Yes, the UVC-compliant camera supports Windows XP, Vista, 7, 8, 10 and Linux, and autofocus operates normally on those platforms.

How can I verify the camera is delivering the advertised 1080p at 100fps after I connect it?

Open a UVC-compatible viewer, select 1920x1080 resolution and confirm the frame rate reads 100fps; the sensor also offers 720p at 60fps and 480p at 100fps.
