Small rectangular camera with twelve LEDs around lens, black finish, six-metre cable attached

Adafruit

Adafruit 2 in 1 Accessory 12 LED Rear View Camera IP68 170° CCD 728x492 6m Cable

SKU CH-FM4F-ZDV1R

A 170-degree CCD rear-view camera with 12 LEDs, IP68 waterproofing and a 6m cable for compatible Honda models

  • Wide 170° view reduces blind spots
  • 12 LEDs give clear night vision
  • IP68 rating withstands water and shock
  • 6 m cable reaches most vehicle rears
  • CCD sensor delivers 520 TV lines resolution

Rear-view camera for Honda models

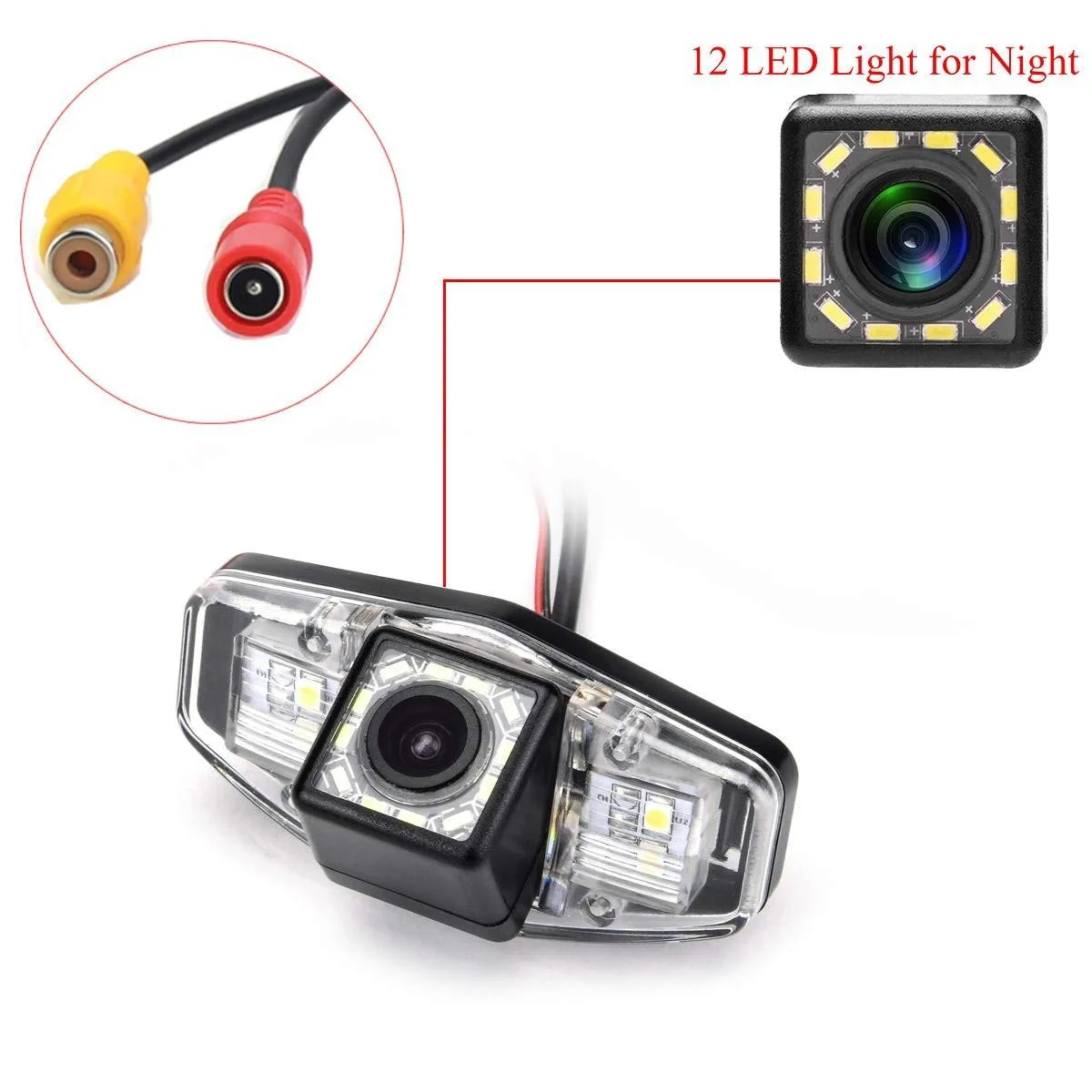

This camera replaces the licence-plate light on compatible Honda Accord, Civic and City models from 2001 to 2014. It supplies a 170 degree viewing angle to assist with parking and reversing manoeuvres. The unit combines the camera and illumination in a single housing.

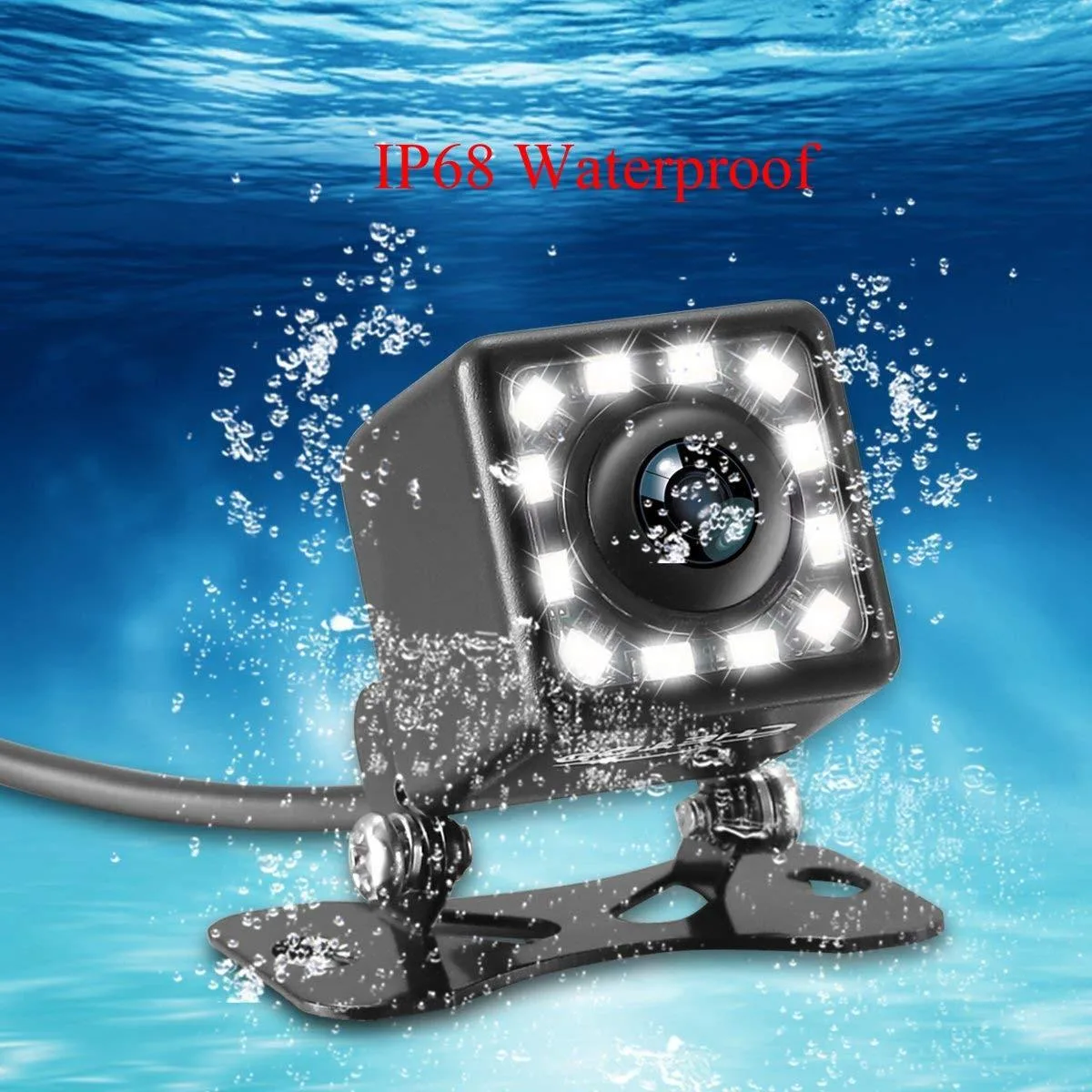

IP68 waterproof and shockproof construction

The enclosure meets IP68 ingress protection and is rated shockproof for vehicle exterior mounting. Power is drawn from a 12 V DC supply with a video output of 1.0 V pp at 75 Ohm. A 6 metre cable connects the camera to the display system.

CCD sensor with NTSC output

The 1/3.5 inch CCD sensor delivers 728 by 492 pixels at 520 TV lines over an NTSC signal. Electronic shutter ranges from 1/60 to 1/100,000 seconds with automatic white balance. Buyers needing a different connector type or a camera for non-Honda vehicles cannot use this unit.

Highlights

  • Wide 170° view reduces blind spots
  • 12 LEDs give clear night vision
  • IP68 rating withstands water and shock
  • 6 m cable reaches most vehicle rears
  • CCD sensor delivers 520 TV lines resolution

Specifications

No published specifications for this item yet.

Questions about this item

How is the 6 m video cable routed from the rear-mounted camera to the front display, and what step do installers often miss?

Feed the cable through the tailgate grommet, along the roof liner or under the carpet to the head unit, and remember to seal the grommet afterwards to keep the IP68 rating intact.

Which component will most likely need replacement first on this CCD camera?

The 12 infrared LEDs that provide night illumination tend to dim after several years and are the first part to require replacement.

What limit appears first during continuous operation of the 1/3 CCD sensor?

The sensor's electronic shutter range of 1/60 to 1/100,000 seconds can be exceeded in very bright sunlight, causing temporary overexposure until lighting changes.
