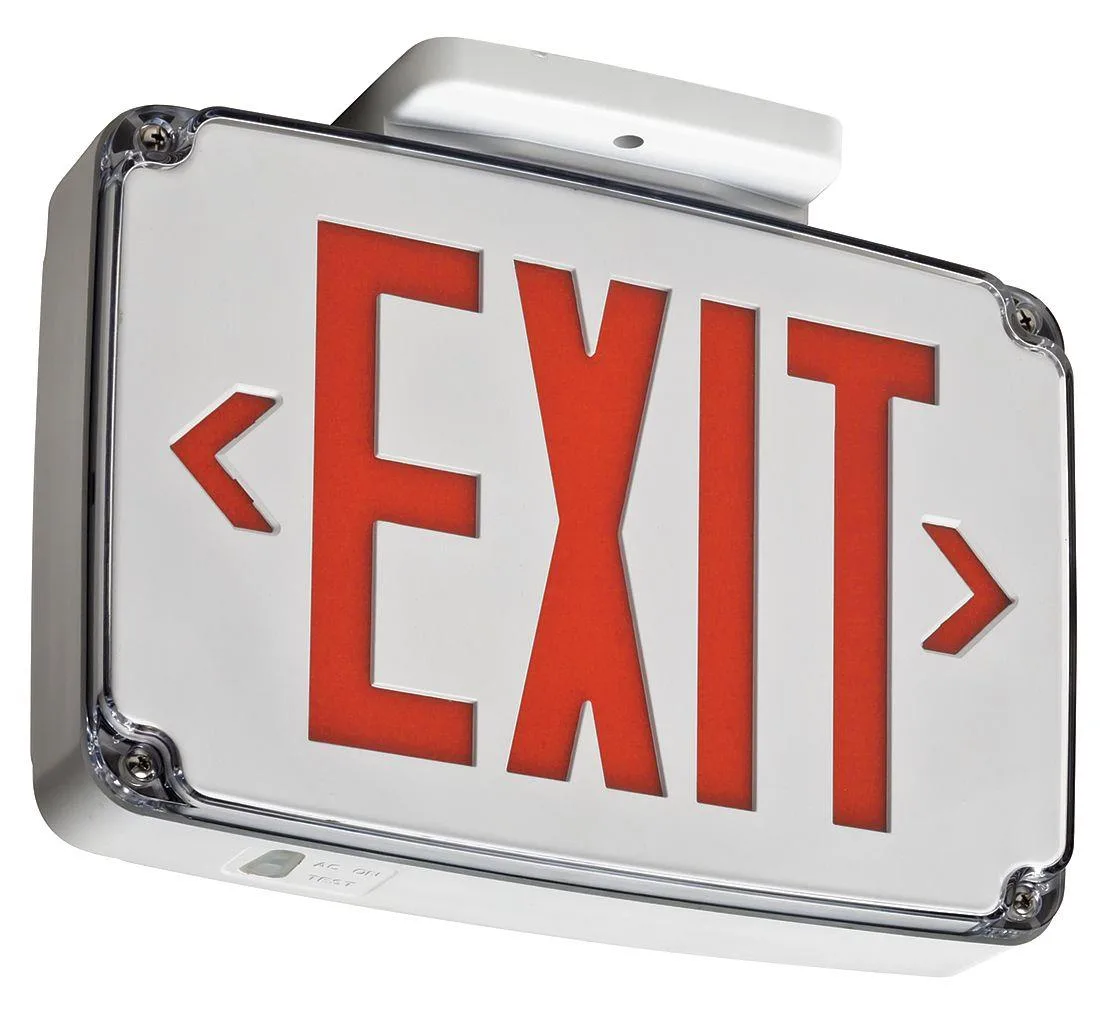

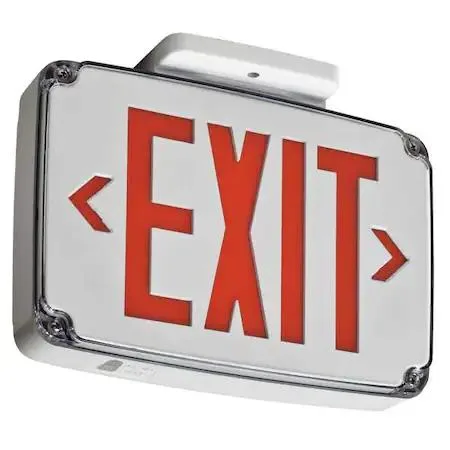

White thermoplastic LED exit sign with red letters, single face, universal chevrons, emergency battery backup

Acuity Lithonia

Acuity Lithonia WLTE W 1 R EL LED Exit Sign Light Kit

SKU CH-22SC-DSMH0

Thermoplastic LED exit sign with red lettering, universal chevrons, and nickel-cadmium battery backup for 120/277 V operation

  • Red exit lettering for clear emergency visibility
  • Single-face design with field-selectable directional chevrons
  • LED illumination with nickel-cadmium battery backup
  • White thermoplastic housing rated for 120/277 V operation
  • Zero lamp heads — dedicated exit signage only

Exit Sign Kit With Battery Backup

The Acuity Lithonia WLTE exit sign kit uses red LED letters on a single white thermoplastic face. Universal field-selectable chevrons let installers set the arrow direction on site. A nickel-cadmium battery provides emergency illumination when mains power fails. The unit operates on 120 or 277 volt supplies.

Thermoplastic Housing And Voltage Flexibility

The plastic housing is lightweight and corrosion-resistant for indoor mounting. Dual-voltage input means the same model works on standard commercial circuits without rewiring. No separate lamp heads are included so the kit stays compact. The white finish blends with typical ceiling and wall surfaces.

Limits Of Single-Face Emergency Signage

Only one viewing face is provided so the sign is visible from a single direction. The nickel-cadmium backup requires periodic testing and eventual replacement per local code. No additional lamp heads means the unit does not illuminate the egress path itself. Installers must verify local spacing requirements for standalone exit signs.

Highlights

  • Red exit lettering for clear emergency visibility
  • Single-face design with field-selectable directional chevrons
  • LED illumination with nickel-cadmium battery backup
  • White thermoplastic housing rated for 120/277 V operation
  • Zero lamp heads — dedicated exit signage only

Specifications

BrandLITHONIA LIGHTING

Questions about this item

What voltage range does the 120/277 V universal input actually support?

The sign operates on 120 V or 277 V AC supplies without any field adjustment.

What mounting hardware is required for the thermoplastic housing?

The white plastic housing includes a universal mounting canopy for surface installation on ceilings or walls.

How are the chevron directional indicators configured during installation?

The field-selectable chevron arrows are set by removing the appropriate knock-out tabs on the faceplate before mounting.
