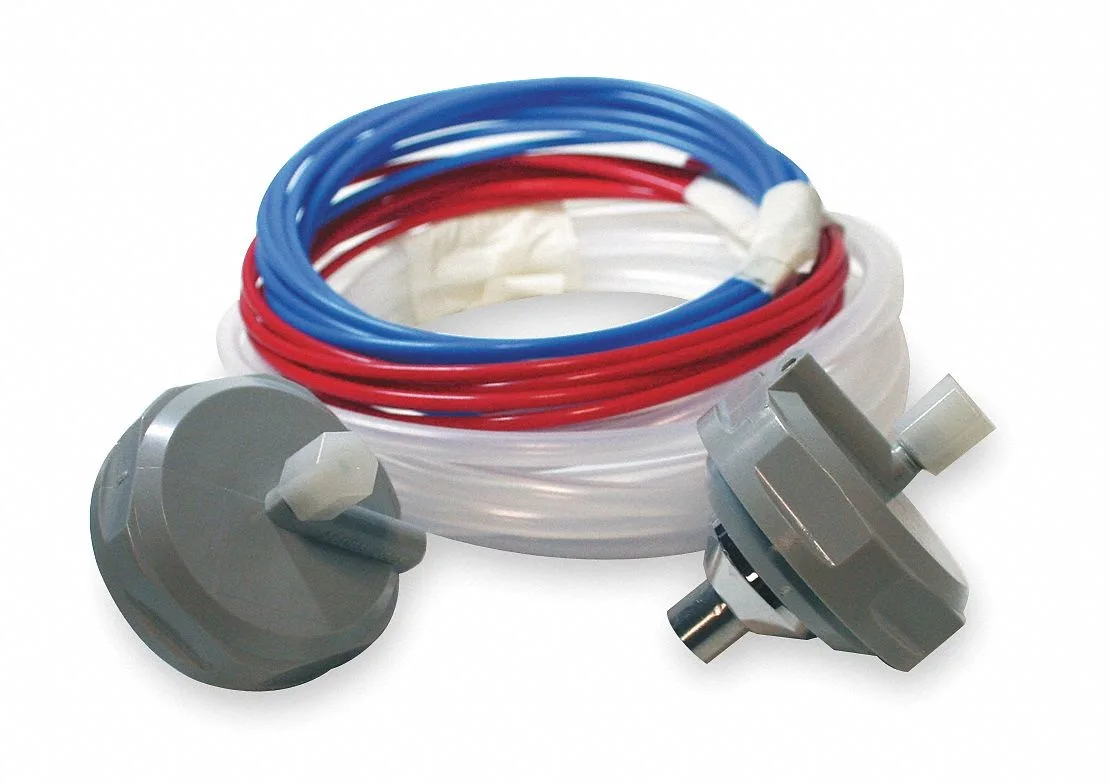

Acorn pushbutton and tubing assembly with red blue and clear poly tubes and nylon compression nuts

Acorn

Acorn 4016-100-001 Pushbutton and Tubing Assembly trap

SKU CH-0NJN-YB9DJ MPN 4016-100-001

Pushbutton and tubing assembly includes hot and cold back outlet pushbuttons with 10 ft of red, blue and clear poly tubing plus nylon compression nuts for lavatory and shower installations

  • TypeDrain Components
  • Complete drain control kit with pushbuttons and tubing
  • Hot and cold pushbuttons included for temperature selection
  • Red blue and clear poly tubing supplied for connections
  • Nylon compression nuts provided for secure fittings
  • Ten feet of tubing allows flexible installation routing

Pushbutton and Tubing Assembly

This Acorn 4016-100-001 assembly is a drain component for commercial plumbing fixtures. It supplies the pushbutton actuators and tubing needed to operate lavatory and shower valves.

Suits fixture repair, not new installs

Maintenance teams replacing worn pushbuttons and tubing on existing Acorn lavatories, showers or combination units will find the correct parts here. Installers fitting a brand-new rough-in or a different valve brand should look elsewhere because this kit only provides the trim and tubing portion.

Ten-foot tubing length decides fit

The kit includes ten feet of red, blue and clear poly tubing plus nylon compression nuts. If the distance between the pushbutton location and the valve exceeds that length, the tubing will not reach and a different supply must be sourced.

Highlights

  • Complete drain control kit with pushbuttons and tubing
  • Hot and cold pushbuttons included for temperature selection
  • Red blue and clear poly tubing supplied for connections
  • Nylon compression nuts provided for secure fittings
  • Ten feet of tubing allows flexible installation routing

Specifications

TypeDrain Components
BrandAcorn
Model4016-100-001

Questions about this item

How do I route the 10 ft. of 1/8 in. and 1/4 in. poly tubing from the pushbuttons to the trap without kinking?

Uncoil the red, blue and clear tubing fully, run each length in gentle curves and secure with the supplied nylon compression nuts; avoid sharp bends that flatten the 1/8 in. O.D. lines.

Which parts of the assembly will need replacement after extended use?

The pushbutton seals and the poly tubing are the wear items; keep spare 1/8 in. and 1/4 in. tubing and replacement buttons for lavatory or shower installations.

What is the first limitation that appears when the trap runs continuously in a high-traffic lavatory?

The 1/8 in. O.D. poly tubing restricts flow volume before the trap body does, so sustained heavy use will hit that tubing capacity limit first.
