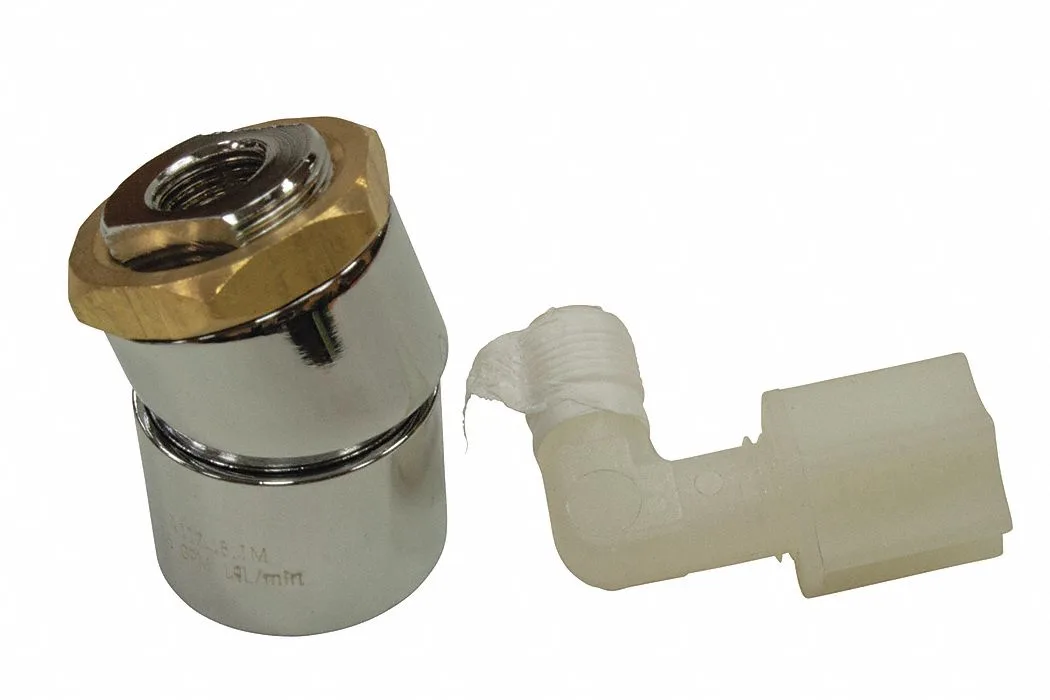

Brass nozzle assembly with 20 degree up-down elbow connection

Acorn

Acorn 2998-212-001 Nozzle Assembly 20° Up-Down Elbow

SKU CH-ZC1X-HXWFH

Brass nozzle assembly with 20-degree up-down elbow for Acorn stainless steel wash fountains

  • Type20 Degrees Angle w/Up-Down Elbow Conn.
  • Directs water flow with a 20-degree up-down elbow
  • Brass construction resists corrosion for long service life
  • Neoperl engineering ensures reliable nozzle performance
  • Compatible with multiple Acorn wash fountain series
  • Replaces Grainger part numbers 10A312 through 10A325

20° Up-Down Elbow Nozzle

The Acorn 2998-212-001 nozzle assembly directs water flow at a fixed 20-degree angle using an up-down elbow connection. It is built from brass with Neoperl components for use on Acorn stainless steel wash fountains. Facility managers specify this part when a fountain requires the factory-approved spray trajectory.

Replaces Grainger 10A312 through 10A325

This assembly matches Grainger part numbers 10A312, 10A313, 10A314, 10A315, 10A318, 10A319, 10A322, 10A323 and 10A325. It also fits Acorn models 3402-2-F-VPB-MXTP, 3402-2-SO-VPB-MXTP, 3424-ADA-1-SO-DV-VPB-MXTP, 3508-3-F-BO-DV-VPB-MXTP, 3508-3-SO-BO-DV-VPB-MXTP, 3544-2-F-DV-VPB-MXTP, 3544-2-SO-DV-VPB-MXTP, 3563-2-F-DV-VPB-MXTP and 3563-2-SO-DV-VPB-MXTP. The jump is worth it when the original nozzle shows mineral build-up, physical damage or an altered spray pattern that cleaning cannot restore.

Sustained high-traffic use

Brass construction resists corrosion from continuous public use and repeated cleaning cycles. The Neoperl internals maintain a consistent 20-degree flow angle without drift over long operating periods. Installations that demand a different spray angle or a non-Acorn fountain cannot use this assembly.

Highlights

  • Directs water flow with a 20-degree up-down elbow
  • Brass construction resists corrosion for long service life
  • Neoperl engineering ensures reliable nozzle performance
  • Compatible with multiple Acorn wash fountain series
  • Replaces Grainger part numbers 10A312 through 10A325

Specifications

BrandAcorn
Type20 Degrees Angle w/Up-Down Elbow Conn.

Questions about this item

What thread size does the 20-degree up-down elbow nozzle need to mount on an Acorn wash fountain?

The brass Neoperl nozzle assembly threads directly onto compatible Acorn wash fountain spouts; the 20-degree elbow angle aligns with the factory mounting pattern on the listed series.

Which step is most often missed when installing the 2998-212-001 nozzle assembly on a 3402 or 3544 series fountain?

Installers often forget to seat the Neoperl flow insert fully before tightening the brass elbow, which causes an off-centre spray pattern.

What part of the nozzle assembly will need replacement first on a high-traffic Acorn stainless steel wash fountain?

The Neoperl flow insert inside the brass elbow wears before the body; keep a spare insert to restore the 20-degree spray angle without removing the whole assembly.
