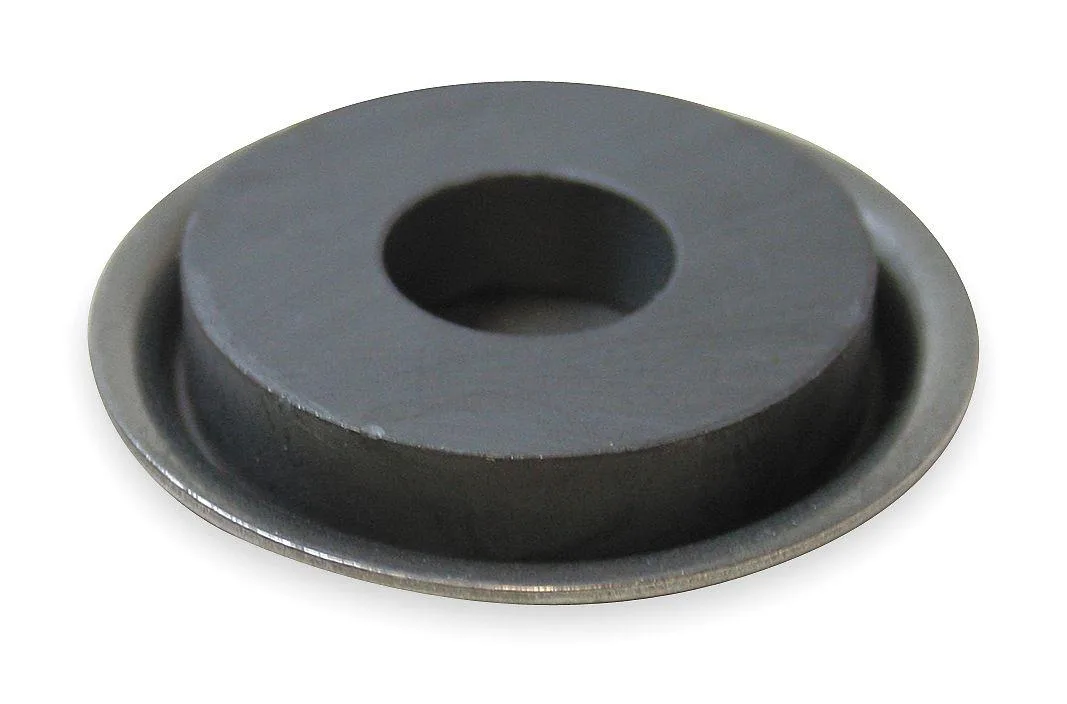

Acorn metering magnet cup assembly, plumbing component

Acorn

Acorn 2563-021-001 Metering Magnet Cup Assembly

SKU CH-94MX-4T3V8 MPN 2563-021-001

Metering magnet cup assembly for lavatories, showers and combination valves

  • TypeDrain Components
  • Metering control for lavatories and showers with Acorn 2563-021-001
  • Reliable drainage performance using magnet cup assembly design
  • Compatible with combination lavatory and toilet valves for versatile installs
  • New condition ensures full factory specification and clean operation
  • Brand Acorn Controls delivers proven plumbing component quality

Metering Magnet Cup Assembly

The Acorn 2563-021-001 is a metering magnet cup assembly designed for use with lavatories, showers, and combination lavatory and toilet valves. It serves as a replacement component for maintaining proper flow control in these specific plumbing fixtures. This part is intended for plumbers and facility managers servicing compatible Acorn Controls valve bodies.

Sustained flow regulation

The assembly regulates water delivery during continuous actuation cycles in commercial lavatory and shower applications. Its magnetic metering mechanism provides consistent timing performance across repeated uses without electronic controls. The component maintains calibration through extended operational periods in high-traffic restroom environments.

Installation and durability

The unit installs directly into compatible valve bodies without requiring external power connections or adjustments. Internal components resist mineral buildup from continuous water exposure in hard water conditions. No electrical consumption or noise generation occurs during normal metering operation.

Highlights

  • Metering control for lavatories and showers with Acorn 2563-021-001
  • Reliable drainage performance using magnet cup assembly design
  • Compatible with combination lavatory and toilet valves for versatile installs
  • New condition ensures full factory specification and clean operation
  • Brand Acorn Controls delivers proven plumbing component quality

Specifications

TypeDrain Components
BrandAcorn
Model2563-021-001

Questions about this item

Does the Acorn 2563-021-001 Metering Magnet Cup Assembly generate any noise or heat during continuous operation?

The Acorn 2563-021-001 Metering Magnet Cup Assembly is a passive drain component with no moving parts or electrical elements, so it produces no noise or heat when water flows through it all day.

What existing valve bodies or fittings must I already have for the Acorn 2563-021-001 Metering Magnet Cup Assembly to function?

This assembly is designed for use with Acorn lavatory, shower, and combination lavatory and toilet valves, so you need a compatible Acorn valve body installed to accept the metering magnet cup.

Will the Acorn 2563-021-001 Metering Magnet Cup Assembly work with older Acorn metering cartridges I currently have in service?

The 2563-021-001 magnet cup assembly fits the same valve bodies as earlier Acorn metering cartridges, allowing it to operate alongside existing hardware without modification.
