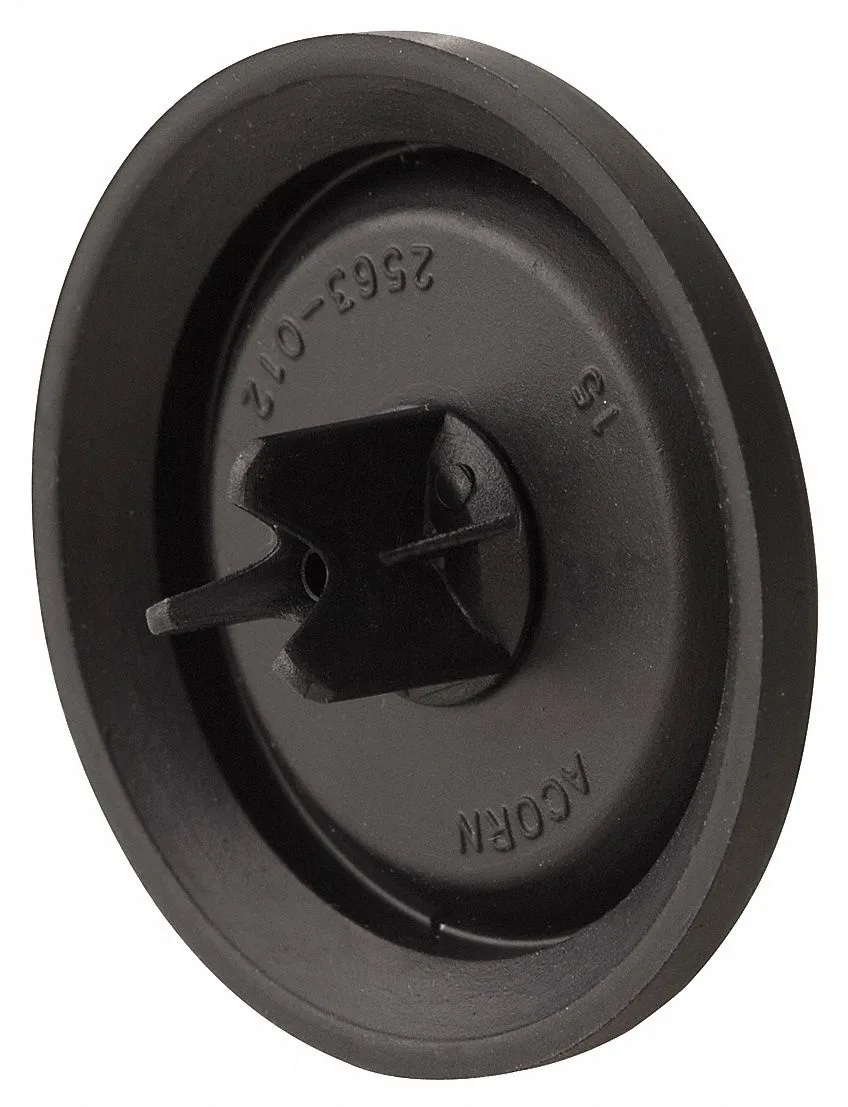

Acorn 2563-010-001 water diaphragm trap assembly

Acorn

Acorn 2563-010-001 water diaphragm trap

SKU CH-GMB5-DS88X MPN 2563-010-001

Water diaphragm trap regulates toilet drainage flow reliably

  • TypeDrain Components
  • Water diaphragm assembly ensures reliable toilet drainage
  • Genuine Acorn part matches original equipment specifications
  • Drain component designed for standard plumbing installations
  • New condition guarantees full operational life from installation

Toilet drain component

The Acorn 2563-010-001 is a water diaphragm assembly designed for toilet drainage systems. It functions as a replacement component within drain and trap installations. This new part addresses diaphragm wear or failure in compatible toilet fixtures.

Suited for toilet maintenance

This assembly suits plumbers or facility managers servicing toilets that use this specific diaphragm design. It is not for buyers who need a complete trap body or drain housing. Installers working on non-toilet drainage or different diaphragm specifications should look at something else.

Highlights

  • Water diaphragm assembly ensures reliable toilet drainage
  • Genuine Acorn part matches original equipment specifications
  • Drain component designed for standard plumbing installations
  • New condition guarantees full operational life from installation

Specifications

TypeDrain Components
BrandAcorn
Model2563-010-001

Questions about this item

What size pipe does the Acorn 2563-010-001 water diaphragm trap connect to?

The trap fits standard toilet drain connections used with Acorn 2563-010-001 assemblies.

How is the Acorn 2563-010-001 diaphragm installed, and what step is often missed?

Insert the diaphragm into the trap body, then secure the retaining ring fully; skipping the ring causes leaks.
