Compact silver cube mini PC with blue accent, matte textured finish, front power button and ports visible

ACEMAGIC

ACEMAGIC m5 i5-14500HX 32GB 1TB barebone mini PC

SKU CH-DS20-ZDVNA

Compact mini-PC with a 14-core Intel i5-14500HX, 32GB DDR4, 1TB NVME, triple 4K display outputs and WiFi 6

  • ColorBlue
  • CPU Typeintel i5 14500HX
  • CPU Socketintel i5 14500HX
  • North Bridgeintel
  • 14-core i5-14500HX reaches 4.9 GHz for demanding workloads
  • 32 GB DDR4 3200 dual-channel handles heavy multitasking
  • 1 TB NVMe PCIe 4.0 SSD plus second M.2 slot for storage growth
  • HDMI 2.0, DP1.4b and USB-C DP1.4 drive three 4K 60 Hz displays
  • WiFi 6, Bluetooth 5.2 and gigabit LAN keep connections fast and stable

ACEMAGIC m5 i5-14500HX barebone mini PC

The ACEMAGIC m5 is a compact barebone mini PC built around an Intel Core i5-14500HX processor with 14 cores and 20 threads reaching 4.9GHz. It ships with 32GB of DDR4 3200MT/s memory in dual-channel configuration and a 1TB M.2 2280 NVMe PCIe4.0 SSD. Windows 11 Pro comes pre-installed, making it ready for business workloads, multi-tasking professionals, or home users who need strong CPU performance in a 128.2mm square footprint.

Build quality and daily connectivity

The chassis uses silver ABS+PC with a surface spray coating measuring 44mm tall and employs an upgraded cooling system with dual centrifugal fans, two heat pipes and dual copper fins to sustain 55W performance. Ports include two USB3.2 Gen2 Type-A, four USB3.2 Gen1 Type-A, one USB3.2 Gen2 Type-C with DP1.4 and 15W power delivery, HDMI 2.0, DP1.4b, 1000Mbps RJ45 LAN, 3.5mm audio and a 5.5×2.1mm DC jack. WiFi 6 and Bluetooth 5.2 handle wireless duties, while the three video outputs drive three 4K@60Hz displays simultaneously.

Expansion path and upgrade value

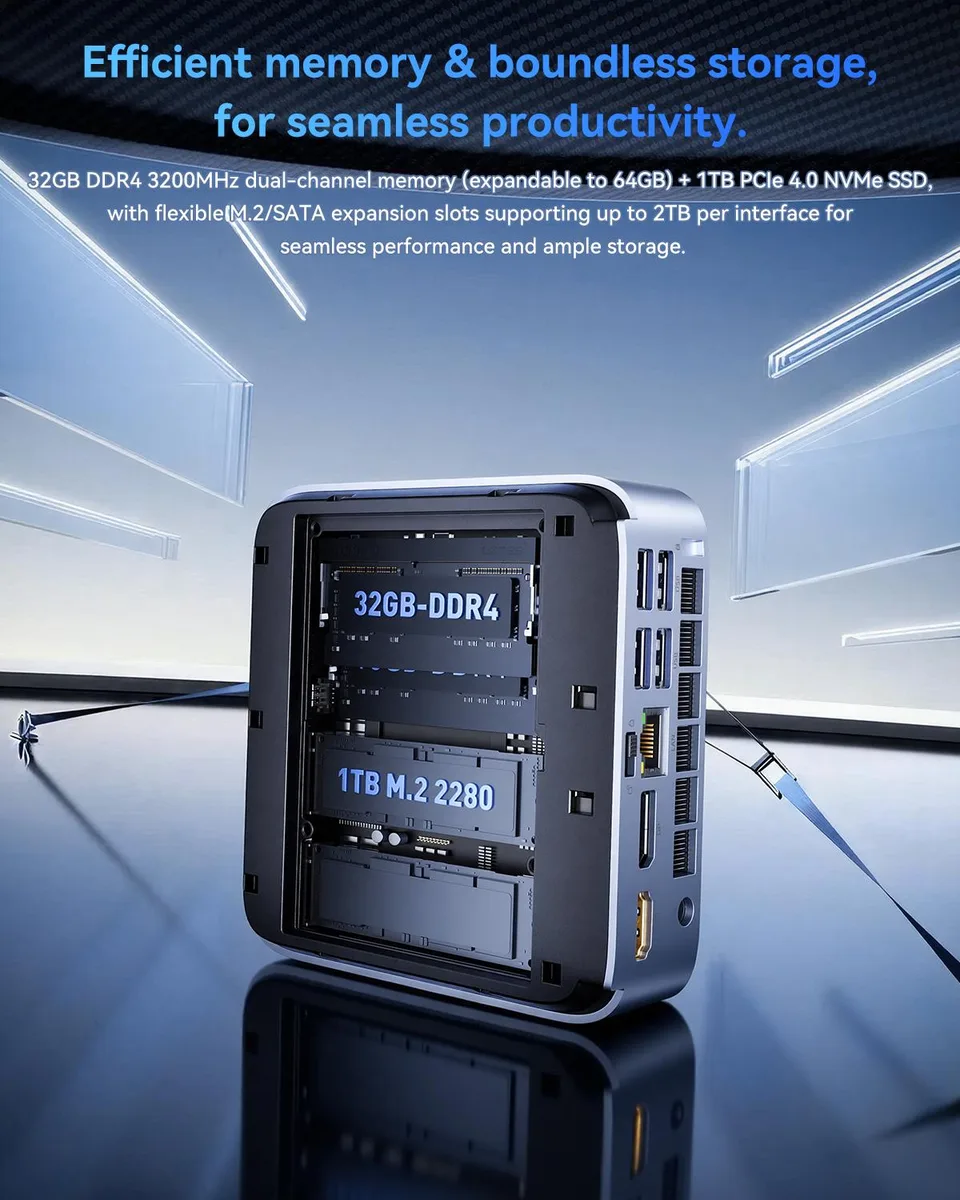

Two SODIMM slots support up to 64GB of DDR4 and two M.2 2280 slots accept up to 4TB total, with one slot taking SATA or NVMe and the other NVMe only. This replaces older mini PCs limited to single-channel memory, single storage bays or 1080p-only output. The jump is worth it when you need 14-core processing headroom, native triple 4K display support and tool-free access to both memory and storage without moving to a larger desktop form factor.

Highlights

  • 14-core i5-14500HX reaches 4.9 GHz for demanding workloads
  • 32 GB DDR4 3200 dual-channel handles heavy multitasking
  • 1 TB NVMe PCIe 4.0 SSD plus second M.2 slot for storage growth
  • HDMI 2.0, DP1.4b and USB-C DP1.4 drive three 4K 60 Hz displays
  • WiFi 6, Bluetooth 5.2 and gigabit LAN keep connections fast and stable

Specifications

BrandACEMAGIC
Seriesm5
Modelm5
ColorBlue
CPU Typeintel i5 14500HX
CPU Socketintel i5 14500HX
North Bridgeintel

Questions about this item

What bandwidth does the USB3.2 Gen2 Type-C port cap at for data?

The USB3.2 Gen2 Type-C port runs at 10Gbps for data and also carries DP1.4 video plus PD15W power.

What clearance does the 44 mm height and DC jack need?

The unit measures 128.2 × 128.2 × 44 mm and uses a 5.5 × 2.1 mm DC header; allow space above for the dual-fan exhaust and cable bend radius.

How is the 32GB DDR4 3200MT/s kit installed for dual-channel operation?

Both SODIMM slots are filled at the factory; to expand to 64GB replace the pair with matched modules — mixing capacities breaks dual-channel.
