Acasis
Acasis EC7352 2-bay SATA RAID drive enclosure 36TB
A two-bay SATA RAID enclosure that holds 2.5" and 3.5" drives up to 36 TB total, offers USB 3.0 at 5 Gbps, and provides JBOD, RAID 0, RAID 1 and SPAN modes with silent fan cooling
- Size2.5" & 3.5"
- TypeComputer Hardware
- HDD Count SupportedDual HDD
- Number of Bay2 Bay
- Maximum Capacity (per Bay)More than 16TB
- Power48W

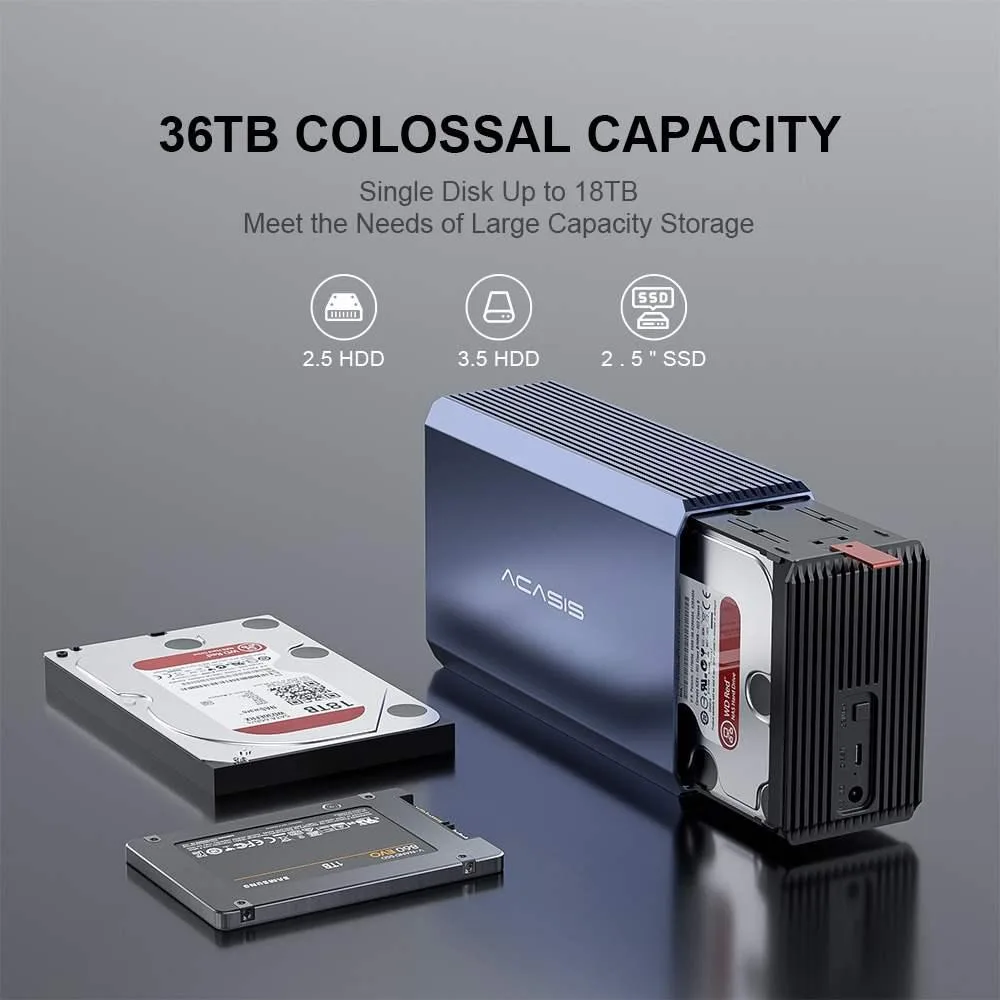

- Dual 2.5"/3.5" SATA bays support up to 36 TB total capacity

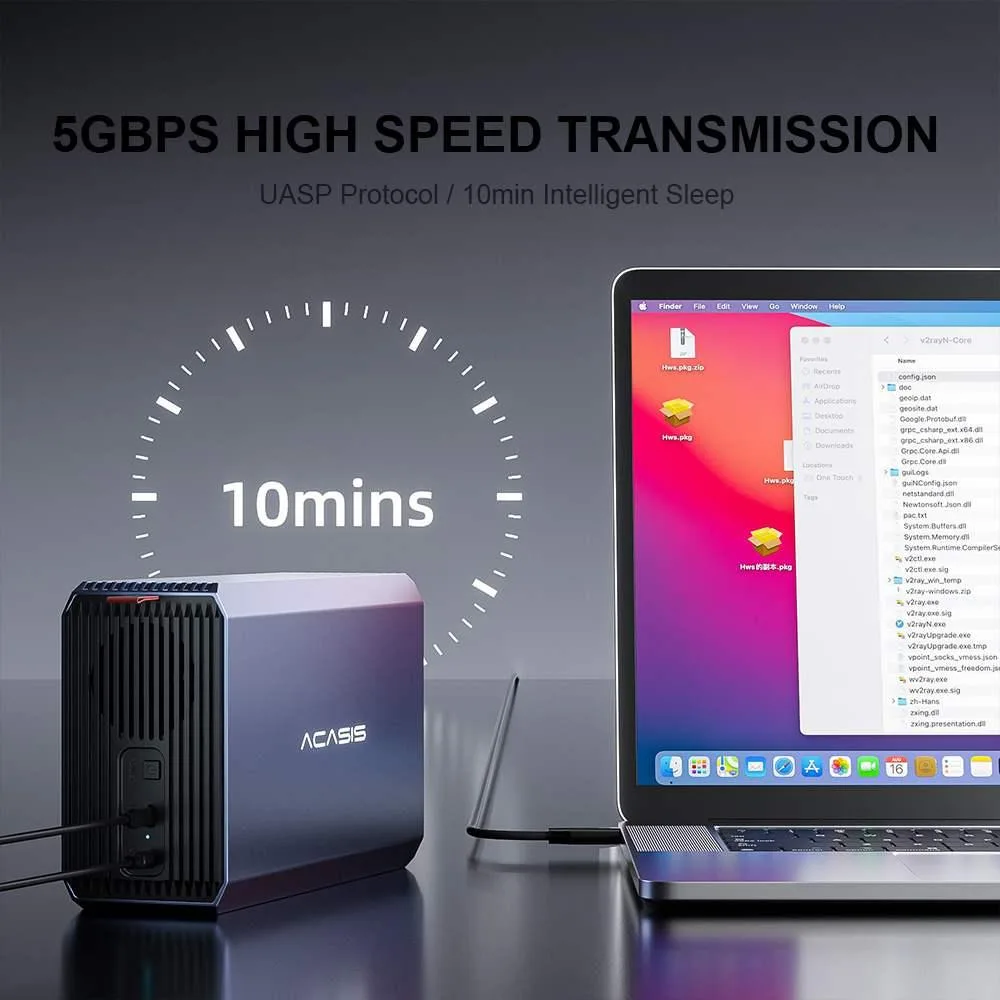

- JMS561 chip delivers up to 5 Gbps USB 3.0 transfer speeds
- Four RAID modes — RAID 0, RAID 1, SPAN, JBOD — selectable by hardware switch
- Full aluminium chassis with silent fan and vents keeps drives cool under load
- Plug-and-play on Windows, macOS and Linux with no driver installation required
Dual-bay SATA RAID enclosure up to 36TB
The Acasis EC7352 is a two-bay external array that accepts 2.5" or 3.5" SATA drives. It connects via USB 3.0 using a JMS561 chip and offers hardware RAID modes switched by a physical dial. The aluminium chassis includes a quiet fan for thermal management. It is aimed at users who want a single high-capacity volume or mirrored backup without a dedicated NAS.
Suits direct-attached storage.
This enclosure works well for local backups, media libraries or surveillance footage on Windows, Mac or Linux. Buyers who need network-attached access, more than two drives or hardware RAID 5/6 should look elsewhere. It also does not suit setups that require bus-powered operation, as a 48W external adapter is required.
Hardware RAID mode switch decides the volume layout
A four-position switch on the rear selects JBOD, RAID 0, RAID 1 or SPAN before the drives are powered on. This single setting determines whether capacity adds up to 36TB, mirrors for safety or spans across both bays. Changing the mode later requires reformatting, so choose the configuration that matches the workload from the start.
Highlights
- Dual 2.5"/3.5" SATA bays support up to 36 TB total capacity
- JMS561 chip delivers up to 5 Gbps USB 3.0 transfer speeds
- Four RAID modes — RAID 0, RAID 1, SPAN, JBOD — selectable by hardware switch
- Full aluminium chassis with silent fan and vents keeps drives cool under load
- Plug-and-play on Windows, macOS and Linux with no driver installation required
Specifications
| Brand | ACASIS |
|---|---|
| Size | 2.5" & 3.5" |
| Type | Computer Hardware |
| HDD Count Supported | Dual HDD |
| Number of Bay | 2 Bay |
| Maximum Capacity (per Bay) | More than 16TB |
| Power | 48W |
| Sports Team | Window/Mac/Linux |
Questions about this item
How do I install drives in the EC7352 and what step is often missed?
Insert each 2.5" or 3.5" SATA drive into a bay, secure it with the included mounting screws, connect the 12 V 48 W power adapter, then use the rear RAID-mode switch to select JBOD, RAID 0, RAID 1 or SPAN before powering on — the mode must be set before the first boot or the array will not build correctly.
What maintenance or replacement will the EC7352 need over time?
The built-in temperature-controlled fan is the only moving part; clean its intake vents periodically and replace the fan if it becomes noisy or stops spinning, otherwise the aluminium chassis and SATA drives themselves require no scheduled service.
What limit appears first during sustained heavy transfers on the EC7352?
The USB 3.0 5 Gbps interface caps continuous throughput well below the combined speed of two SATA drives, so the connection bottleneck shows up before drive or thermal limits during long sequential workloads.
