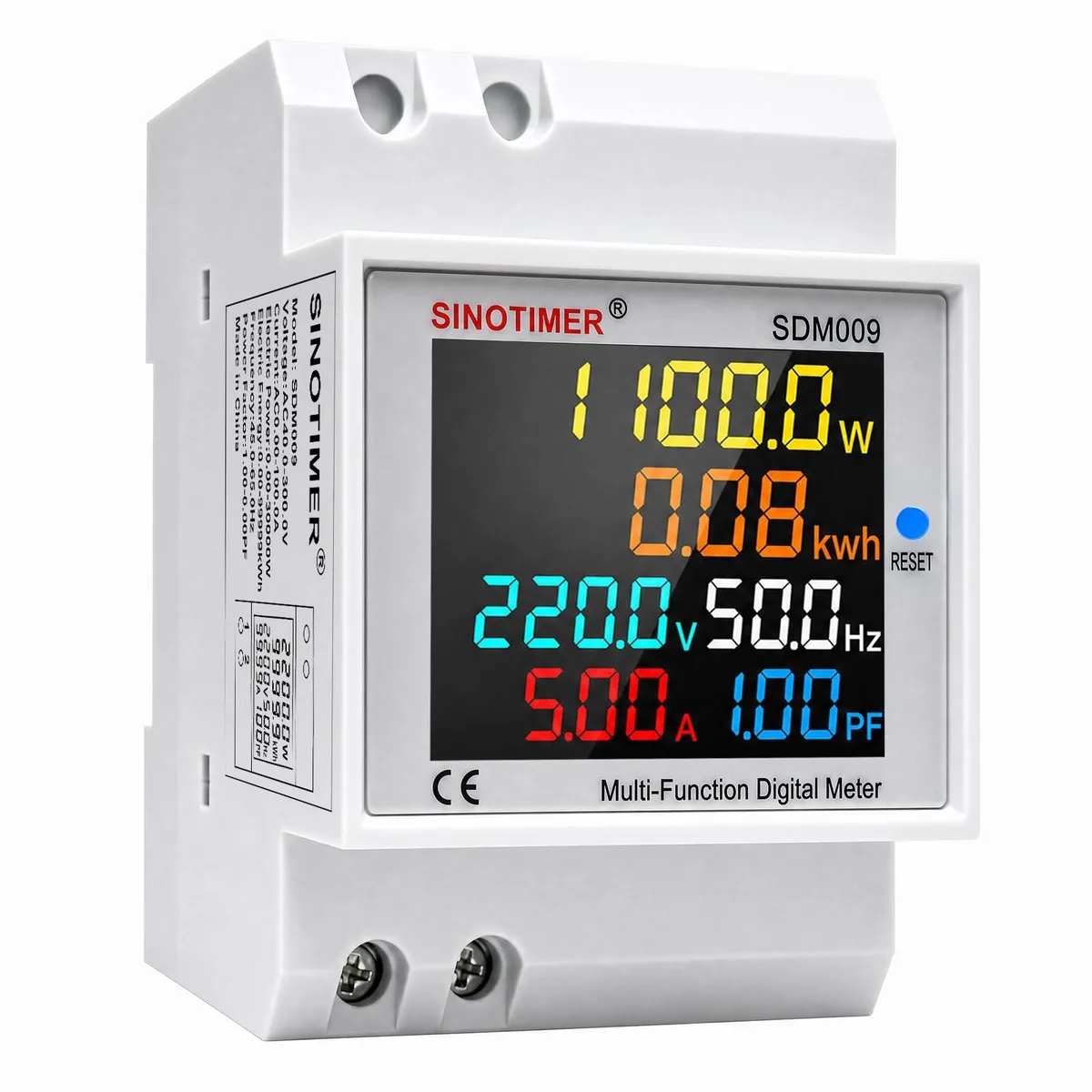

Compact DIN-rail energy meter with colour LCD display and reset button

6 in 1 Single Phase Energy Meter AC 40-300V 100A Din Rail 110V

SKU CH-K2TP-NQPNW

Single-phase energy meter measures AC 40-300V, 0-100A current, power to 30000W and energy to 99999kWh with built-in CT and 178° backlit LCD

  • FeaturesNo components, Corded Electric, false
  • Sports Team1 Piece
  • Monitors voltage from 40 to 300 V AC
  • Tracks current up to 100 A with built-in CT
  • Measures active power to 30 000 W and energy to 99 999 kWh
  • 178° colour LCD with backlight stays readable day and night
  • Data saved on power loss and resettable with 5-second button hold

Single-Phase Meter for Home & Industry

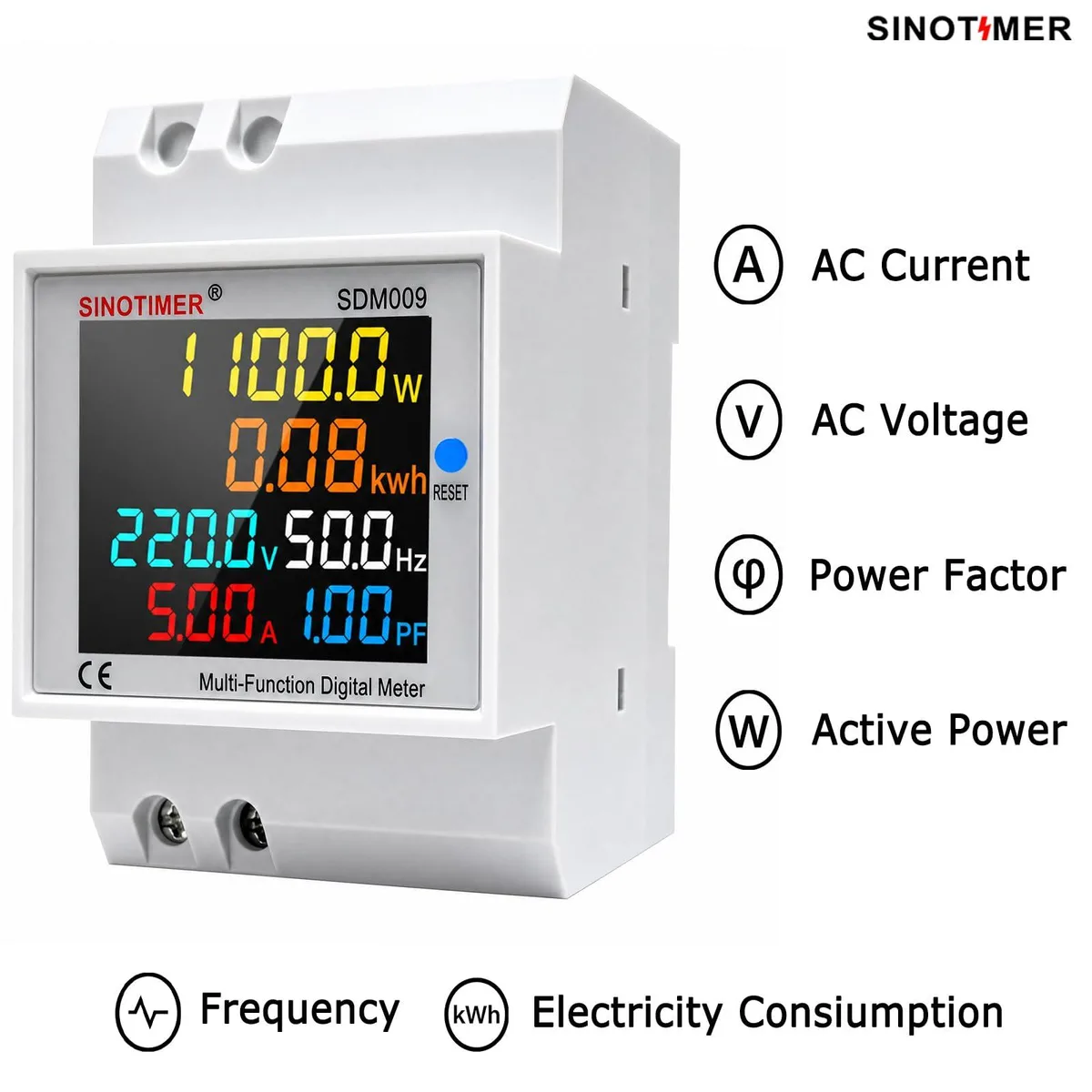

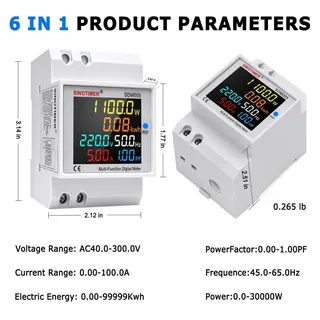

This 6-in-1 DIN-rail meter measures AC voltage from 40 to 300V and current up to 100A. It tracks active power to 30000W, energy to 99999kWh, frequency from 45 to 65Hz and power factor from .00 to 1.00PF. A built-in CT simplifies wiring and the unit stores consumption data when power is lost.

Suits Installers Needing One Compact Monitor

Electricians and facility managers who want voltage, current, power, energy, frequency and power factor in a single 110V module will find it practical. Buyers who require three-phase measurement, data logging with timestamps or communication protocols such as Modbus should look at something else.

Check Supply Voltage & DIN Space Before Ordering

Verify that the installation site provides a 110V AC supply for the meter itself. Confirm the distribution board has a free DIN-rail slot and that the conductors fit the meter’s current terminals. The colour LCD with 178° viewing angle works in bright or dark locations.

Highlights

  • Monitors voltage from 40 to 300 V AC
  • Tracks current up to 100 A with built-in CT
  • Measures active power to 30 000 W and energy to 99 999 kWh
  • 178° colour LCD with backlight stays readable day and night
  • Data saved on power loss and resettable with 5-second button hold

Specifications

BrandaFe Power
FeaturesNo components, Corded Electric, false
Sports Team1 Piece

Questions about this item

What voltage supply does the meter itself need to operate?

The meter runs from an AC 110 V supply, as shown in the product title.

Will the built-in CT handle the 100 A load on my existing single-phase circuit?

Yes, the current measuring range is 0–100 A, so the internal CT covers the full rated load.

How can I confirm the meter is logging energy correctly after installation?

Watch the kWh counter increase in real time; it stores data through power loss and only resets after a 5-second button hold.
