5 Core
5 Core MR 8 BLT R 4oHM 8 Inch Car Speaker Red Aluminium Bullet
An 8-inch mid-range car speaker delivering 250W RMS and 500W max power with 94 dB sensitivity and a 30 oz Y30 magnet
- TypeSpeaker
- Speaker Size8"
- FeaturesHIGH SENSITIVITY RATING HIGH-QUALITY VOICE COIL IRON BASKET
- High sensitivity of 94 dB produces louder sound with less power

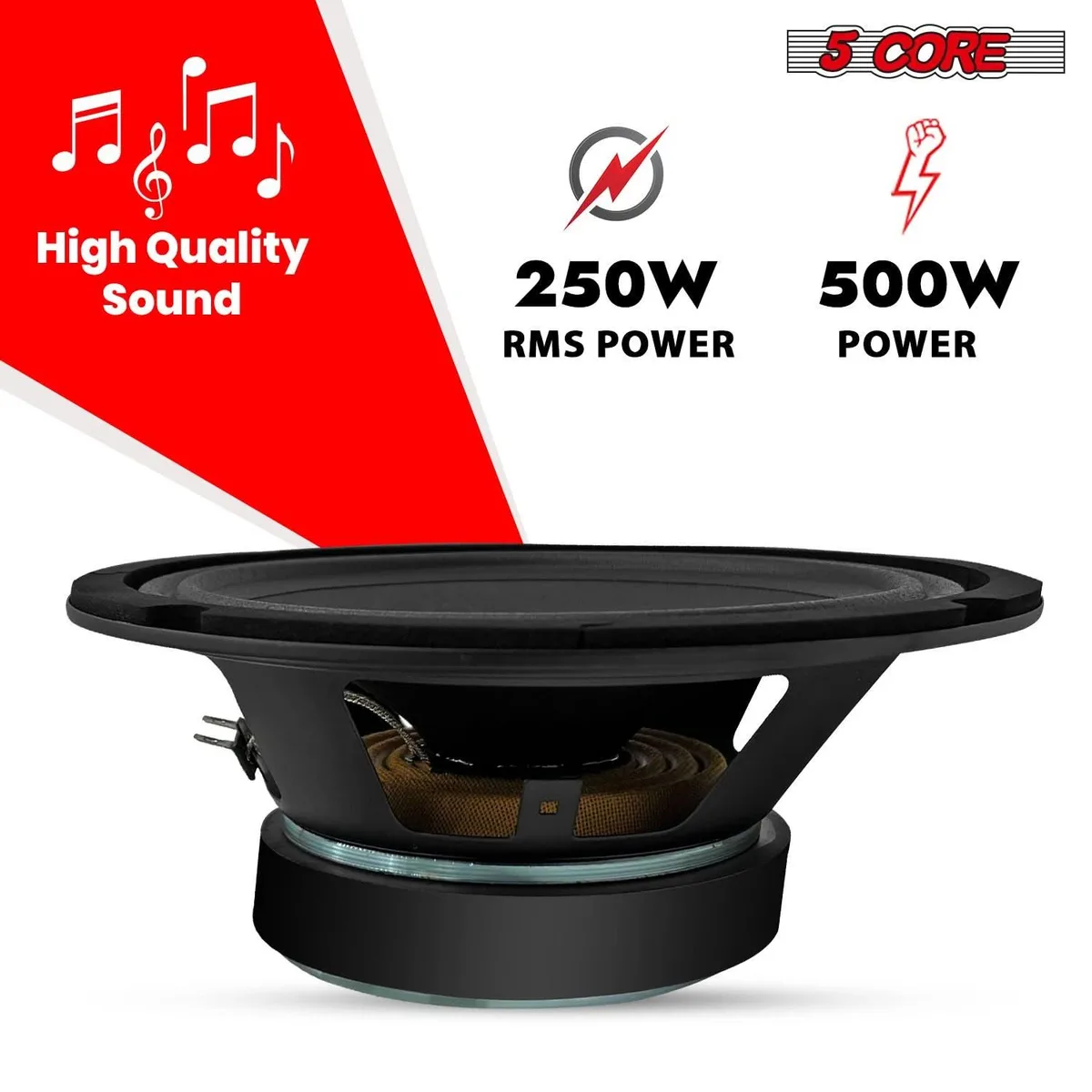

- 250 W RMS power handling delivers clear, balanced mid-range audio
- 5-inch KSV copper voice coil resists heat for reliable performance
- 30 oz Y30 magnet provides strong magnetic field for detailed sound
- 88 mm mounting depth fits standard 8-inch speaker openings without modifications
8 inch mid-range car speaker

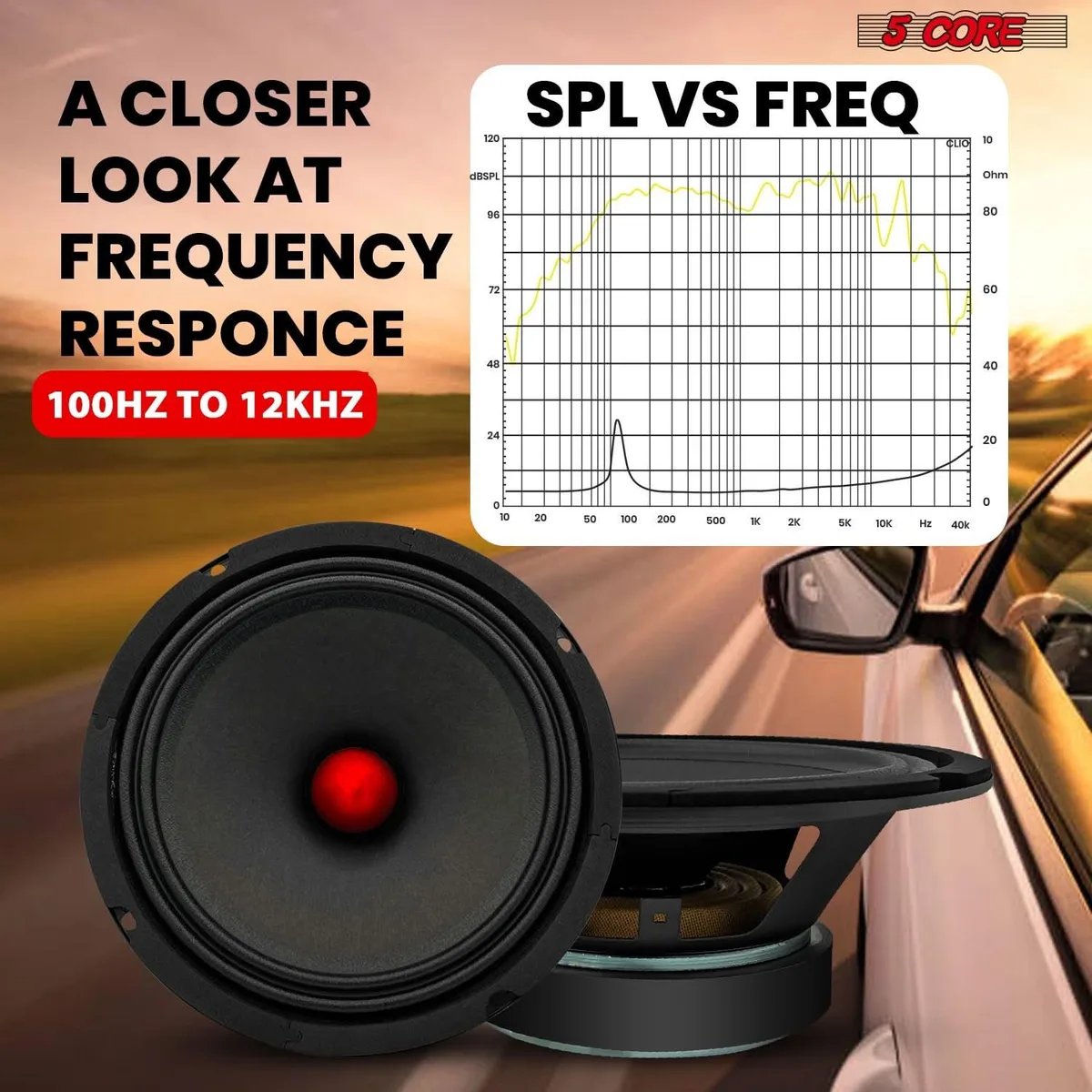

This new 5 Core driver is an 8 inch mid-range loudspeaker built for car or truck door installations. It handles 250 W RMS and 500 W maximum power with a 4 ohm impedance. The 30 oz Y30 magnet and 1.5 inch KSV copper voice coil support a 100 to 10 kHz frequency response and 94 dB sensitivity.
Suits single-driver upgrades.
Buyers replacing a factory mid-range driver in an 8 inch opening will find the standard mount depth of 88 mm and iron basket construction a direct fit. The aluminium bullet resonator and cloth-edge paper cone aim for clear vocal reproduction. Shoppers needing a separate tweeter, crossover network or subwoofer-level bass extension should look at a different product type.
Check mounting depth and amplifier match
Verify your door cavity provides at least 88 mm of clear depth behind the mounting plane. Confirm your amplifier or head unit is stable at 4 ohms and can deliver up to 250 W RMS per channel without clipping. Ensure the speaker wiring reaches the steel cardboard terminals and that the cut-out diameter matches an 8 inch frame.
Highlights
- High sensitivity of 94 dB produces louder sound with less power
- 250 W RMS power handling delivers clear, balanced mid-range audio
- 5-inch KSV copper voice coil resists heat for reliable performance
- 30 oz Y30 magnet provides strong magnetic field for detailed sound
- 88 mm mounting depth fits standard 8-inch speaker openings without modifications
Specifications
| Brand | 5 Core |
|---|---|
| Type | Speaker |
| Speaker Size | 8" |
| Model | MR 8 BLT R 4oHM |
| Part Number | MR 8 BLT R 4oHM |
| Features | HIGH SENSITIVITY RATING HIGH-QUALITY VOICE COIL IRON BASKET ALUMINUM BULLET The bocinas para carros de sonido feature 94 +/- 3 dB sensitivity. Produces louder sound with less power, offering an efficient audio solution. 1.5” KSV copper voice coil for improved sound quality and durability. Heat-resistant material keeps the driver cool even under intense use. Superior thermal properties, our car speaker sub woofer are designed to dissipate heat efficiently, preventing overheating and ensuring reliable performance. The built-in aluminum bullet resonator allows it to handle a wider frequ |
Questions about this item
What amplifier impedance must my system present for this 4 ohm speaker to work correctly?
Your amplifier or head unit must be stable into a 4 ohm load; the speaker's nominal impedance is 4 ohms so it draws the current the amp expects at that rating.
Will the 88 mm mounting depth fit the factory speaker opening I already have in my door?
The driver needs 88 mm of clear depth behind the mounting plane; measure your door cavity to confirm at least that much space before installing.
How can I verify the 94 dB sensitivity is being achieved once the speaker is wired up?
Apply a 100 Hz to 10 kHz pink-noise signal at 1 W input and measure SPL at 1 metre; a result close to 94 dB indicates the driver is performing to spec.
